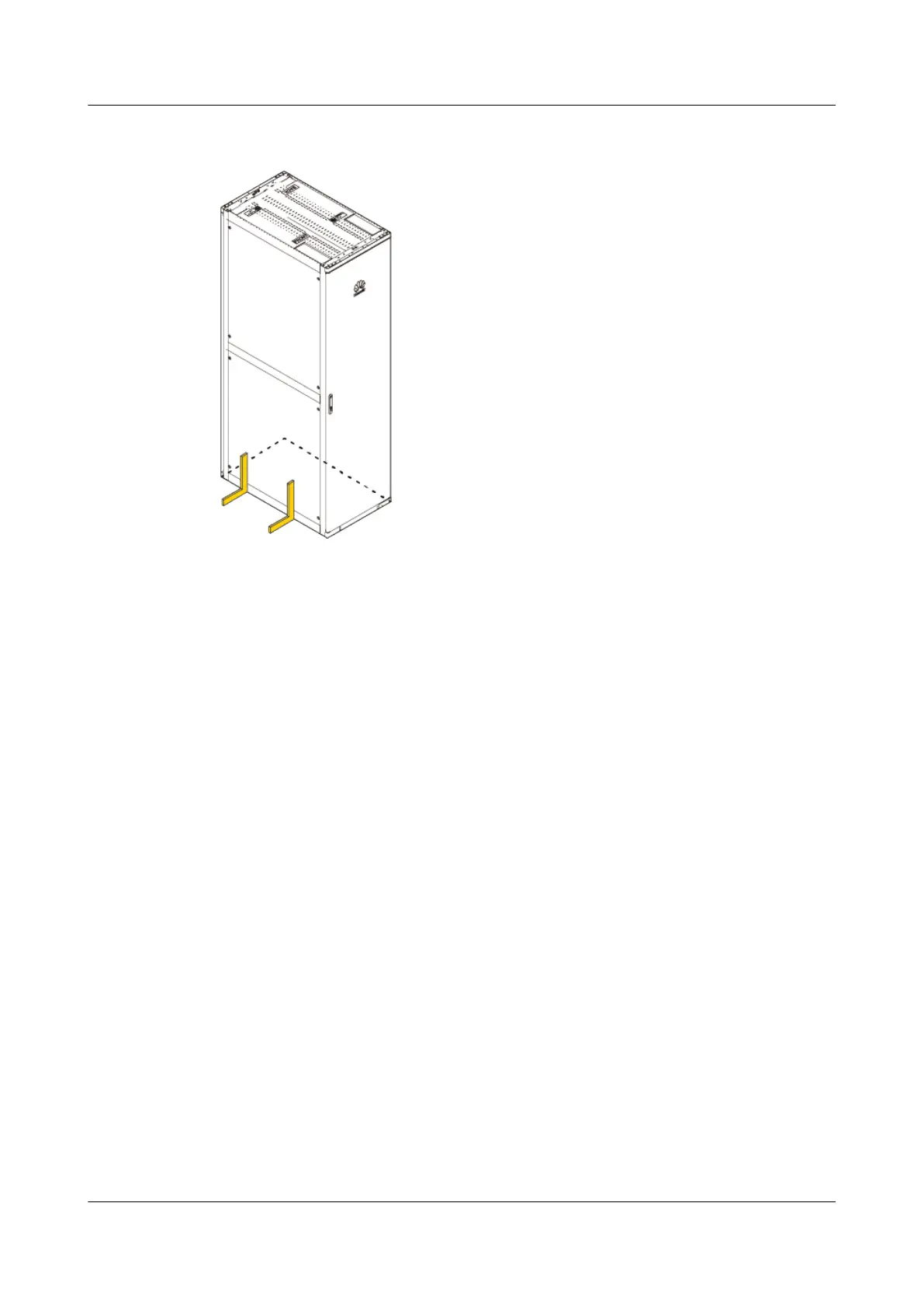

Figure 4-225 Placing the cabinet
Step 3 Take insulation washers from the expansion bolt package, and put them on the
four M12x115 bolts, as shown in Figure 4-226.
Step 4 Put the bolts into the expansion sleeves underground and tighten the bolts, as
shown in Figure 4-226. Do not tighten the bolts completely; leave some space.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 565
