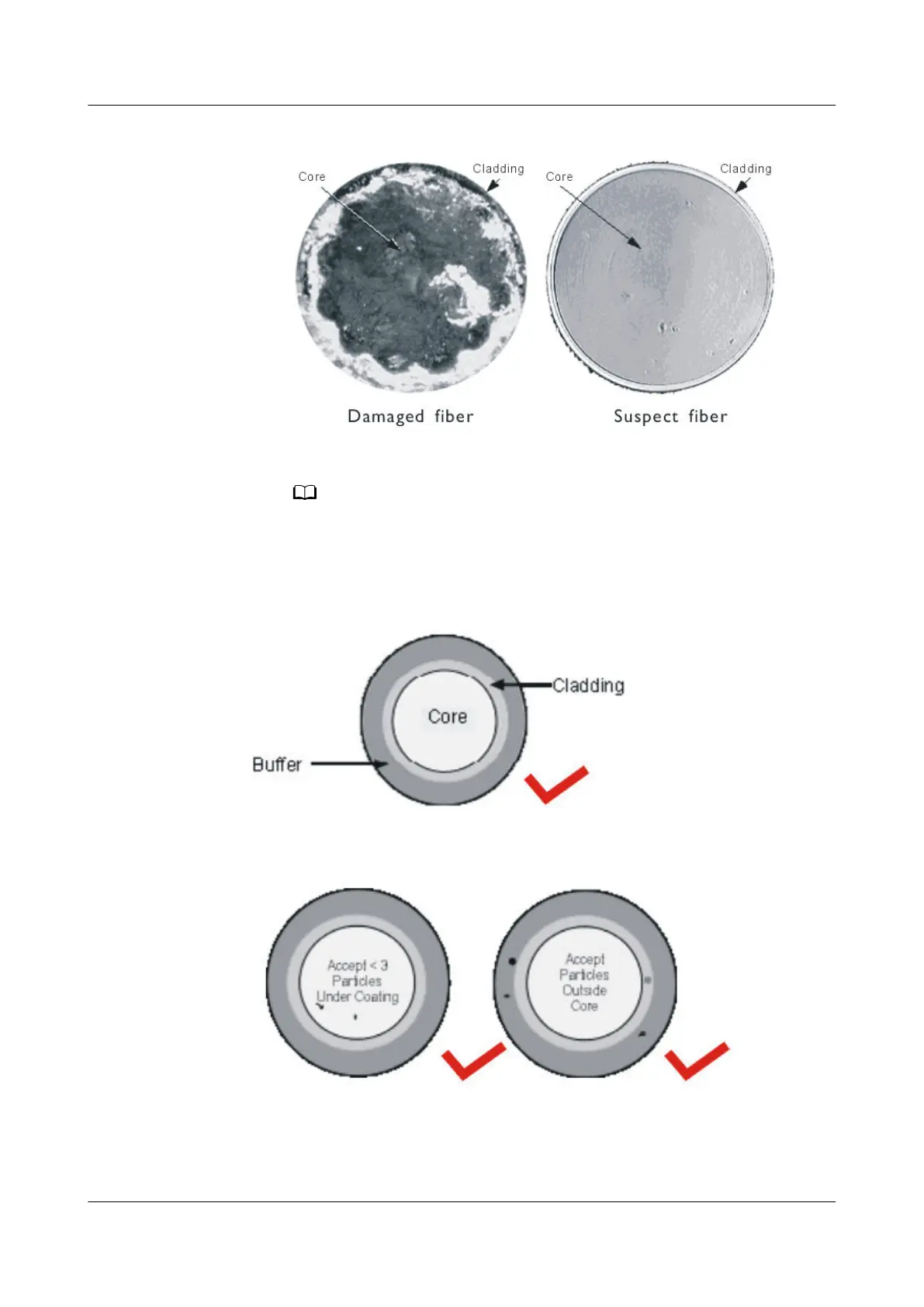

Figure 4-240 Damaged or defective ber end face
Figure 4-240 shows only the 800-micrometer ber cores.
For details on acceptable and unacceptable bers, see Figure 4-241, Figure
4-242 and Figure 4-243.
Figure 4-241 Clean
ber end face
Figure 4-242 Acceptable bers with imperfections
