Installing Power Cables
1. Route AC power cables along the cable ladder and lay them on the chassis.
2. Insert the AC power cable to the AC input port and secure it using the loose-
proof pinch as shown in Figure 4-257. Connect the other end of the AC power
cable to the PDF of the equipment room.

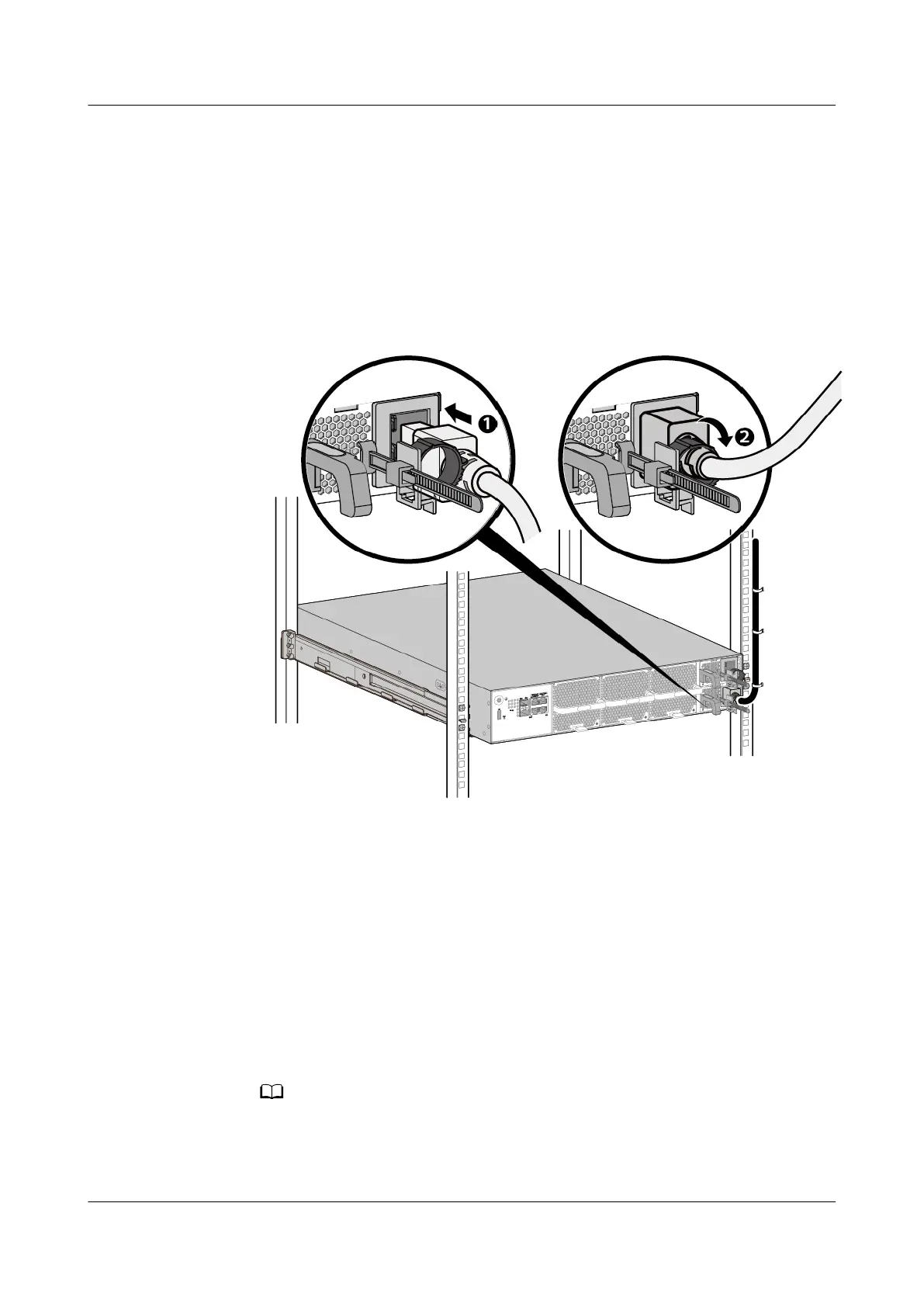

Figure 4-257 Installing the AC Power Cables
3. Use cable ties to bundle AC cables every 150 mm upwards from the bottom
and fasten the cables to the cable tray.
4. Attach permanent labels 20 mm from both ends of each AC power cable.
Instructions for Connecting the AC Power Cable to the Power Distribution
Box
1. Cut the PE ground wire (yellow-green wire) at the peeling place (wrap it with
insulation tape to prevent leakage or short circuit), peel the L wire (brown
wire) and N wire (blue wire) and crimp the OT terminal Or cold-pressed
terminal (terminal type is selected according to actual conditions).
The colors of AC power cables vary with countries and regions. Cables purchased at
local markets must comply with local rules and regulations.
