Huawei NetEngine 8000 F User Manual

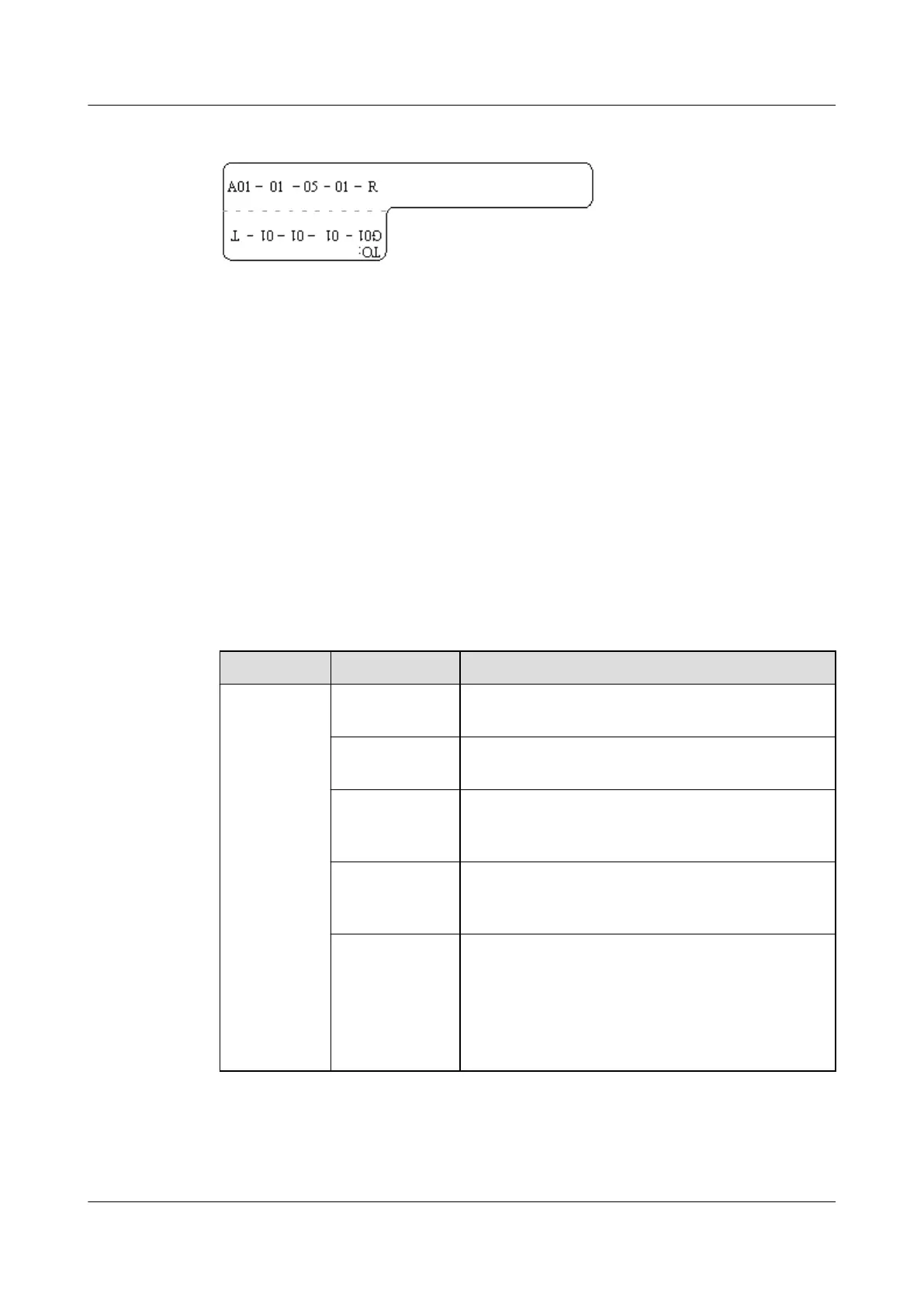

Figure 4-384 Sample label on an optical ber between two devices
The meaning of the label is listed in Figure 4-384.
● "A01-01-05-01-R" indicates that the local end of the optical
ber is connected
to the optical receiving interface 01 in slot 5, chassis 01 in the cabinet in row
A, column 01 in the machine room.
● "G01-01-01-01-T" indicates that the opposite end of the optical
ber is
connected with optical transmitting interface 01 in slot 01, chassis 01 in the
cabinet in row G, column 01 in the machine room.
Labels for the Optical Fibers Connecting the Device and an ODF
Meaning of the Labels
Table 4-85 shows information on both sides of labels attached to an optical
ber
between a device and an optical distribution frame (ODF).
Table 4-85 Information on labels axed to a ber between a device and an ODF
Content
Meaning Example
MN-B-C-D-
R/T
MN: cabinet
number
For example, A01.
B: chassis
number
Numbered in bottom-up order with two digits,
for example, 01.
C: physical slot
number
Numbered in top-down and left-right order
starting from 01. For example, 01 is the rst
slot at the top left of the chassis.
D: optical
interface
number.
Numbered in top-down and left-right order,
consistent with the port sequence number on
the device.
R: Optical
receiving
interface
T: optical
transmitting
interface
-
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 711
