face up, and the text on the labels in the same cabinet should be in the same
direction, as shown in Figure 4-389.

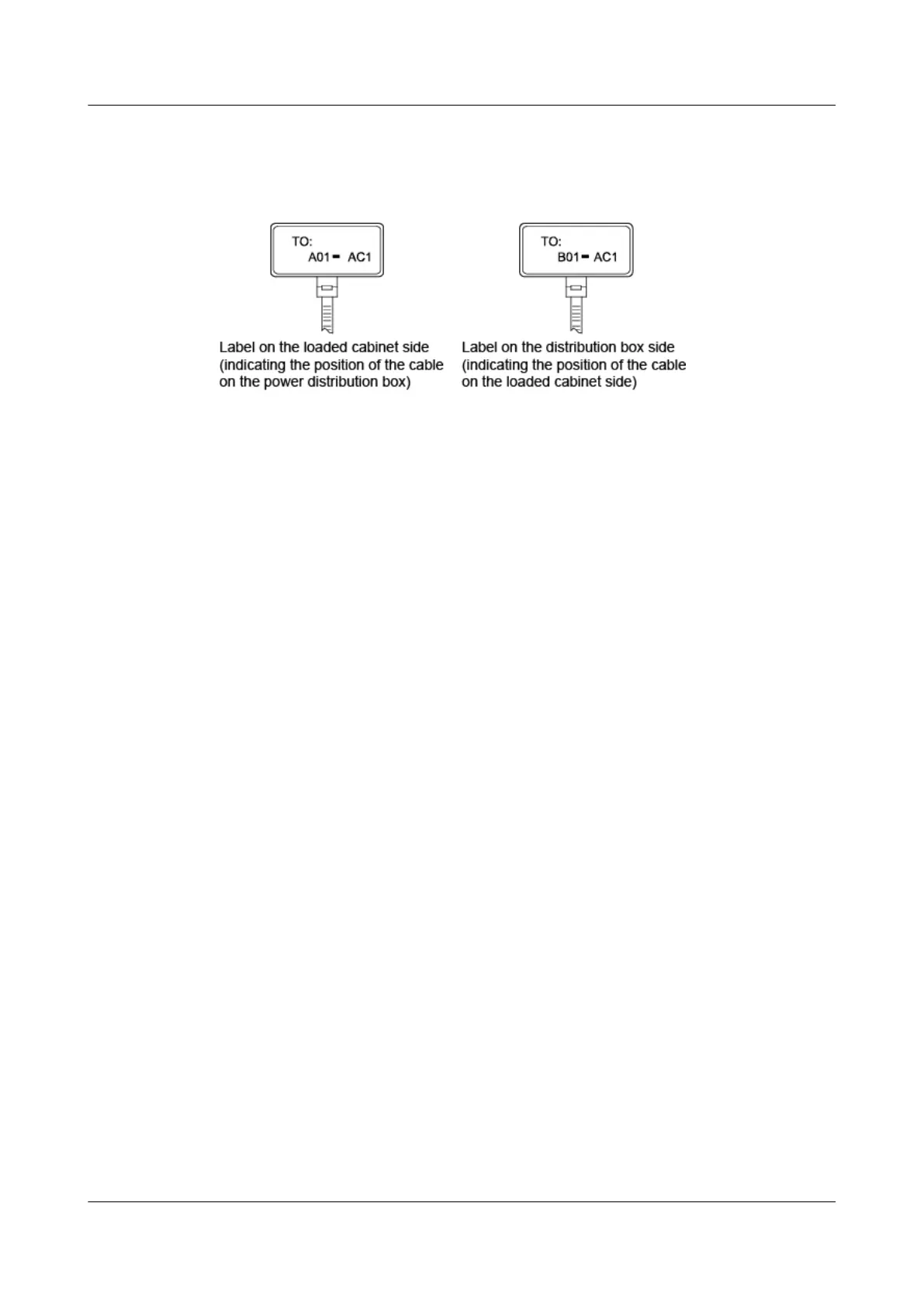

Figure 4-389 Labels for AC power cables
Meaning of the label in Figure 4-389.
● On the equipment cabinet side, the label marked "A01-AC1" indicates that
the power cable is connected to the
rst AC power socket of row A and
column 01 in the equipment room.
● On the power socket side, the label marked "B01-AC1" indicates that the
power cable is connected to the
rst AC power socket in the cabinet of row B
and column 01 in the equipment room.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 718
