5.2.3.3.1 6 kVA
Step 1 Switch o the upstream AC circuit breaker for the UPS.
Step 2 Remove the top cover from the connection box.

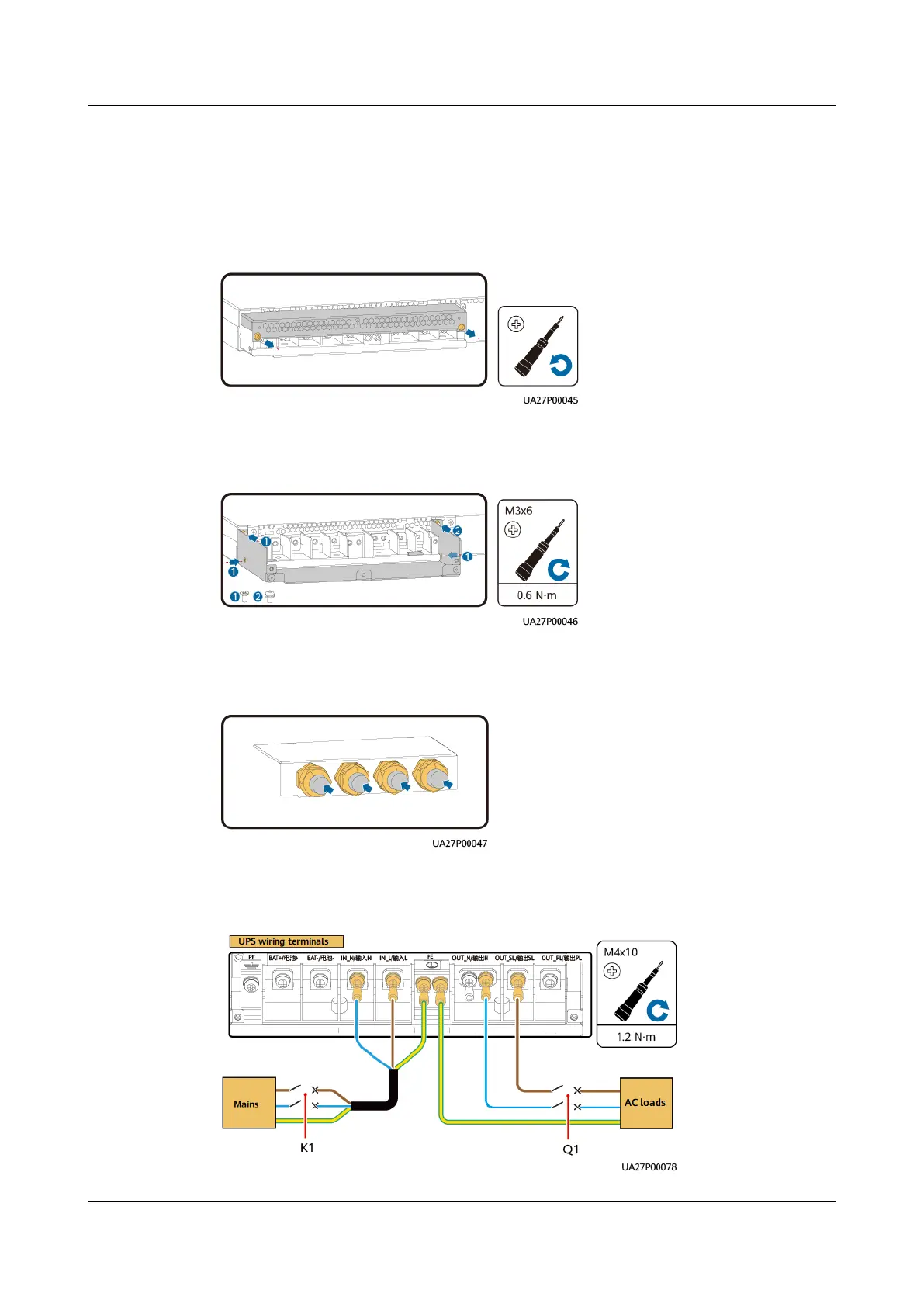

Figure 5-13 Removing the top cover from the connection box
Step 3 Install the lower shell of the PG box.
Figure 5-14 Installing the lower shell of the PG box
Step 4 Route the cable through the gland.
Figure 5-15 Routing the cable through the gland
Step 5 Install AC output power cables and then AC input power cables in sequence.
Figure 5-16 Installing AC power cables
UPS2000-H-(6 kVA-10 kVA)
User Manual 5 Installation and Cable Connection
Issue 03 (2023-08-20) Copyright © Huawei Digital Power Technologies Co., Ltd. 67
