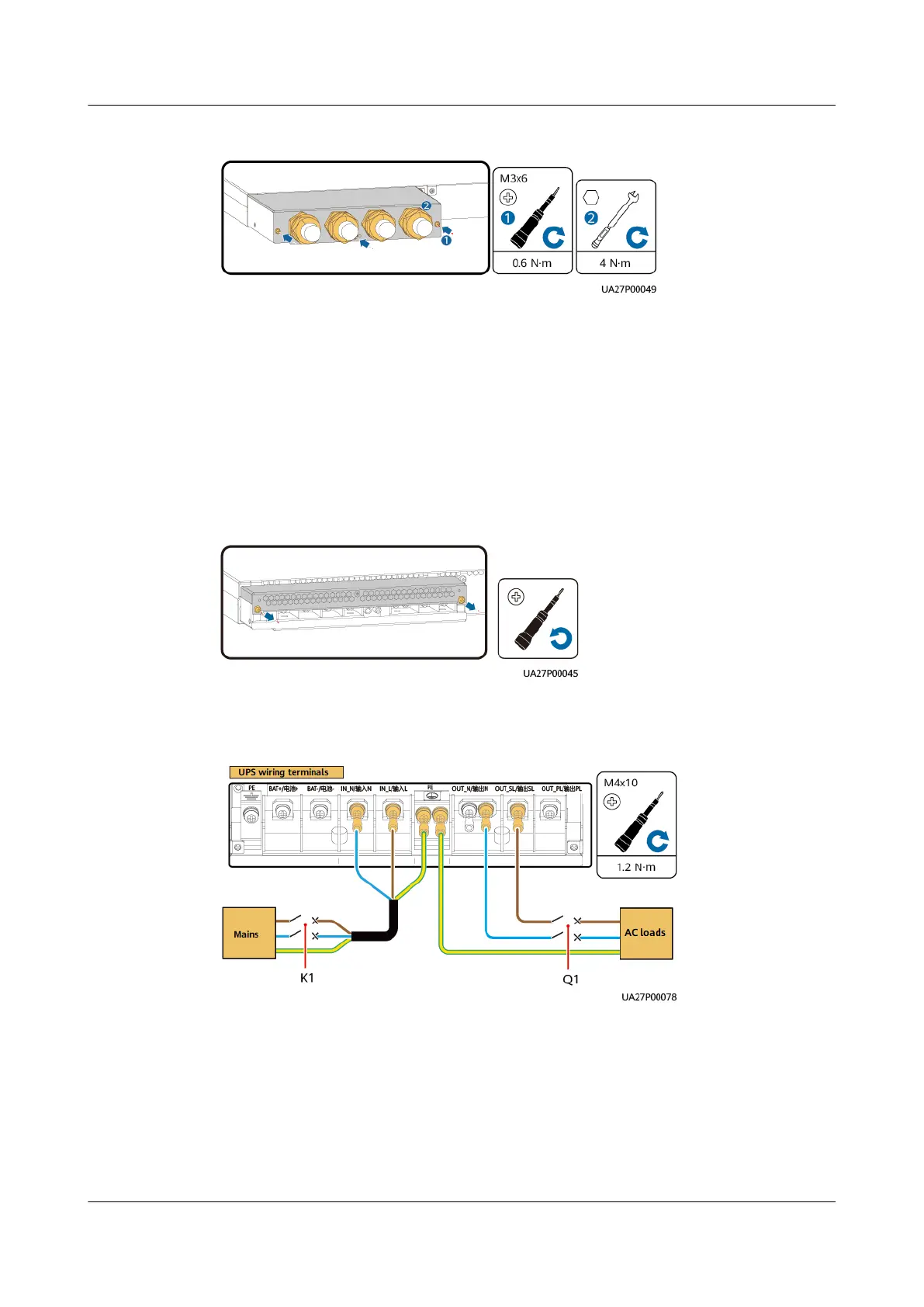

Figure 5-26 Reinstalling the PG box cover
----End
5.2.3.4 Installing AC Power Cables (Without a PG Connection Box)
5.2.3.4.1 6 kVA
Step 1 Switch o the upstream AC circuit breaker for the UPS.
Step 2 Remove the top cover from the connection box.
Figure 5-27 Removing the top cover from the connection box
Step 3 Install AC output power cables and then AC input power cables in sequence.
Figure 5-28 Installing AC power cables
Step 4 Install the top cover from the connection box.
UPS2000-H-(6 kVA-10 kVA)
User Manual 5 Installation and Cable Connection
