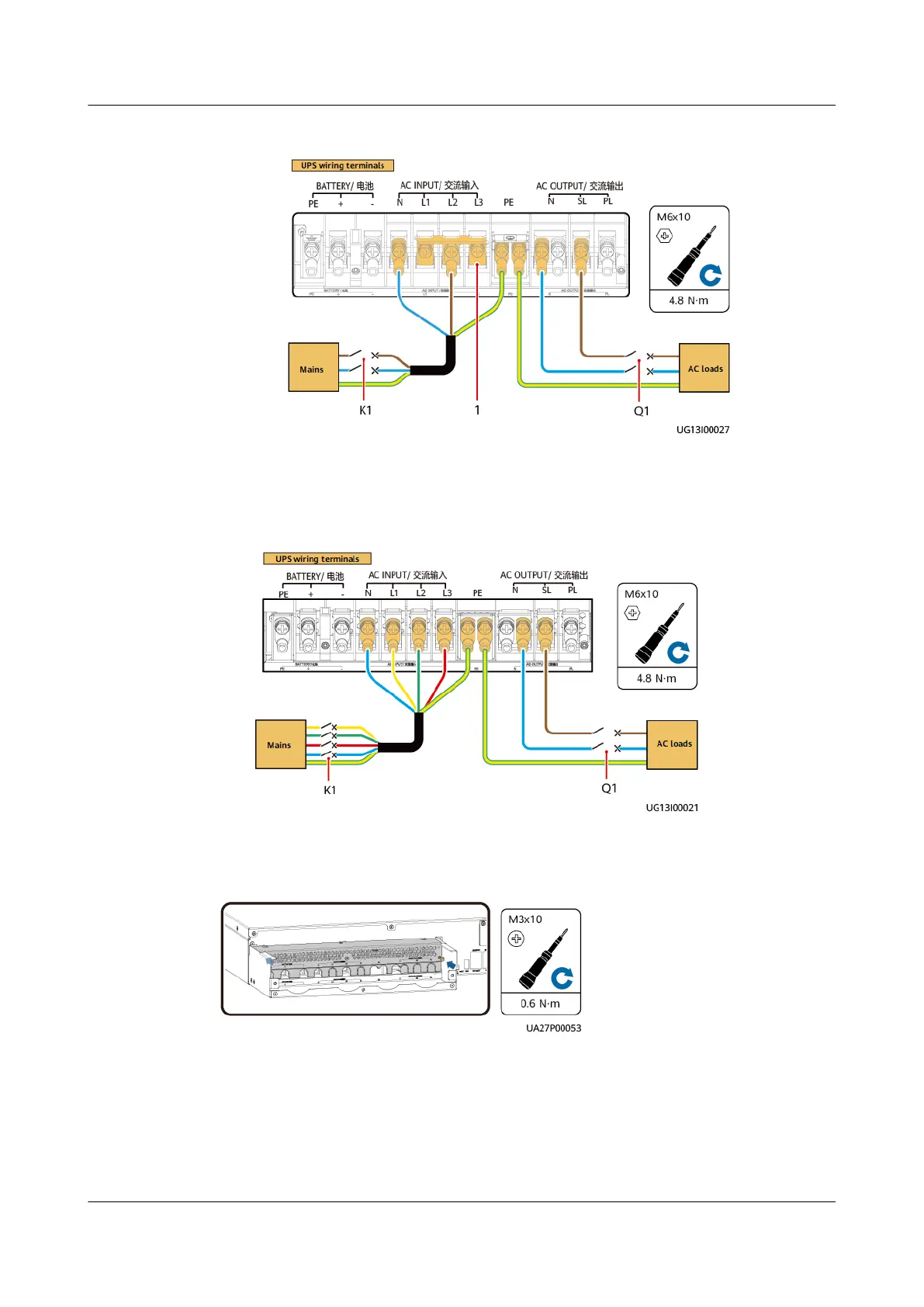

Figure 5-23 Installing AC power cables
(1) Short-circuit copper bar
● Three-phase input single-phase output
Figure 5-24 Installing AC power cables
Step 6 Install the top cover from the connection box.
Figure 5-25 Installing the top cover from the connection box
Step 7 Move the top cover of the PG box to the assembly position and tighten the PG
connector.
UPS2000-H-(6 kVA-10 kVA)
User Manual 5 Installation and Cable Connection
Issue 03 (2023-08-20) Copyright © Huawei Digital Power Technologies Co., Ltd. 70
