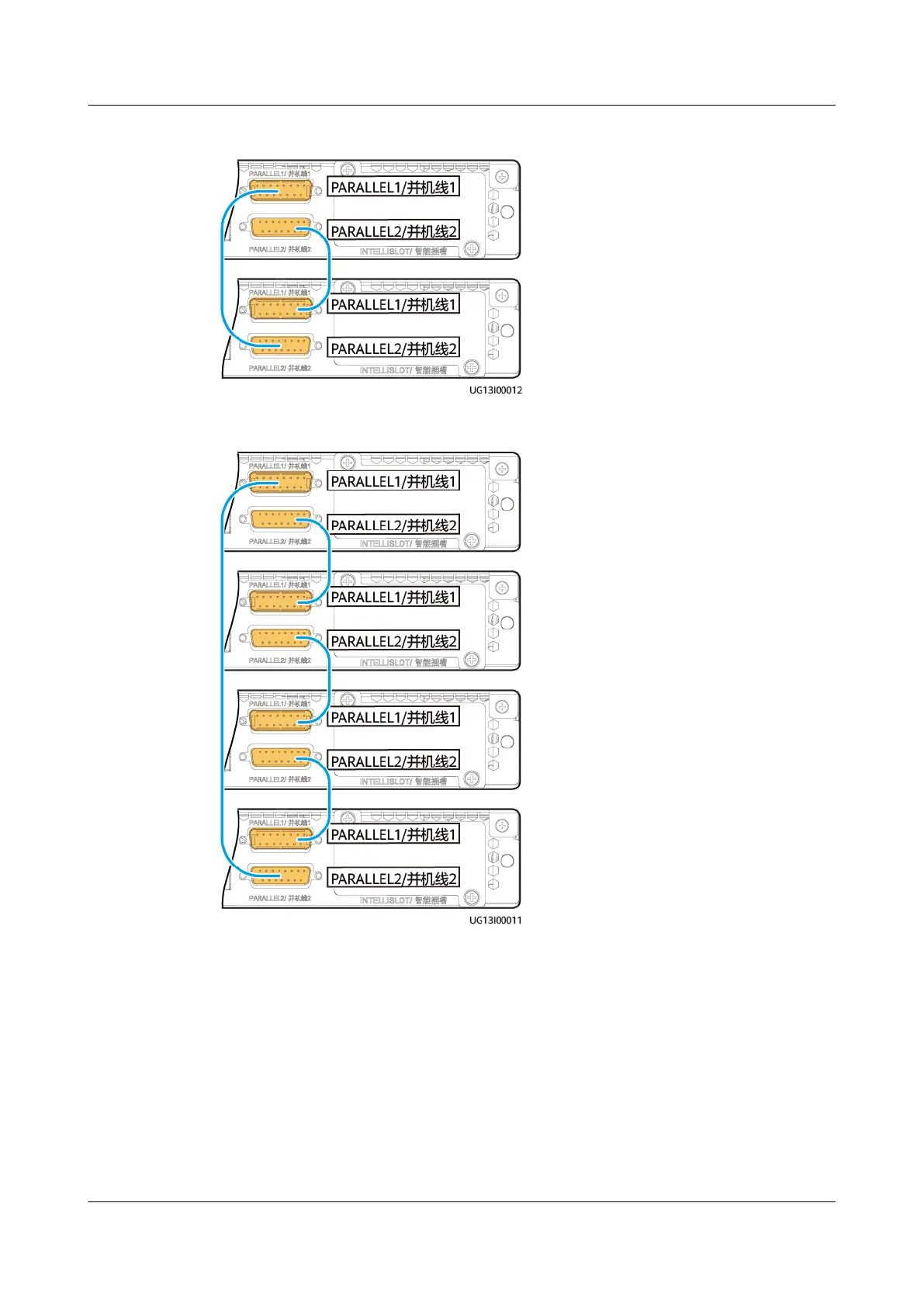

Figure 5-52 Installing communications cables (two parallel UPSs)

Figure 5-53 Installing communications cables (four parallel UPSs)

----End

5.4 Connecting a Backfeed Protection Device

UPS2000-H-(6 kVA-10 kVA)

User Manual 5 Installation and Cable Connection

About this Document3
