200 Intelligent Control Cards
Both series of cards plug into backplanes that are installed into the bays of the controller
mainframe (Figure 15-9). The cards manage the power being delivered to the heaters, the
thermocouple feedback and control and circuit protection.

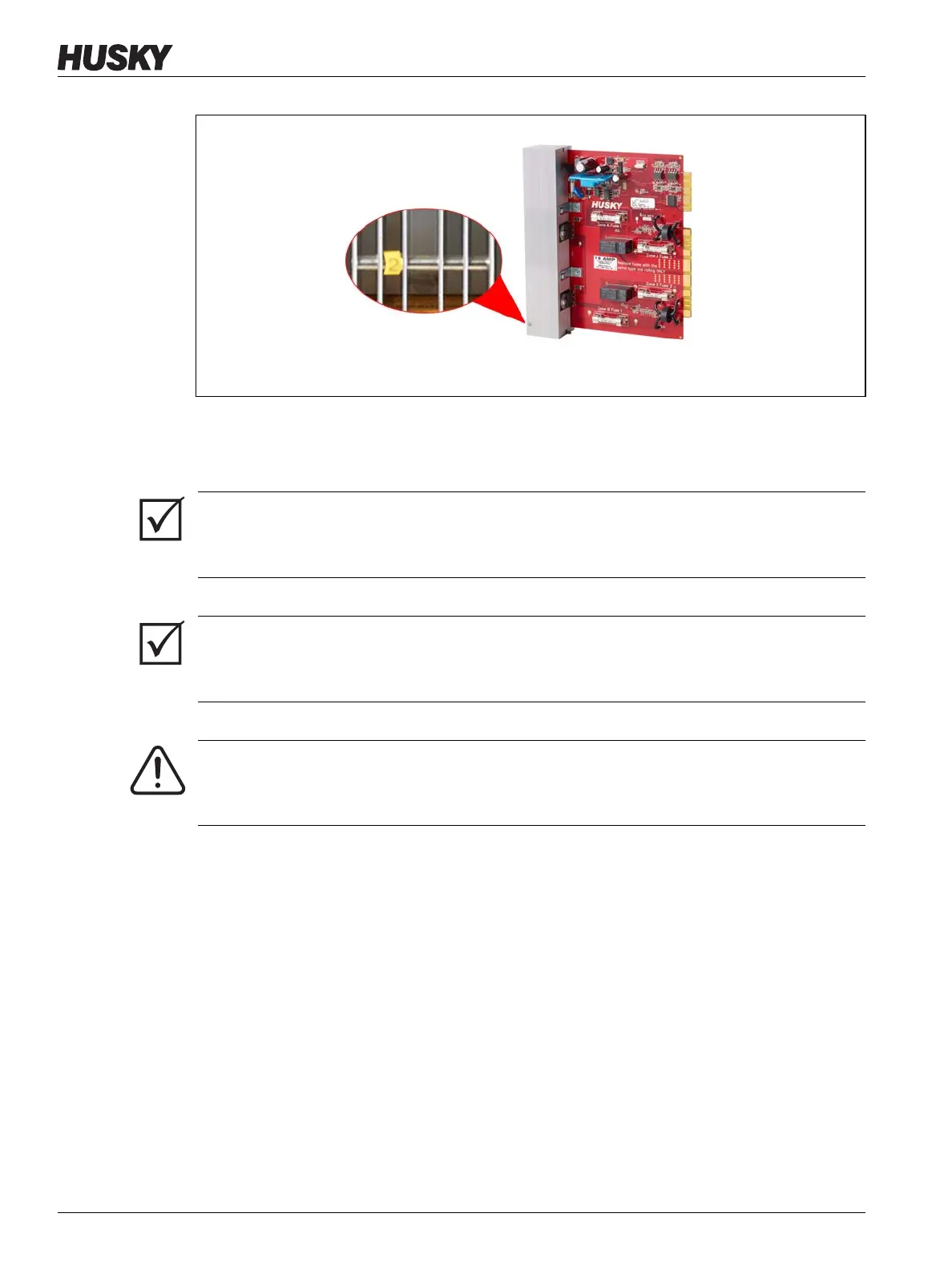

Figure 15-8 H-Series Intelligent Control Card
IMPORTANT!
ICC
2
and ICC
3
cards almost look the same, but they use different backplanes and are not
compatible with each other.
IMPORTANT!
An Intelligent Control Card must be installed in the position labeled “1” in all card cages for
the system to function correctly.
WARNING!
Hazardous voltages– risk of death or serious injury. Before servicing the Altanium unit,
lock out and tag the Altanium Main Power switch in accordance with local codes.
