150 Mold Picture View Toolbar
11.2 Mold Picture View Toolbar
Use the Mold Picture View toolbar to change the view of the mold picture view graphic. To
hide or show the Mold Picture View toolbar, touch the screen.
NOTE: The Mold Picture View toolbar is not available in Edit mode.
The items in the Mold Picture View toolbar are identified in Figure 11-3 and described in
Table 11-1.

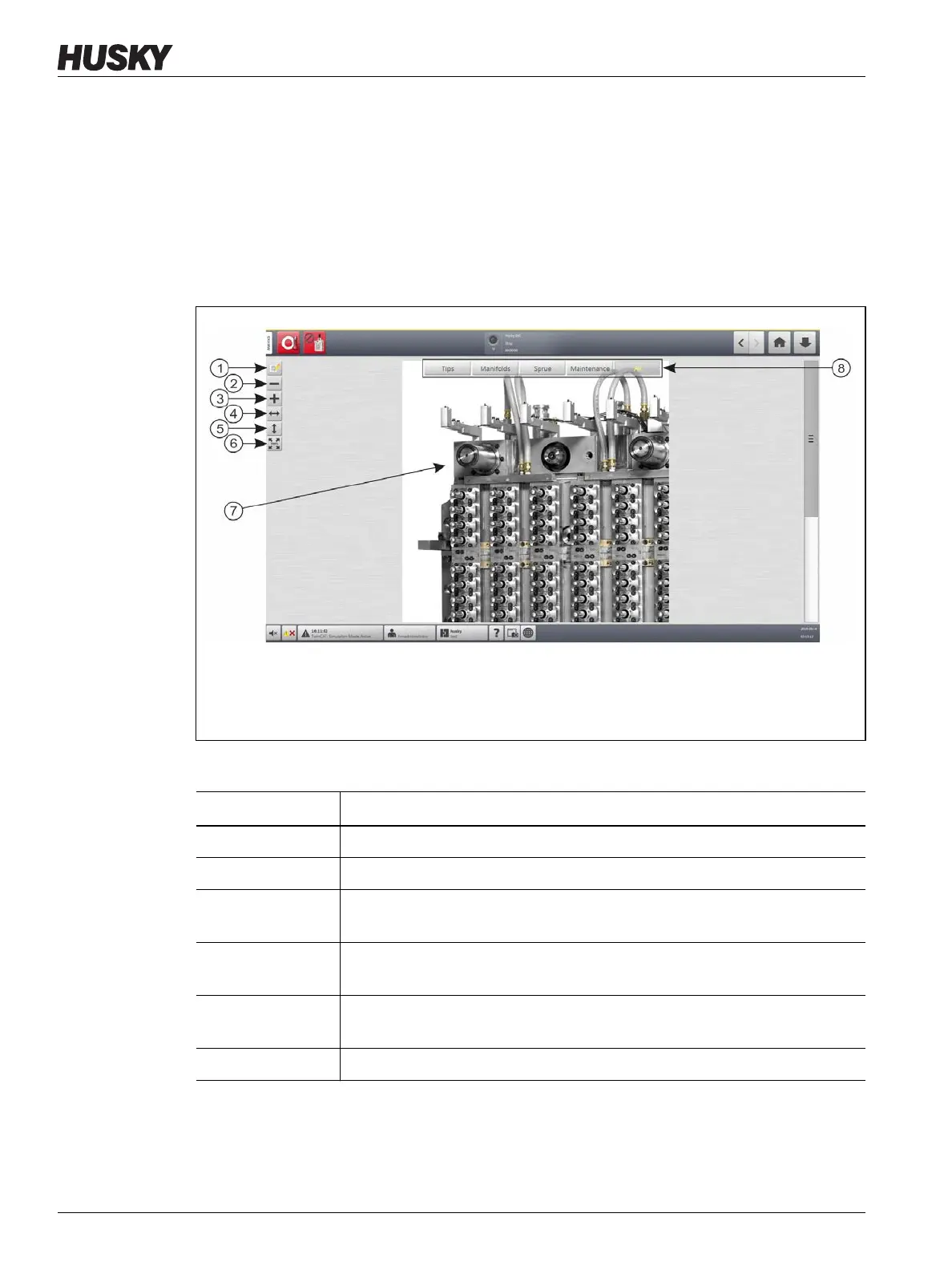

Figure 11-3 Mold Picture View Screen
1. Edit Button 2. Zoom Out Button 3. Zoom In Button 4. Fit Width Button 5. Fit Height
Button 6. Original Size Button 7. Mold Picture View Graphic 8. Views
Table 11-1 Mold Picture View Toolbar
Toolbar Button Definition
Zoom Out Button Increases the size of the mold picture view graphic.
Zoom In Button Decreases the size of the mold picture view graphic.
Fit Width Button Increases or decreases the size of the mold picture view graphic to the widest
screen width possible.
Fit Height Button Increases or decreases the size of the mold picture view graphic to the screen
height.
Original Size
Button
Increases or decreases the mold picture view graphic to the default size.
Views Used to select the mold picture view graphic that is related to that view.
