4.1.7 Temperature Control Views
The Temperature Control Views area of the Altanium Home screen gives access to zone data
in different formats. Touch a view button to open the related screen. Table 4-9 gives a
description of the view screens.

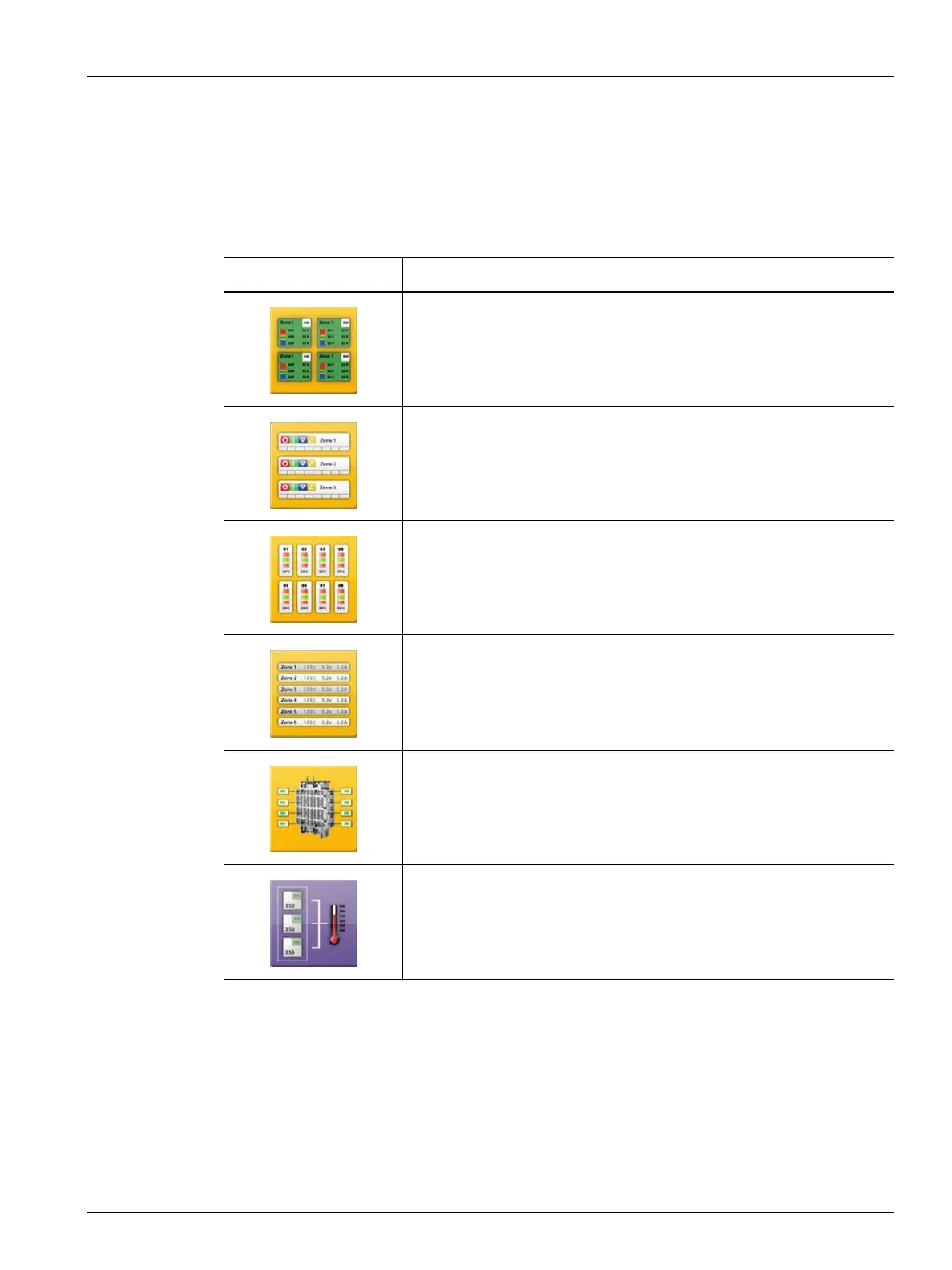

Table 4-9 Temperature Control Views Buttons
View Button Description
Touch the Neo2 View button to see the zones shown in a block format.
This screen gives an easy, overall status view of the mold, so you do not
have to sort through much data.
Touch the Multi Group View button to see the zones organized into
groups. This screen lets the user have control of each group. Refer to
Section 7.3 for more information.
Touch the Graphical View button to see a graphical view of zone data.
Refer to Section 7.4 for information.
Touch the Text View button to see a textual view of zone data. Refer to
Section 7.5 for more information.
Touch the Mold Picture View button to see an image (picture or
graphic) of the mold or hot runner system layout from an imported
image file. Refer to Chapter 11 for information.
Touch the Quick Set button to assign zones into groups and configure
setpoints. Refer to Section 7.6 for information.
