4. Install the anti-rotation tab, spring and locator on the housing.

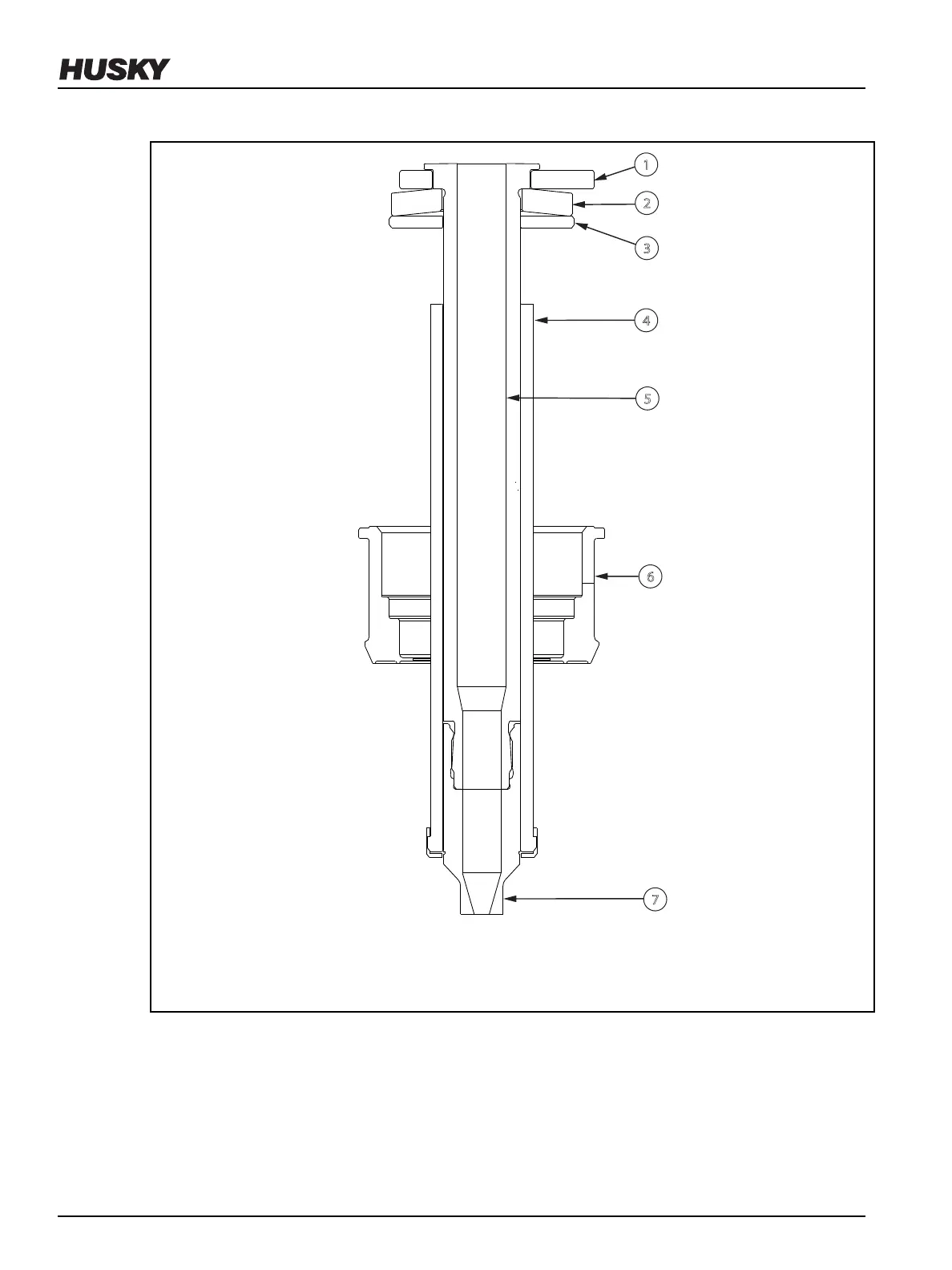

Figure 6-2: Anti-Rotation Tab, Spring and Locator on Nozzle Housing
1. Anti-Rotation Tab 2. Spring 3. Locator 4. Nozzle Heater 5. Nozzle Housing 6. Retainer 7. Nozzle
Tip
5. Install the nozzle tip and nozzle heater and thermocouple on the housing. Refer to Figure
6-2.
6. Install the retainer over the nozzle subassembly, guiding the nozzle heater and
thermocouple wires through the retainer wire exit channel.
7. Hold the housing subassembly from step 6 and place it against the manifold drop, aligning
the anti-rotation dowel with one of the corresponding slots on the retainer.
v 2.2 — March 2021 Unify Manifold System
64 Removing and Installing Nozzle Stacks
