8. Install the nozzle retainer but do not tighten it.
9. Route the nozzle heater and thermocouple wires through the wire passages on the nozzle
retainer. Refer to Figure 6-20.

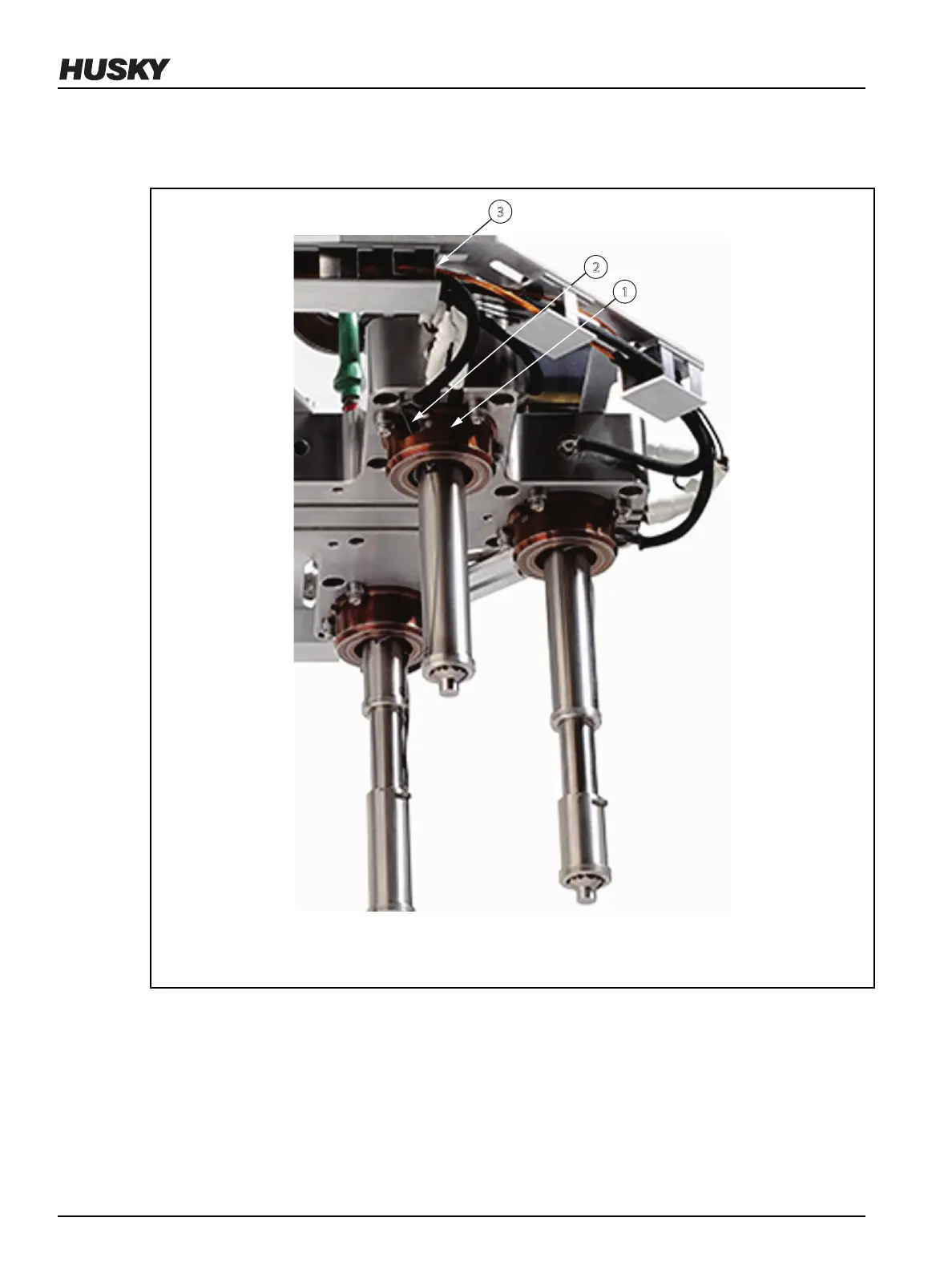

Figure 6-20: Routing the wires
1. Nozzle Retainer 2. Nozzle Retainer Wire Passage 3. Wire Channel
10. Tighten the nozzle retainer.
11. Route the wires into the wire channel on the manifold frame. Make sure all wiring is properly
retained in the wire channel using wire clips.
12. Make sure to stagger the knuckles in the wire channel.
v 2.2 — March 2021 Unify Manifold System
82 Removing and Installing Nozzle Heaters
