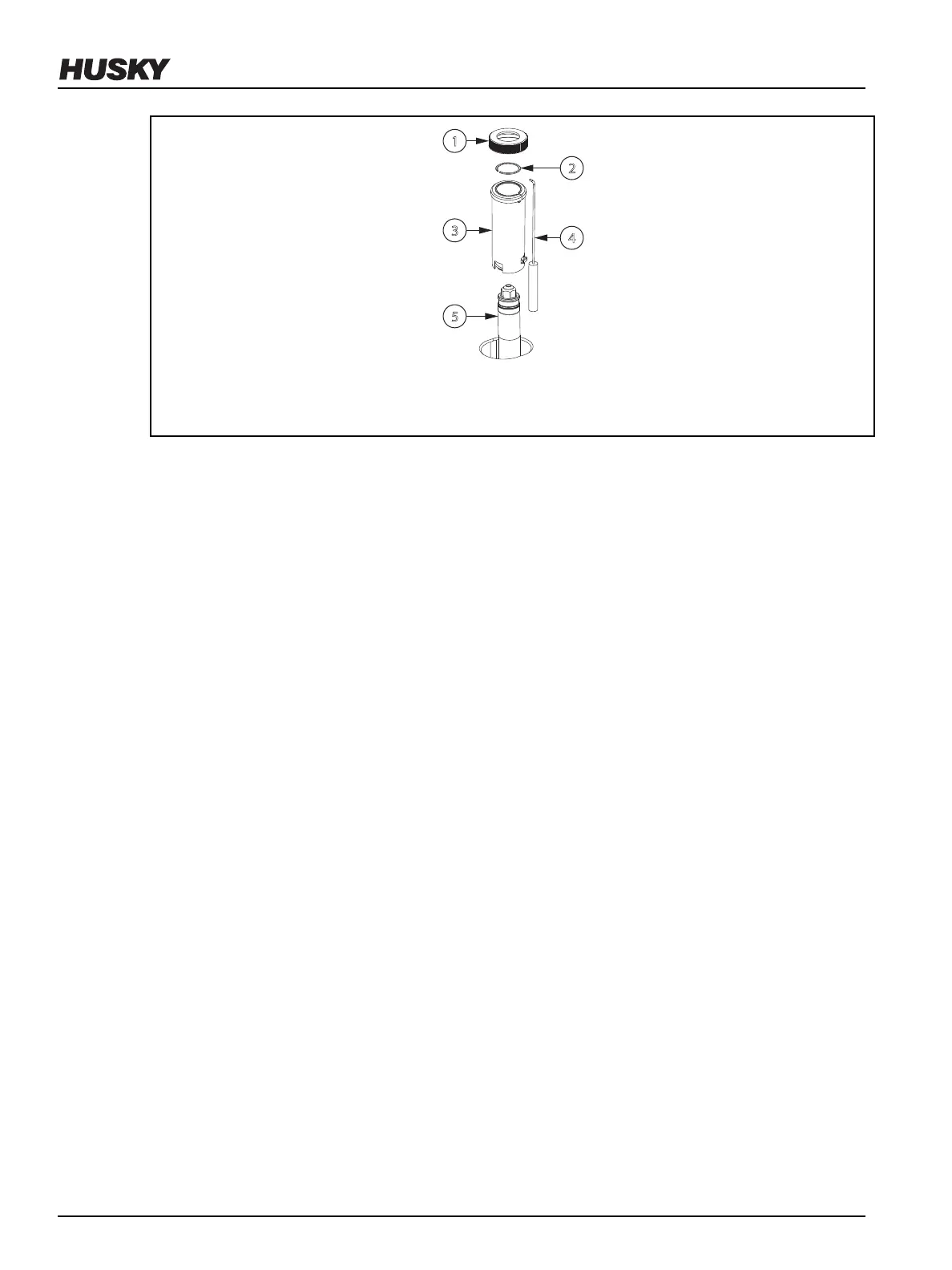

Figure 6-31: Bi-Metal Nozzle Heater Assembly
1. Front Ring 2. Retaining Clip 3. Bi-Metal Nozzle Heater 4. Thermocouple 5. Nozzle Tip
3. Install the retaining clip around the nozzle tip.
4. Connect the thermocouple to the nozzle heater.
5. Pull the nozzle heater up against the retaining clip.
6. Install the front ring and tighten it by hand.
7. Route the nozzle heater and thermocouple wires through the wire passages on the nozzle
retainer.
v 2.2 — March 2021 Unify Manifold System
90 Removing and Installing Nozzle Heaters
