Hypertherm HyPerformance Plasma HPR400 User Manual

Maintenance
5-4 HPR400XD Auto Gas – 806160

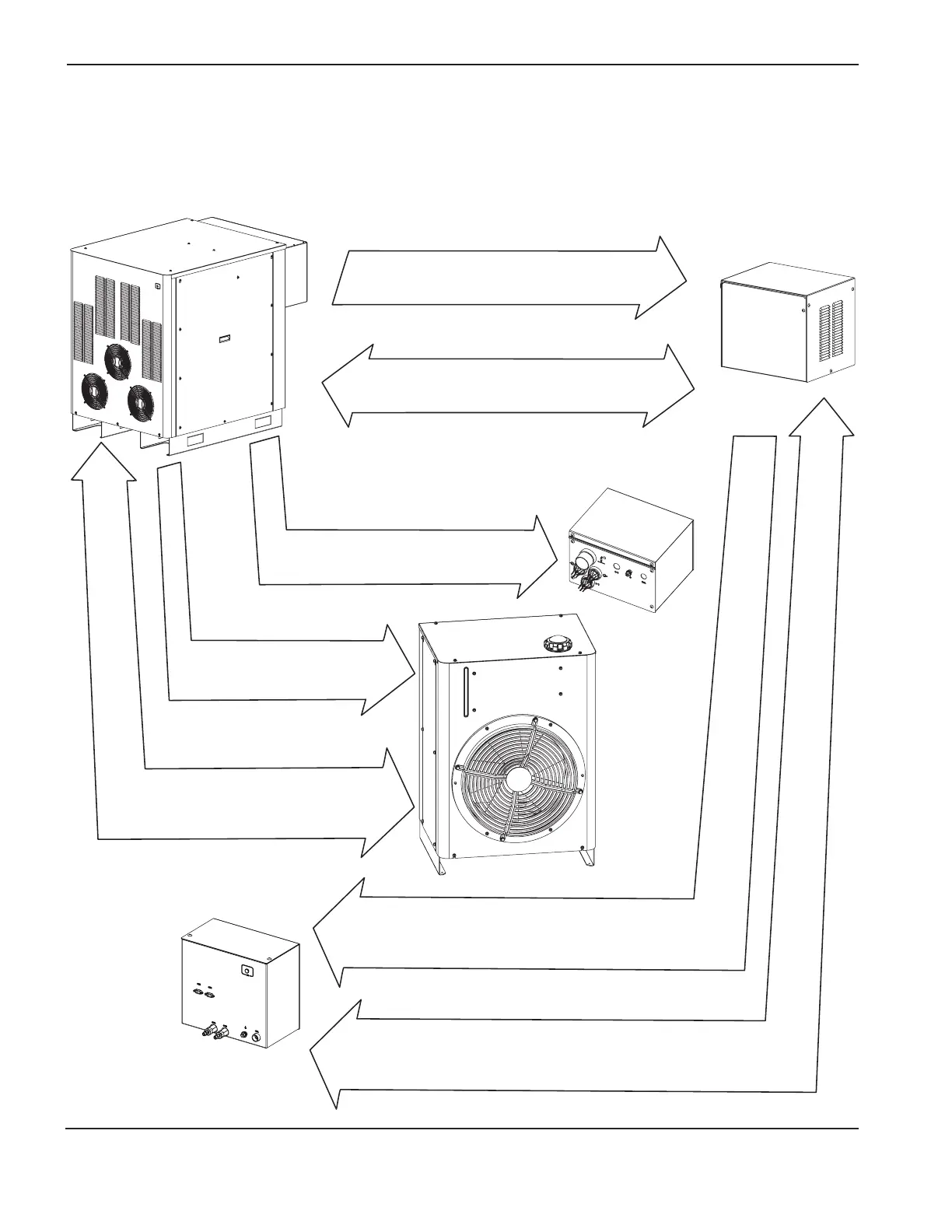

System description
Power and signal cables
Power cable: Provides 120 VAC to the
selection console.
CAN Bus signal cable: Provides process and
status signals between the power supply and
the selection console.
Power cable: Provides 120 VAC to the
ignition console.
Power cable: Provides 120 VAC to the metering console.
CAN Bus signal cable: Provides process and
status signals between the power supply and the metering
console.
CAN Bus signal cable: Provides
process and status signals between the
power supply and the cooler.
Power cable: Provides 120 VAC
and 240 VAC to the cooler.

Hypertherm HyPerformance Plasma HPR400 Specifications

General

Duty Cycle	100% at 400 A
Cutting Capacity	up to 50 mm (2 in)
Output Current	30-400 A
Input Voltage	200 – 480 V, 3-PH, 50/60 Hz
Gas Supply	Oxygen, Air, Nitrogen
