Hypertherm HyPerformance Plasma HPR400 User Manual

InstallatIon
3-56 HPR400XD Auto Gas – 806160

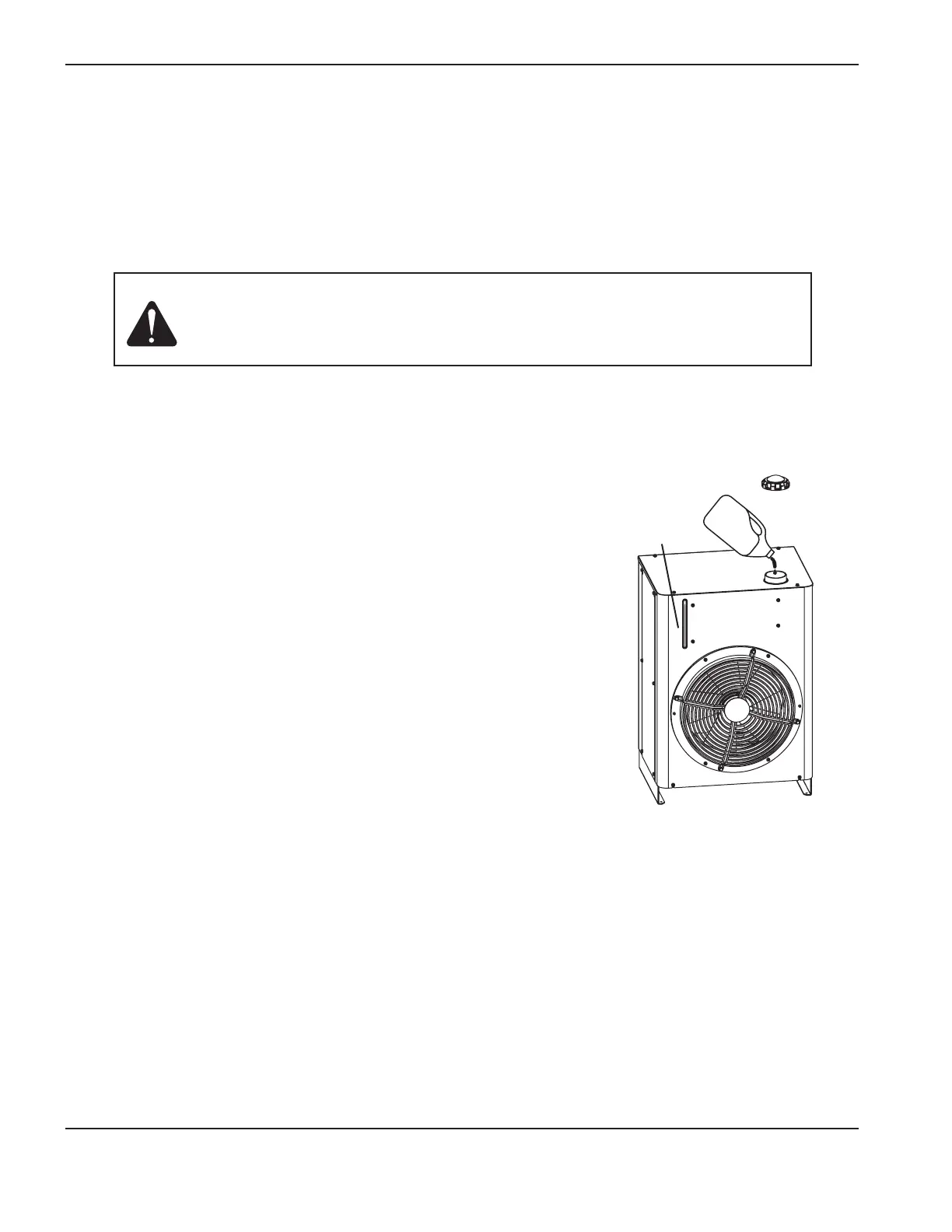

Fill the cooler with coolant
The cooling system’s capacity is 15.5 to 34.5 liters (4 to 9 gallons) of coolant, depending on the length of the torch
leads and coolant hoses.
1. Remove the filler cap and add coolant until the level in the sight glass
reaches full.
2. Turn ON the power supply using the remote ON/OFF switch or the CNC.
The coolant level in the tank will drop as the coolant circulates through the
system, and an error code (060 or 093) may occur.
3. Turn OFF the power.
4. Add coolant to the cooler until the level in the sight glass reaches full, and
turn ON the power.
5. Repeat this process as many times as necessary, until the pump can be run
continuously. This will allow coolant to completely fill the coolant loop and
purge any air from the system.
6. Replace the filler cap.
Sight glass
Caution: Using the wrong coolant can cause damage to the system. Refer to Torch
Coolant Requirements in this section for more information.
Do not over fill the coolant tank.

Hypertherm HyPerformance Plasma HPR400 Specifications

General

Duty Cycle	100% at 400 A
Cutting Capacity	up to 50 mm (2 in)
Output Current	30-400 A
Input Voltage	200 – 480 V, 3-PH, 50/60 Hz
Gas Supply	Oxygen, Air, Nitrogen
