Maintenance
5-46 HPR400XD Auto Gas – 806160

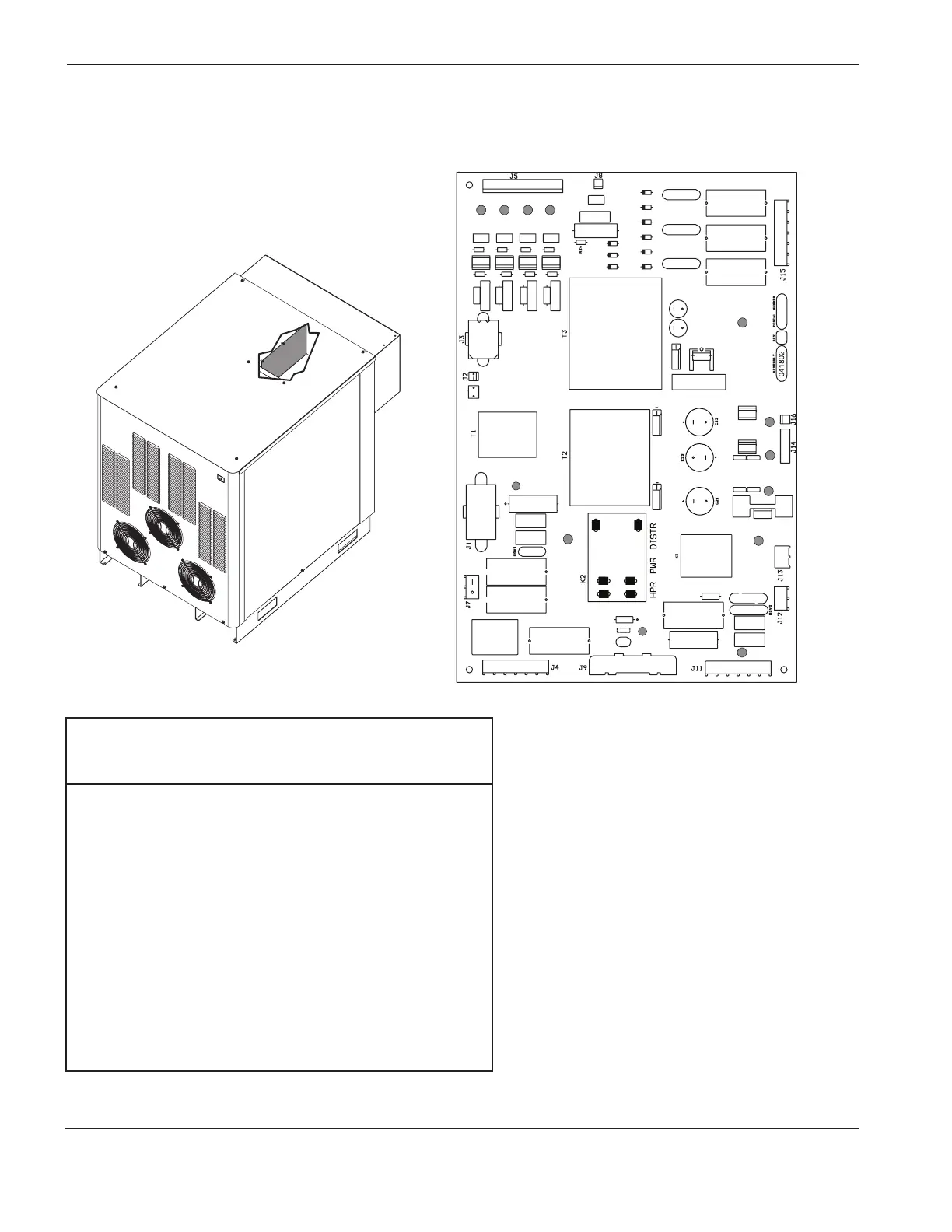

Power supply power distribution board PCB2
D23
D12
D26
D31
D32
D33
D3
D25
D1 D7 D5 D2
D35
Power distribution PC board LED list
LED Output Color
D1 Contactor Red
D2 Pilot arc relay Red
D3 120 VAC (switched) Green
D5 HF ignition Red
D7 Surge select Red
D12 24 VAC (switched) Green
D23 240 VAC (switched) Green
D25
+
24 VDC Red
D26 Pump motor Green
D31
+
5 VDC Red
D32
–
15 VDC Red
D33
+
15 VDC Red
D35 24 VAC Green

Hypertherm HyPerformance Plasma HPR400 Specifications

General

Duty Cycle	100% at 400 A
Cutting Capacity	up to 50 mm (2 in)
Output Current	30-400 A
Input Voltage	200 – 480 V, 3-PH, 50/60 Hz
Gas Supply	Oxygen, Air, Nitrogen
