InstallatIon
3-14 HPR400XD Auto Gas – 806160
Ignition console grounding

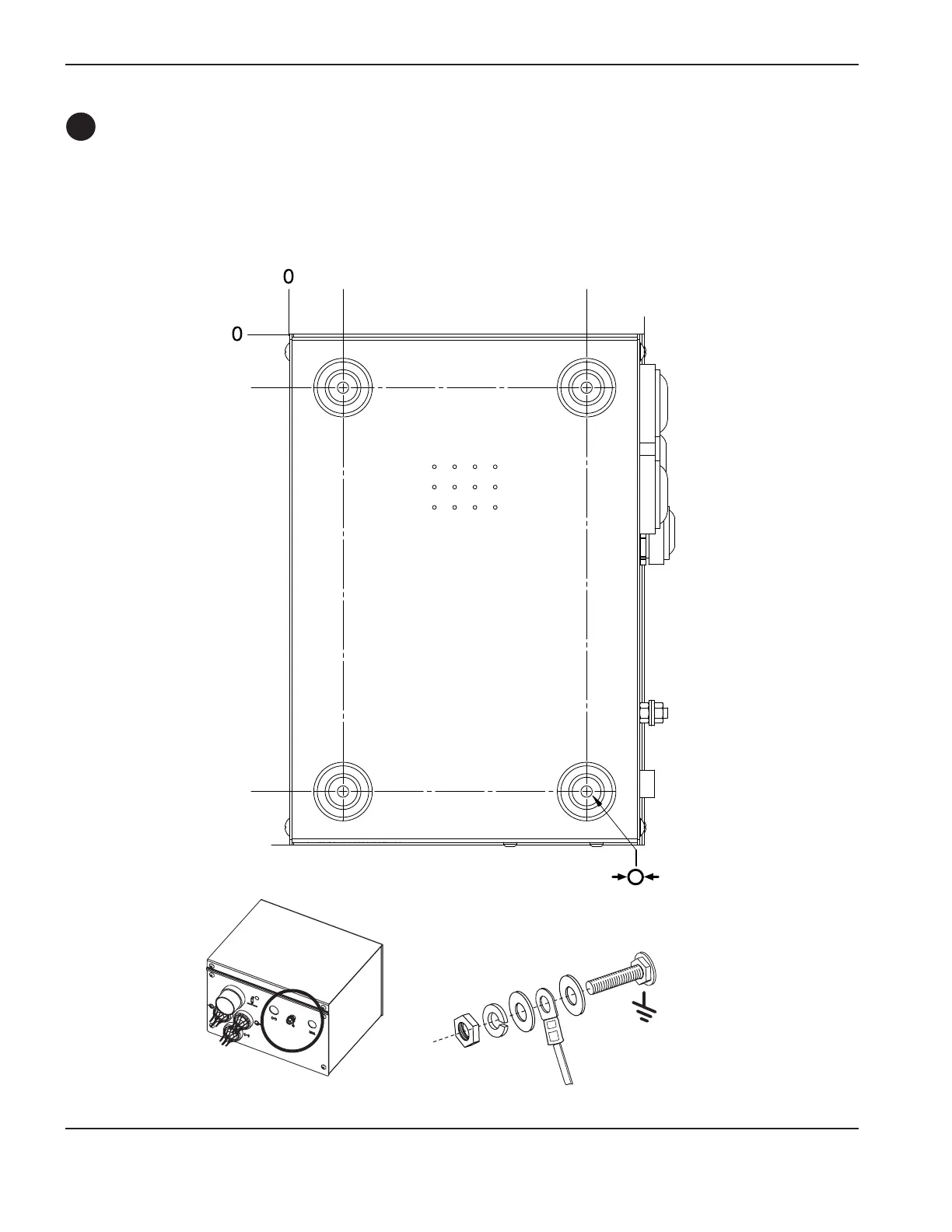

Install the ignition console
• Mount the ignition console in a vertical or horizontal position.
• Allow room to remove the top for servicing
B
7 mm
0.28 in
(4 places)
32 mm
1.25 in
32 mm
1.25 in
184 mm
7.25 in
317.5 mm
12.5 in
248 mm
9.75 in
222.25 mm
8.75 in

Hypertherm HyPerformance Plasma HPR400 Specifications

General

Duty Cycle	100% at 400 A
Cutting Capacity	up to 50 mm (2 in)
Output Current	30-400 A
Input Voltage	200 – 480 V, 3-PH, 50/60 Hz
Gas Supply	Oxygen, Air, Nitrogen
