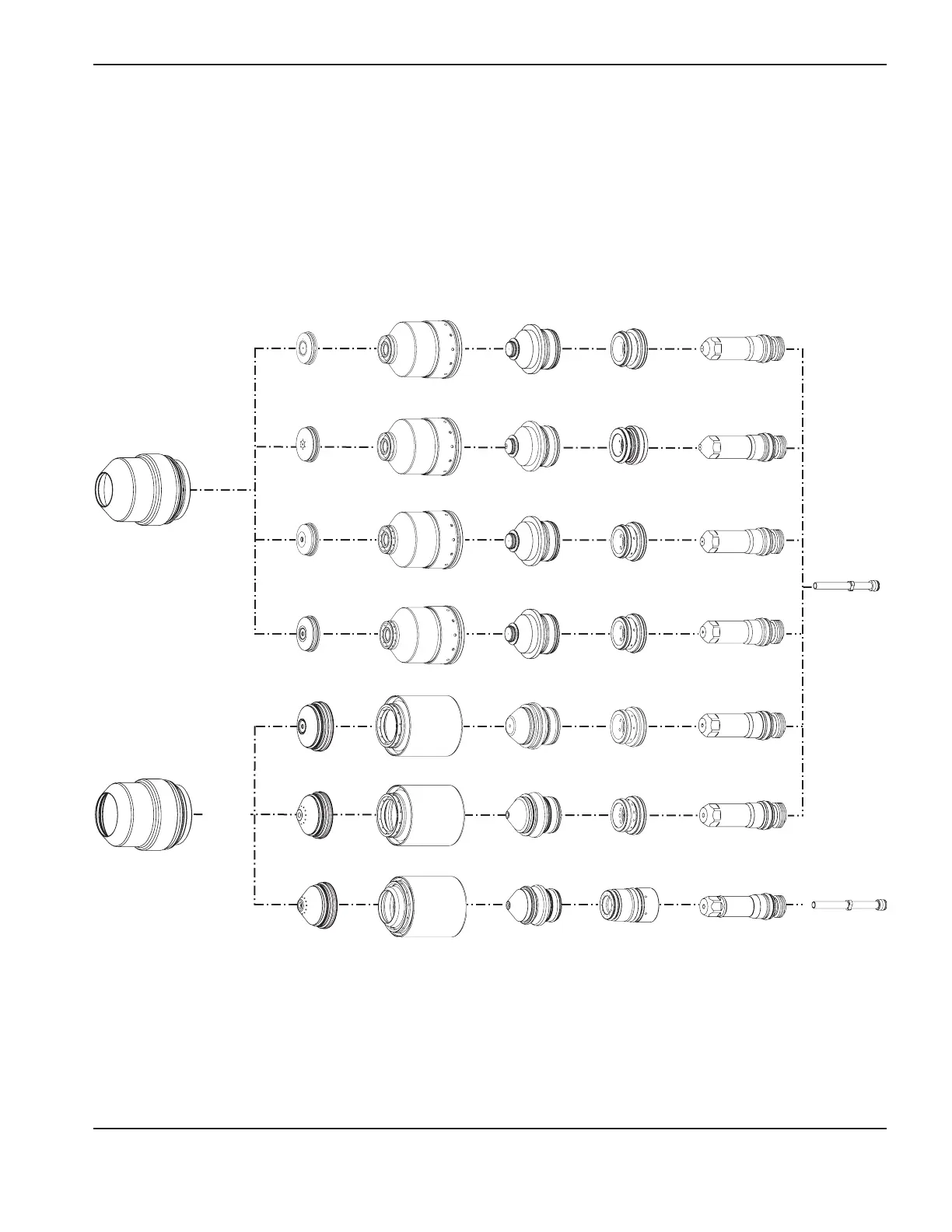

Parts List
6-18 HPR400XD Auto Gas – 806160
220193 220192220306
30 A
220187
80 A
220181
130 A
220305
220305
220188
220182220183
220189
220194
220755
220755
220810
220747
200 A
220352220350220354220811
220435220442220439220812
220637
Shield Nozzle
Swirl ring
Electrode
220552220549220554220555 220810
50 A
400 A
220761
220764
Nozzle
retaining cap
Shield cap
Water
tube
220340
220571
220629220782220632220636 220783
260 A
Consumables for mirror-image cutting
Straight cutting
Mild steel
