Hypertherm HyPerformance Plasma HPR400 - Metering Console - 078535

SpecificationS
HPR400XD Auto Gas – 806160 2-11
Metering console – 078535

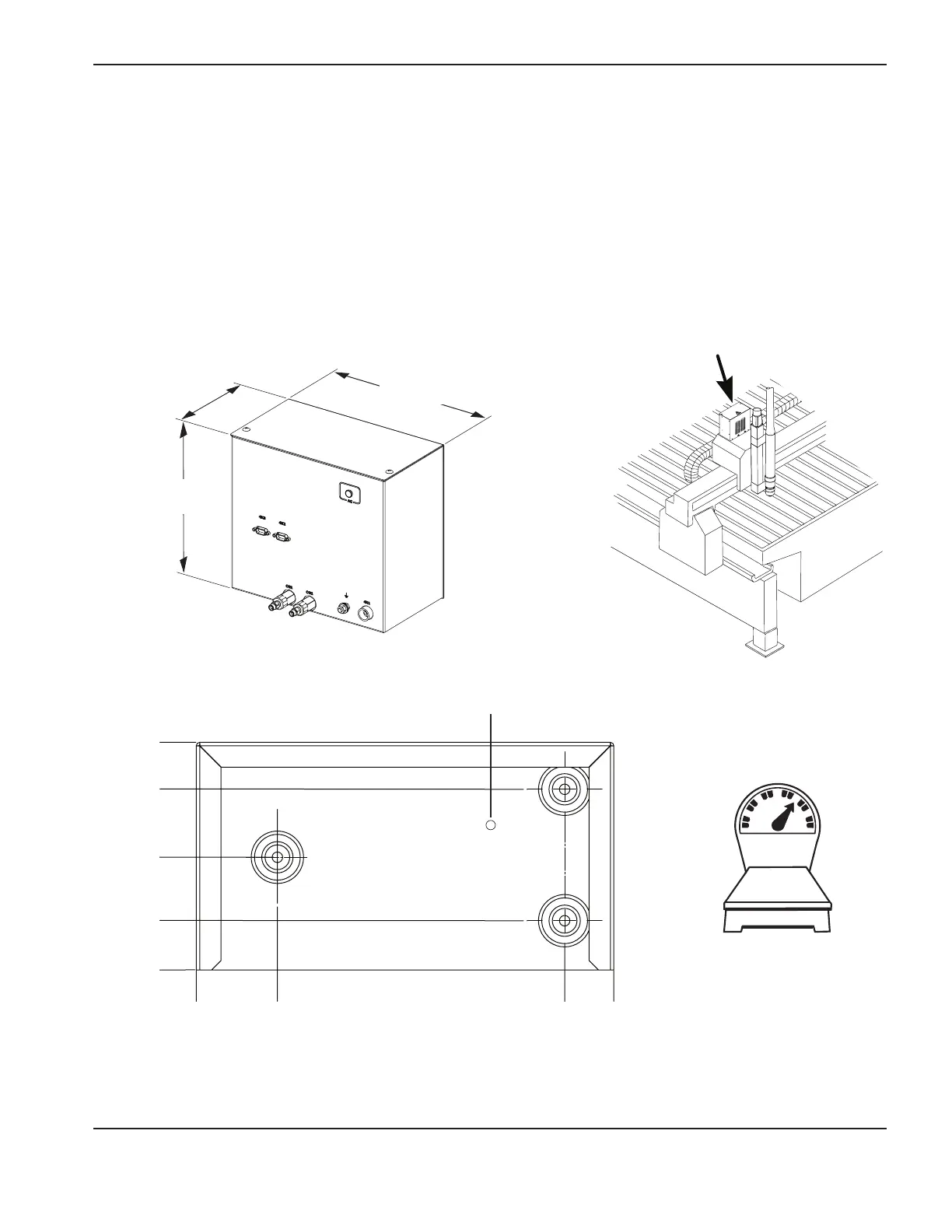

• Maximumcablelengthfromthemeteringconsoletothetorchlifterstationis1.8m(6ft).
• Mountthemeteringconsoletothetorchcarriageonlargertables.Onsmallertablesitcanbemountedtoa
bracket just above the bridge.
• Theventholeontheconsolemustbekeptclearatalltimes.
153.9 mm
6.1”
33.3 mm
1.3”
122.2 mm
4.8”
0
54.9 mm
2.2”
76.2 mm
3.0”
6.4 kg
14 lb
282.5 mm
11.1”
0
248.9 mm
9.8”
Vent hole. Do not block.
263.53 mm
10.375”
155.58 mm
6.125”
285.75 mm
11.25”
