Hypertherm HyPerformance Plasma HPR400 User Manual

SpecificationS
HPR400XD Auto Gas – 806160 2-13
O
l
Direct current (DC)
The terminal for the
external protective
(earth) conductor
AC input power connection
Plasma torch cutting
Alternating current (AC)
An inverter-based power
source, either 1-phase or
3-phase
Power is OFF
Power is ON
f
1
f
2
1~
AC
Power is ON (LED)
Inlet gas pressure fault (LCD)
Missing or loose consumables
(LCD)
Power supply is out of
temperature range (LCD)
Volt/amp curve, “drooping”
characteristic
IEC symbols

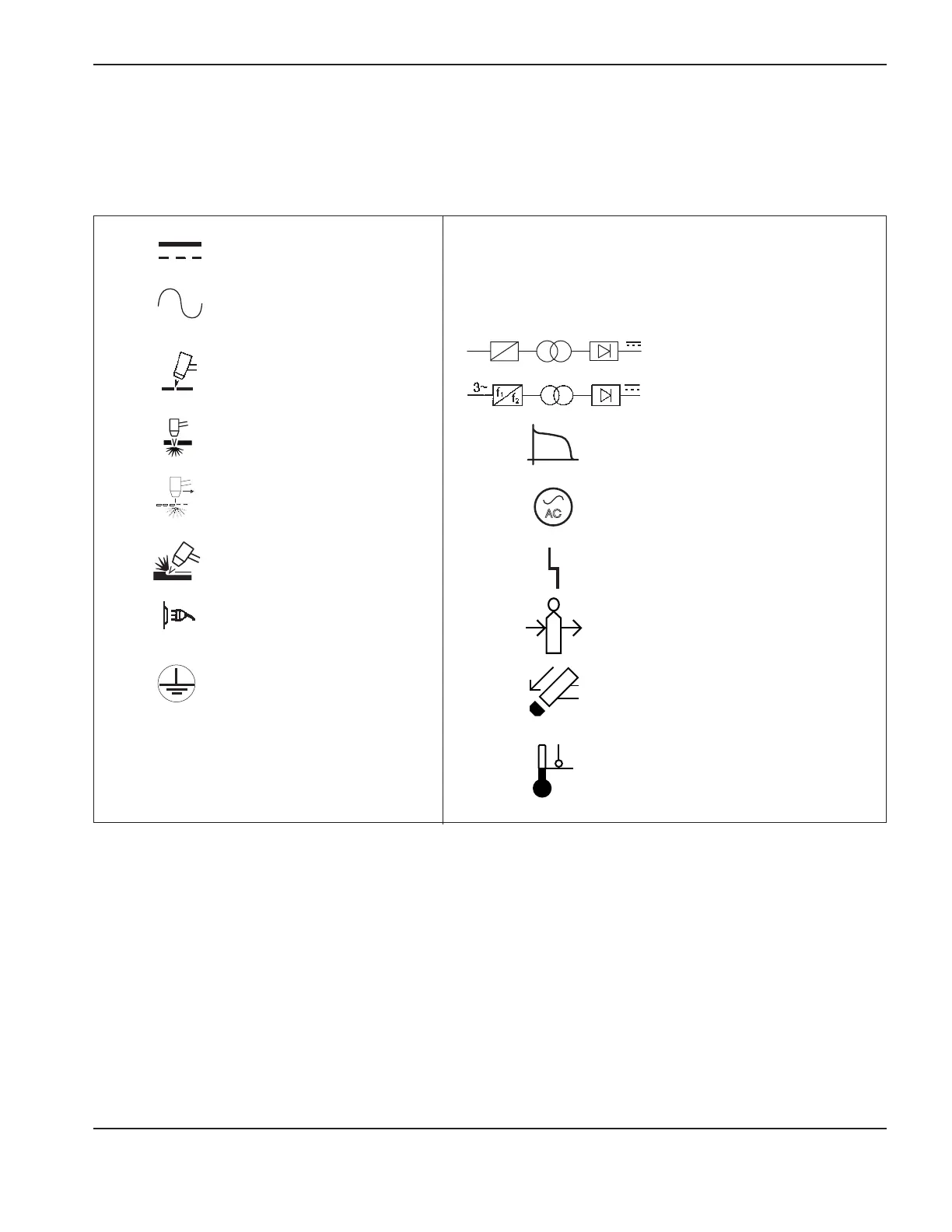

The following symbols may appear on the power supply data plate, control labels, switches, LEDs, and LCD screen.
System fault (LED)
Plate metal cutting
Expanded metal cutting
Gouging

Hypertherm HyPerformance Plasma HPR400 Specifications

General

Duty Cycle	100% at 400 A
Cutting Capacity	up to 50 mm (2 in)
Output Current	30-400 A
Input Voltage	200 – 480 V, 3-PH, 50/60 Hz
Gas Supply	Oxygen, Air, Nitrogen
