Hypertherm HyPerformance Plasma HPR400 User Manual

Parts List
6-24 HPR400XD Auto Gas – 806160

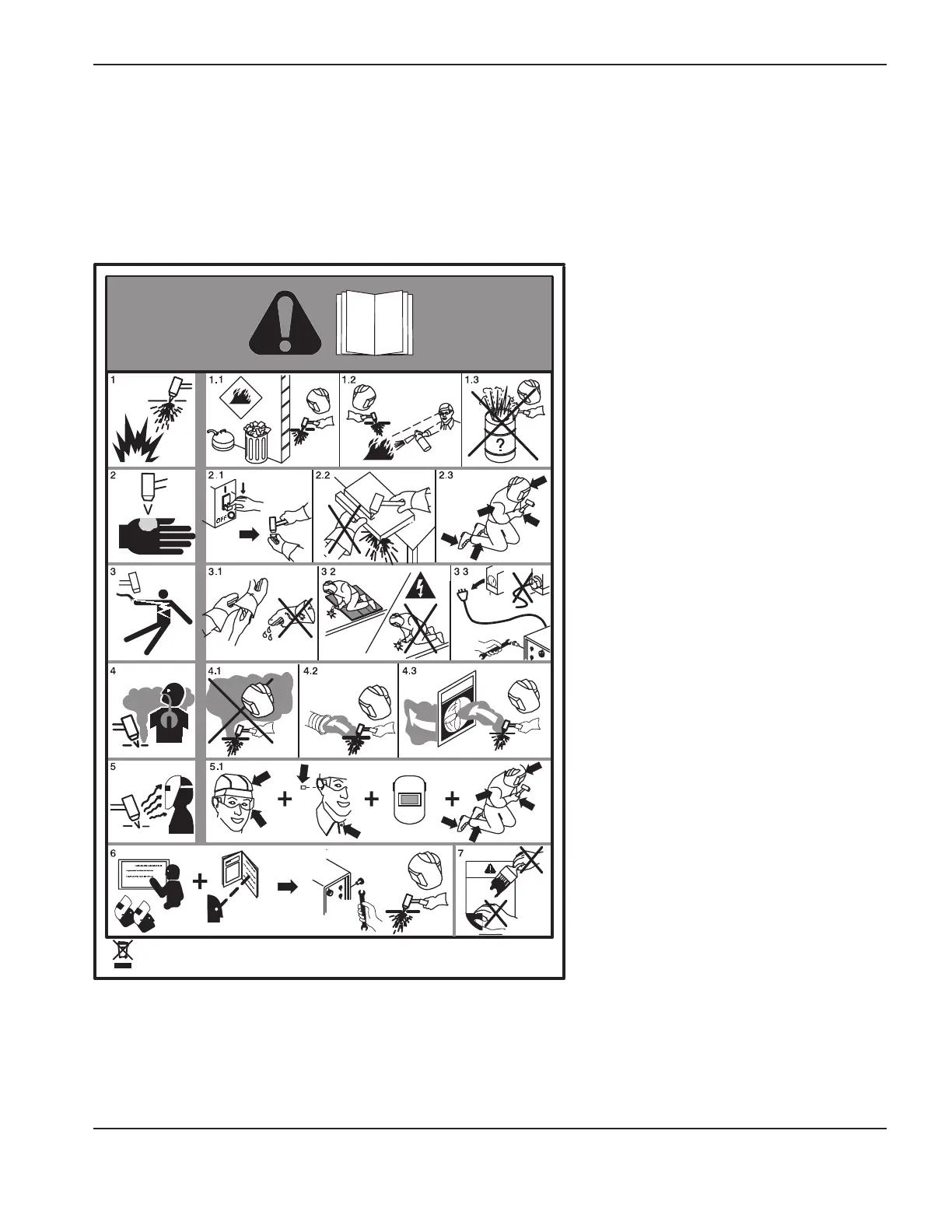

Warning Label – 110647
This warning label is affixed to some power supplies. It is important
that the operator and maintenance technician understand the intent of
these warning symbols as described. The numbered text corresponds
to the numbered boxes on the label.
www.hypertherm.com/weee
110647 Rev. B
1. Cutting sparks can cause explosion
orfire.
1.1 Do not cut near flammables.
1.2 Have a fire extinguisher nearby and
ready to use.
1.3 Do not use a drum or other closed
container as a cutting table.
2. Plasma arc can injure and burn; point
the nozzle away from yourself. Arc starts
instantly when triggered.
2.1 Turn off power before disassembling
torch.
2.2 Do not grip the workpiece near the
cutting path.
2.3 Wear complete body protection.
3. Hazardous voltage. Risk of electric
shock or burn.
3.1 Wear insulating gloves. Replace gloves
when wet or damaged.
3.2 Protect from shock by insulating yourself
from work and ground.
3.3 Disconnect power before servicing.
Donot touch live parts.
4. Plasma fumes can be hazardous.
4.1 Do not inhale fumes.
4.2 Use forced ventilation or local exhaust to
remove the fumes.
4.3 Do not operate in closed spaces.
Remove fumes with ventilation.
5. Arc rays can burn eyes and injure skin.
5.1 Wear correct and appropriate protective
equipment to protect head, eyes, ears,
hands, and body. Button shirt collar.
Protect ears from noise. Use welding
helmet with the correct shade of filter.
6. Become trained. Only qualified
personnel should operate this
equipment. Use torches specified in the
manual. Keep non-qualified personnel
and children away.
7. Do not remove, destroy, or cover this
label. Replace if it is missing, damaged,
or worn.

Hypertherm HyPerformance Plasma HPR400 Specifications

General

Duty Cycle	100% at 400 A
Cutting Capacity	up to 50 mm (2 in)
Output Current	30-400 A
Input Voltage	200 – 480 V, 3-PH, 50/60 Hz
Gas Supply	Oxygen, Air, Nitrogen
