Hypertherm HyPerformance Plasma HPR400 User Manual

InstallatIon
3-38 HPR400XD Auto Gas – 806160
Connect the leads
Note: Do not overtighten the connections
Junction box to the ignition console
1. Connect one end of the junction box lead to the junction box.
Note: The lead can go in either end of the junction box.

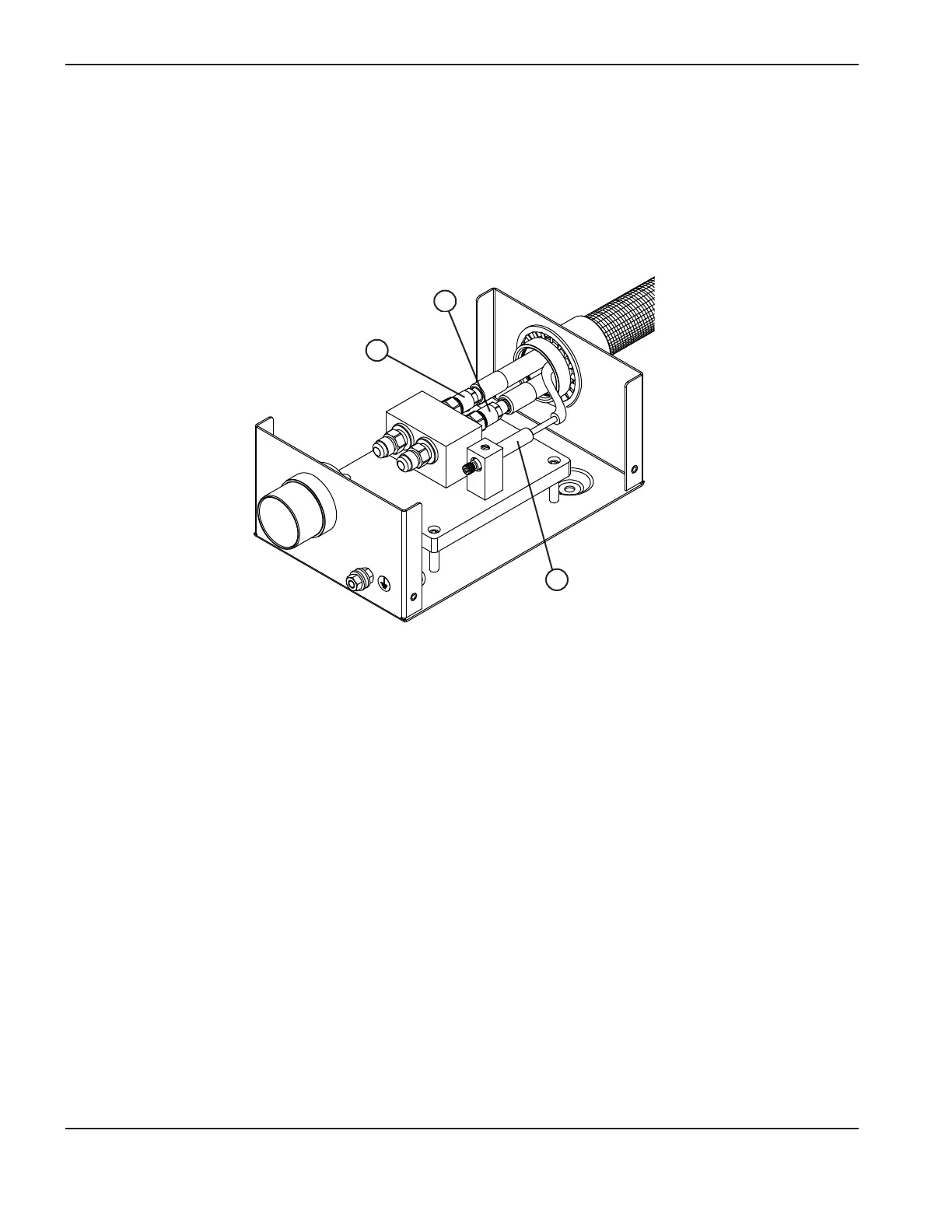

1 Coolant supply hose (green) 3 Pilot arc lead (yellow)
2 Coolant return hose (red)
From the ignition console
1
2
3

Hypertherm HyPerformance Plasma HPR400 Specifications

General

Duty Cycle	100% at 400 A
Cutting Capacity	up to 50 mm (2 in)
Output Current	30-400 A
Input Voltage	200 – 480 V, 3-PH, 50/60 Hz
Gas Supply	Oxygen, Air, Nitrogen
