Hypertherm HyPerformance Plasma HPR400 User Manual

Parts List
6-14 HPR400XD Auto Gas – 806160

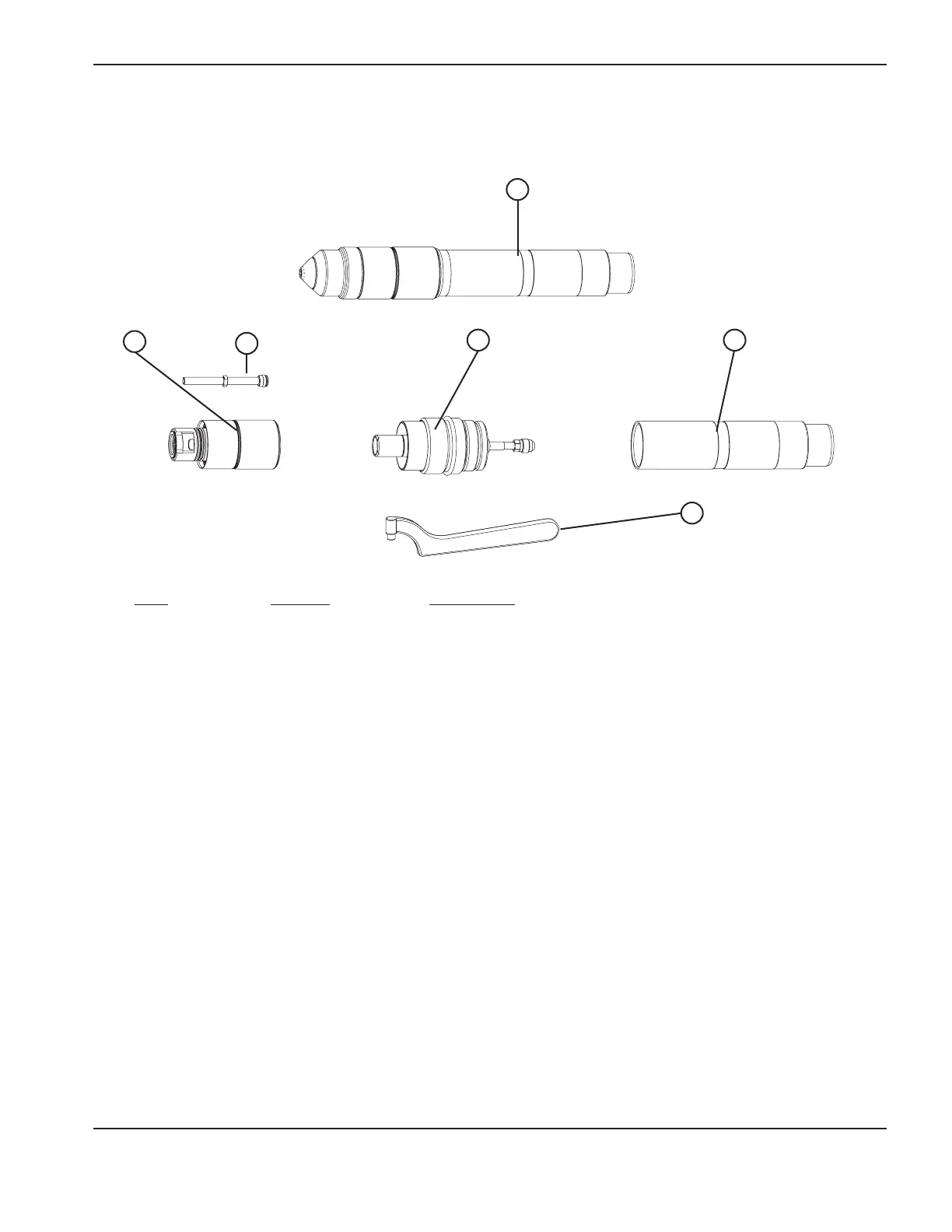

HyPerformance torch
Torch assembly
Part
Item Number Description
1 228354 HPR400XD machine torch assembly
2 220706 Quick-disconnect torch
3 220571 Water tube
4 220705 Quick-disconnect receptacle
5 220789 Torch mounting sleeve assembly: Standard, 181 mm (7 in)
220788 Torch mounting sleeve assembly: Short, 114 mm (4.5 in)
220790 Torch mounting sleeve assembly: Long, 248 mm (9.75 in)
6 104269 2” spanner wrench
128879 Torch kit: O-rings, water tube and seal
128880 Quick disconnect kit: O-ring and connector
2
4
6
5
1
3

Hypertherm HyPerformance Plasma HPR400 Specifications

General

Duty Cycle	100% at 400 A
Cutting Capacity	up to 50 mm (2 in)
Output Current	30-400 A
Input Voltage	200 – 480 V, 3-PH, 50/60 Hz
Gas Supply	Oxygen, Air, Nitrogen
