Hypertherm HyPerformance Plasma HPR400 User Manual

InstallatIon
3-18 HPR400XD Auto Gas – 806160

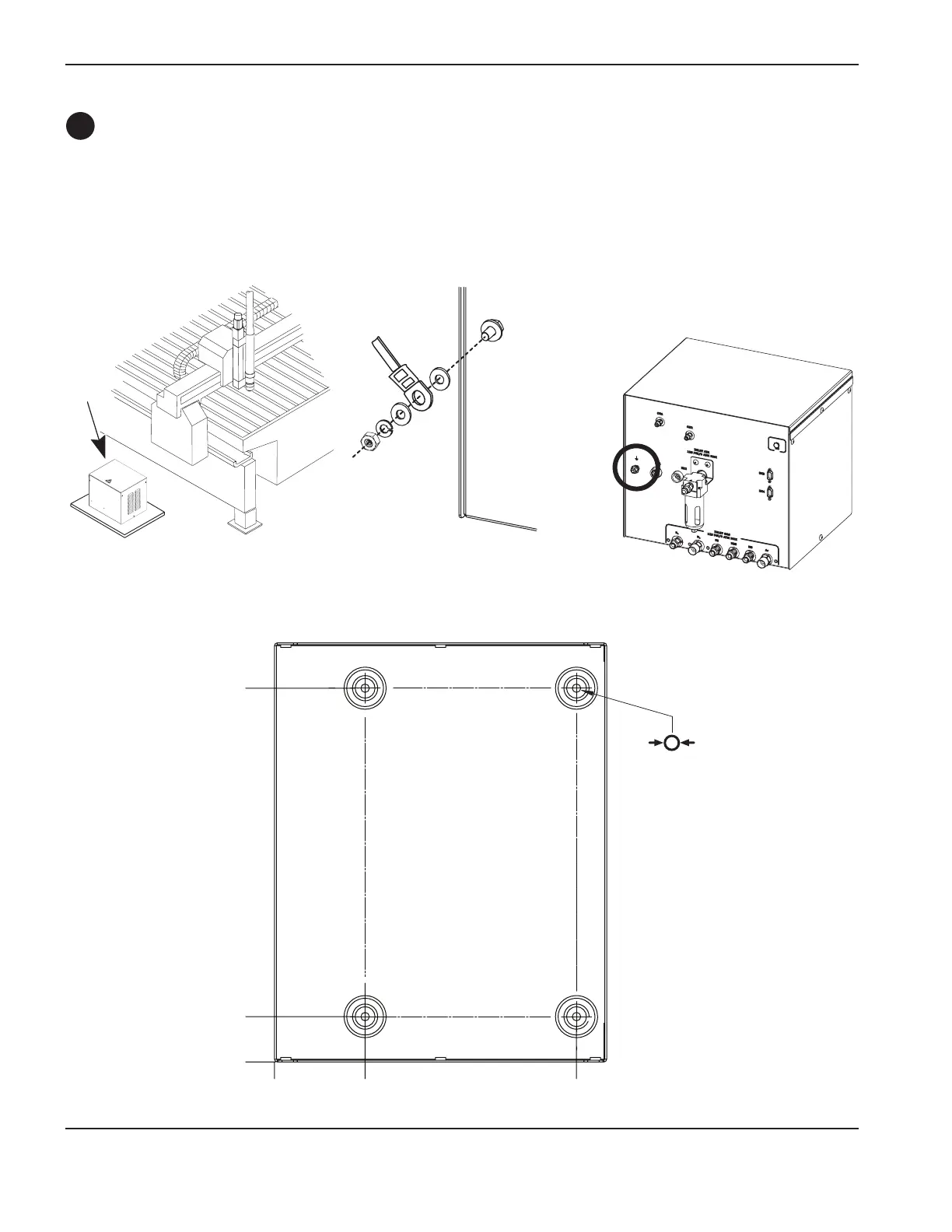

Preferred selection
console orientation
Selection console grounding
314.5 mm
12.38 in
254.0 mm
10.0 in
0
38.1 mm
1.5 in
0
76.2 mm
3.0 in
7 mm
0.28 in
(4 places)
Placement of the selection console
• Mount the selection console near the cutting table. Allow room to remove the top and right side cover for
servicing. Preferred orientation is shown in the figure below. The maximum length of cables between the power
supply and selection console is 75 m (250 ft). The maximum length of cables and hoses between the selection
console and the metering console assembly is 20 m (65 ft).
E

Hypertherm HyPerformance Plasma HPR400 Specifications

General

Duty Cycle	100% at 400 A
Cutting Capacity	up to 50 mm (2 in)
Output Current	30-400 A
Input Voltage	200 – 480 V, 3-PH, 50/60 Hz
Gas Supply	Oxygen, Air, Nitrogen
