Hypertherm HyPerformance Plasma HPR400 User Manual

Maintenance
5-42 HPR400XD Auto Gas – 806160
Pump and motor troubleshooting
Is the motor LED illuminated on the control board?
Is the motor on?
If the LED is illuminated, but the pump is not running, turn the pump on manually.
If the motor will not turn on, verify that the fuse is OK, and make sure there is power to the motor.
If you are still not getting flow from the pump, verify that the solenoid valve and relief valve are working correctly.
TP8
D
1
PWR GND
TP7
+24V
TP21 TP22
+
15V–15V
+
5V
S2
CAN SW
0
WDI SW
1
TP18
TP6
+
3.3V
D
2
D8
D7
RX
TX
TP4
+
5V
TP23
TP1
+A
3.3V
TP16
TP10
TP3
TP17
TP15
RESET
TP2
TP9
TP 2
TP 9

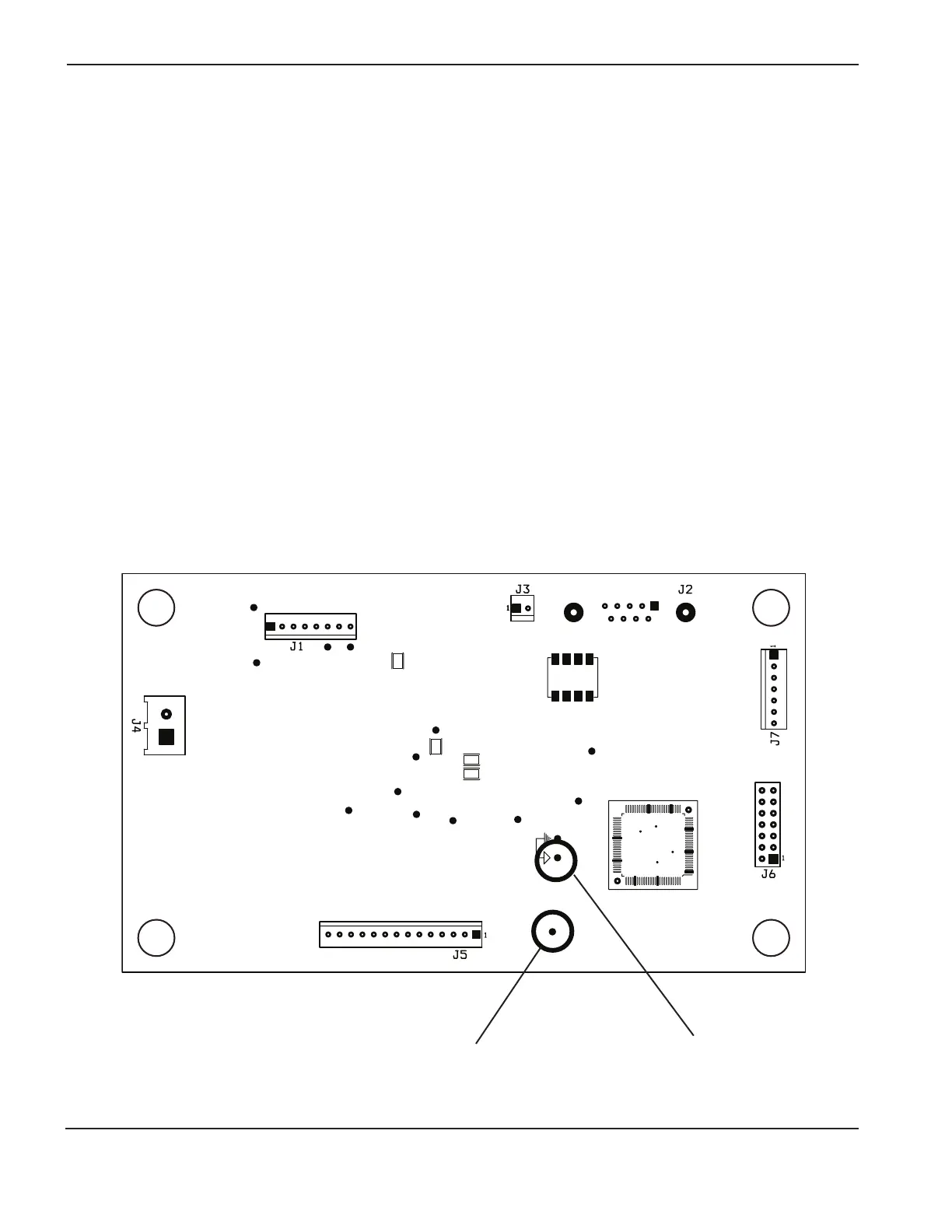

Testing the flow sensor
1. Turn ON the power.
2. Measure the VDC between TP2 and TP9.
TP9 is 67% scaled voltage from the flow sensor. Normal flow is 3.8 lpm (1.0 gpm), which will equal 0.67 VDC at
TP9.

Hypertherm HyPerformance Plasma HPR400 Specifications

General

Duty Cycle	100% at 400 A
Cutting Capacity	up to 50 mm (2 in)
Output Current	30-400 A
Input Voltage	200 – 480 V, 3-PH, 50/60 Hz
Gas Supply	Oxygen, Air, Nitrogen
