InstallatIon
HPR400XD Auto Gas – 806160 3-47

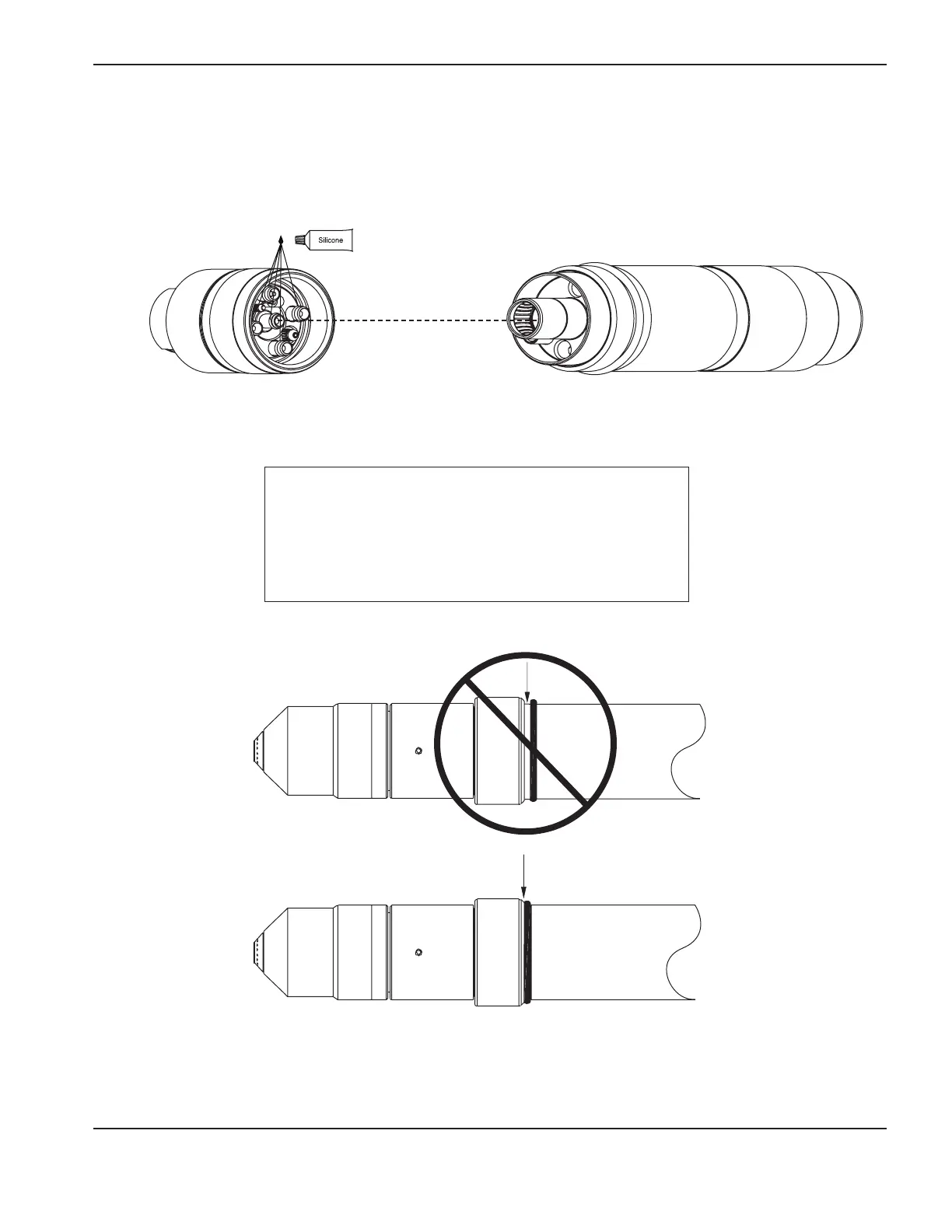

Connect the torch to the quick-disconnect
Installation note
Align the torch body to the torch leads and secure by
screwing completely together. Be certain that there is no
space between the torch body and the o-ring on the torch
leads. See also Torch connections earlier in this section for
torch lead connections to ignition console.
Apply a thin film of silicone
lubricant to each o-ring
Torch body
220706
Torch quick-disconnect receptacle
220705

Hypertherm HyPerformance Plasma HPR400 Specifications

General

Duty Cycle	100% at 400 A
Cutting Capacity	up to 50 mm (2 in)
Output Current	30-400 A
Input Voltage	200 – 480 V, 3-PH, 50/60 Hz
Gas Supply	Oxygen, Air, Nitrogen
