Hypertherm HyPerformance Plasma HPR400 User Manual

Maintenance
HPR400XD Auto Gas – 806160 5-27
Power supply states

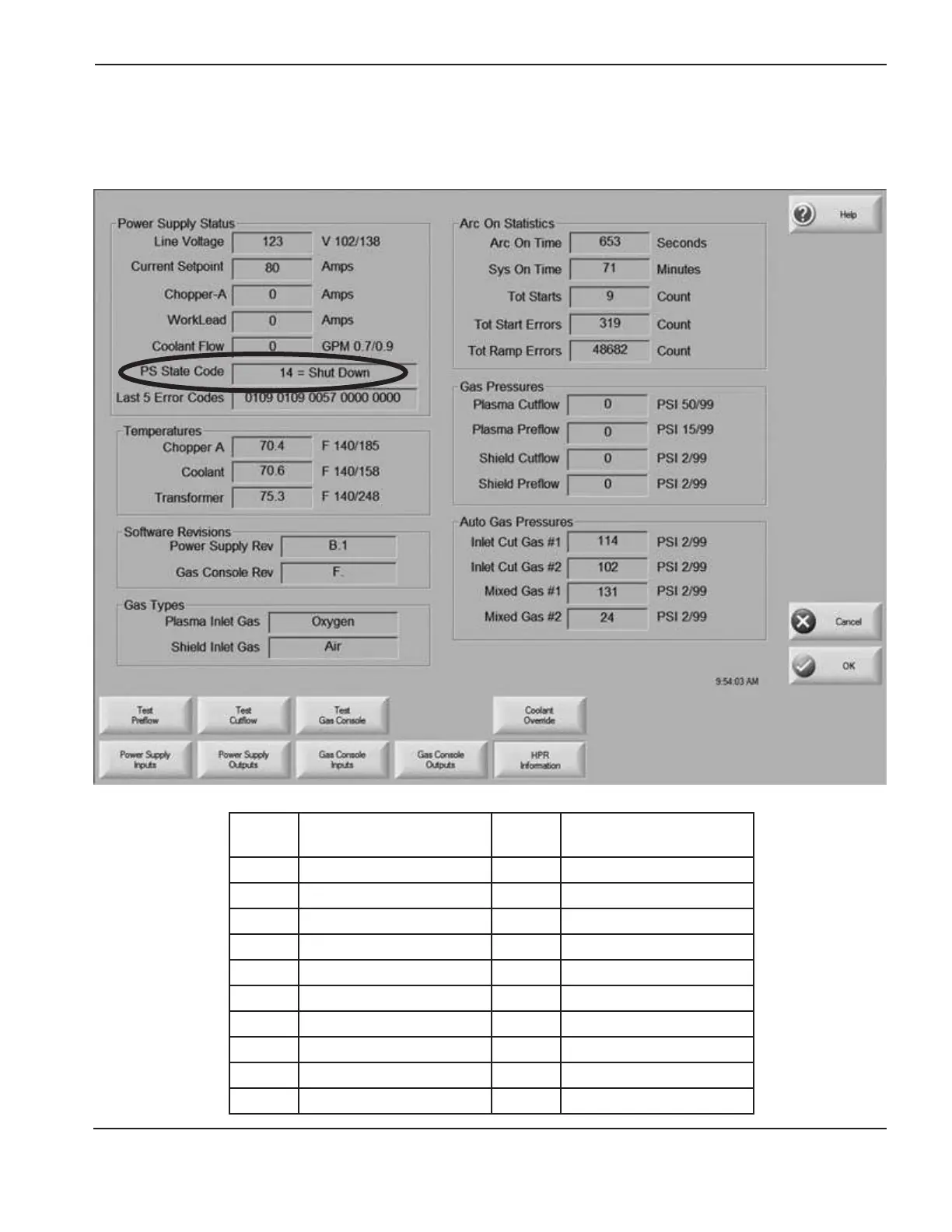

Power supply states are displayed on the CNC screen. The diagnostic screen shown below is for reference.
State
code
Name
State
code
Name
00 Power-up (idle) 11 Cycle complete (auto off)
02 Purge 12 Test cutflow
03 Ready for start (idle2) 14 Shutdown
04 Preflow 15 Reset
05 Pilot arc 16 Maintenance
06 Transfer 20 Test preflow
07 Ramp-up 22 Manual pump control
08 Steady state 23 Inlet leak check
09 Ramp-down 24 System leak check
10 Final ramp-down 25 Burkert valve flow check

Hypertherm HyPerformance Plasma HPR400 Specifications

General

Duty Cycle	100% at 400 A
Cutting Capacity	up to 50 mm (2 in)
Output Current	30-400 A
Input Voltage	200 – 480 V, 3-PH, 50/60 Hz
Gas Supply	Oxygen, Air, Nitrogen
