Hypertherm HyPerformance Plasma HPR400 User Manual

Maintenance

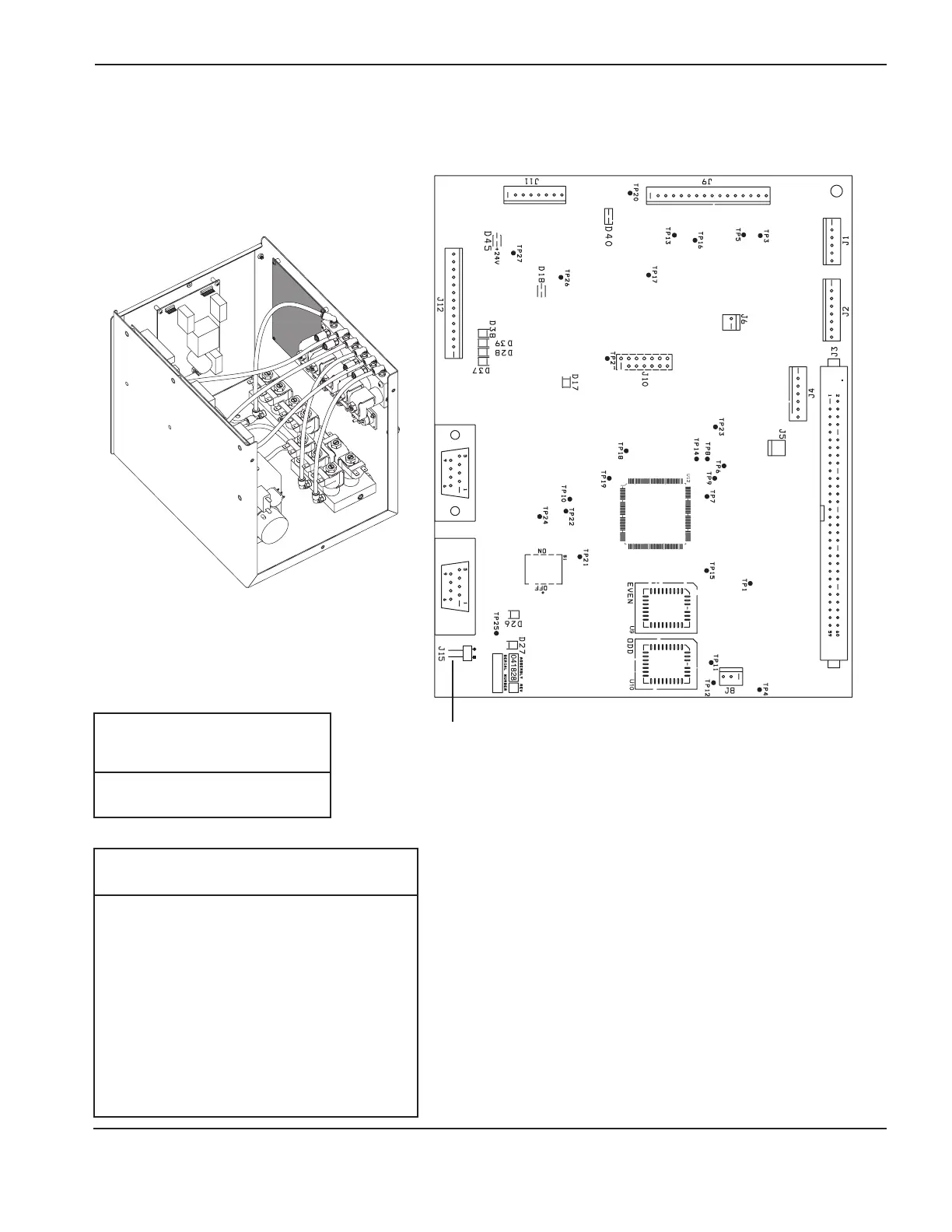

HPR400XD Auto Gas – 806160 5-53
Selection console control board PCB2
Note: CAN termination resistor. The jumper
must be removed.
Control PCB2 firmware list
Item Part number
U9 081110 EVEN
U10 081110 ODD
Gas console control board LED list
LED Signal name Color
D17 + 3.3 VDC Green
D18 + 5 VDC Green
D26 CAN – RX Green
D27 CAN – TX Green
D28 Not used Red
D37 Not used Red
D38 Not used Red
D39 Not used Red
D40 + 15 VDC Green
D45 + 24 VDC Green

Hypertherm HyPerformance Plasma HPR400 Specifications

General

Duty Cycle	100% at 400 A
Cutting Capacity	up to 50 mm (2 in)
Output Current	30-400 A
Input Voltage	200 – 480 V, 3-PH, 50/60 Hz
Gas Supply	Oxygen, Air, Nitrogen
