Hypertherm HyPerformance Plasma HPR400 User Manual

SpecificationS
HPR400XD Auto Gas – 806160 2-9

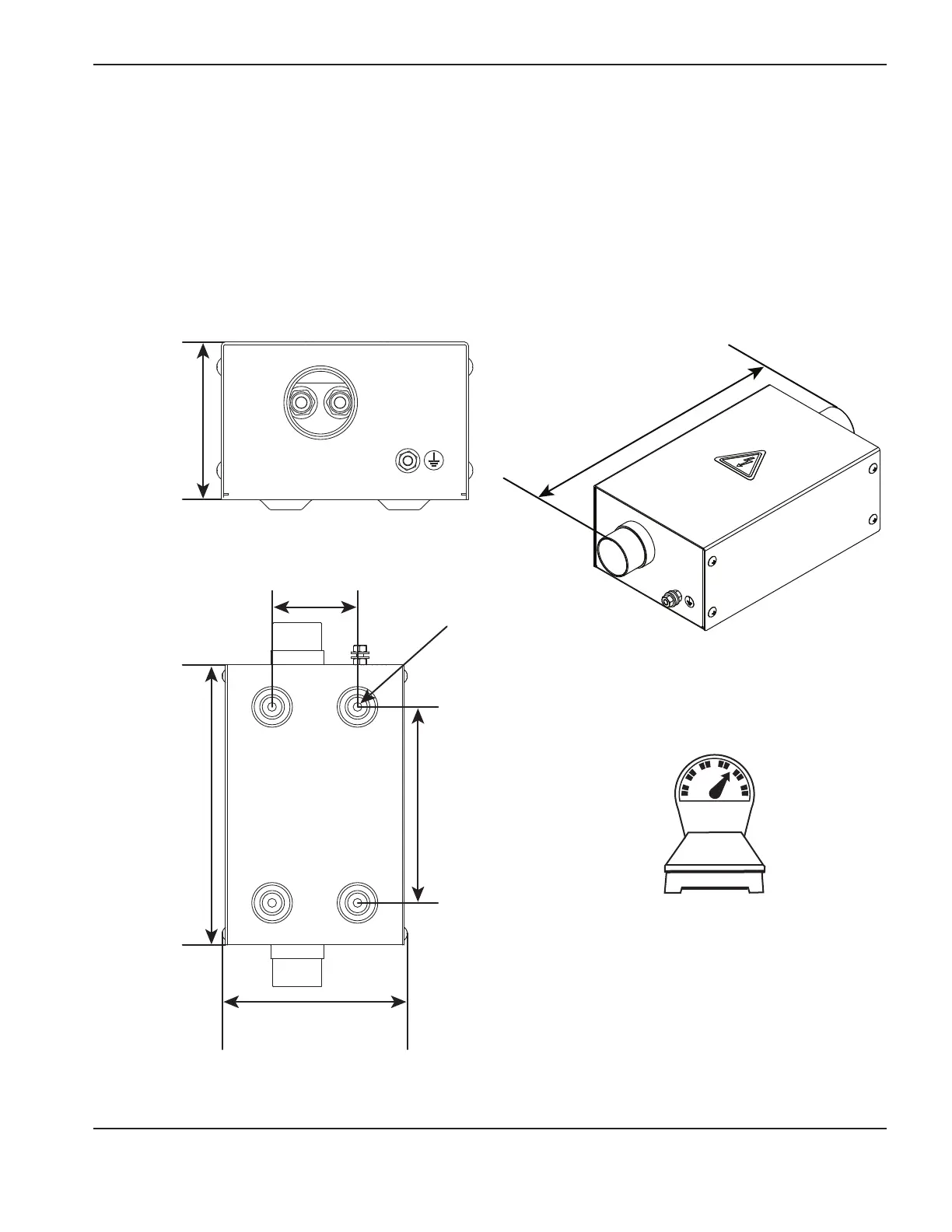

Torch lead junction box (Optional) – 078619
• The junction box provides increased installation flexibility by creating a break point in the leads between the
ignition console and torch to facilitate easier replacement of torch leads in certain applications.
• Maximum combined lead length from the ignition console to the torch must be less than or equal to:
• 20 m (65 feet) for HPR130XD / HPR260XD
• 15 m (50 feet) for HPR400XD / HPR800XD
109 mm
4.33 inch
330 mm
13.0 inch
77.5 mm
3.05 inch
178 mm
7.00 inch
254 mm
10.0 inch
165 mm
6.5 inch
7.9 mm
0.31 inch
4.6 kg
10.2 lb

Hypertherm HyPerformance Plasma HPR400 Specifications

General

Duty Cycle	100% at 400 A
Cutting Capacity	up to 50 mm (2 in)
Output Current	30-400 A
Input Voltage	200 – 480 V, 3-PH, 50/60 Hz
Gas Supply	Oxygen, Air, Nitrogen
