Hypertherm HyPerformance Plasma HPR400 User Manual

Parts List

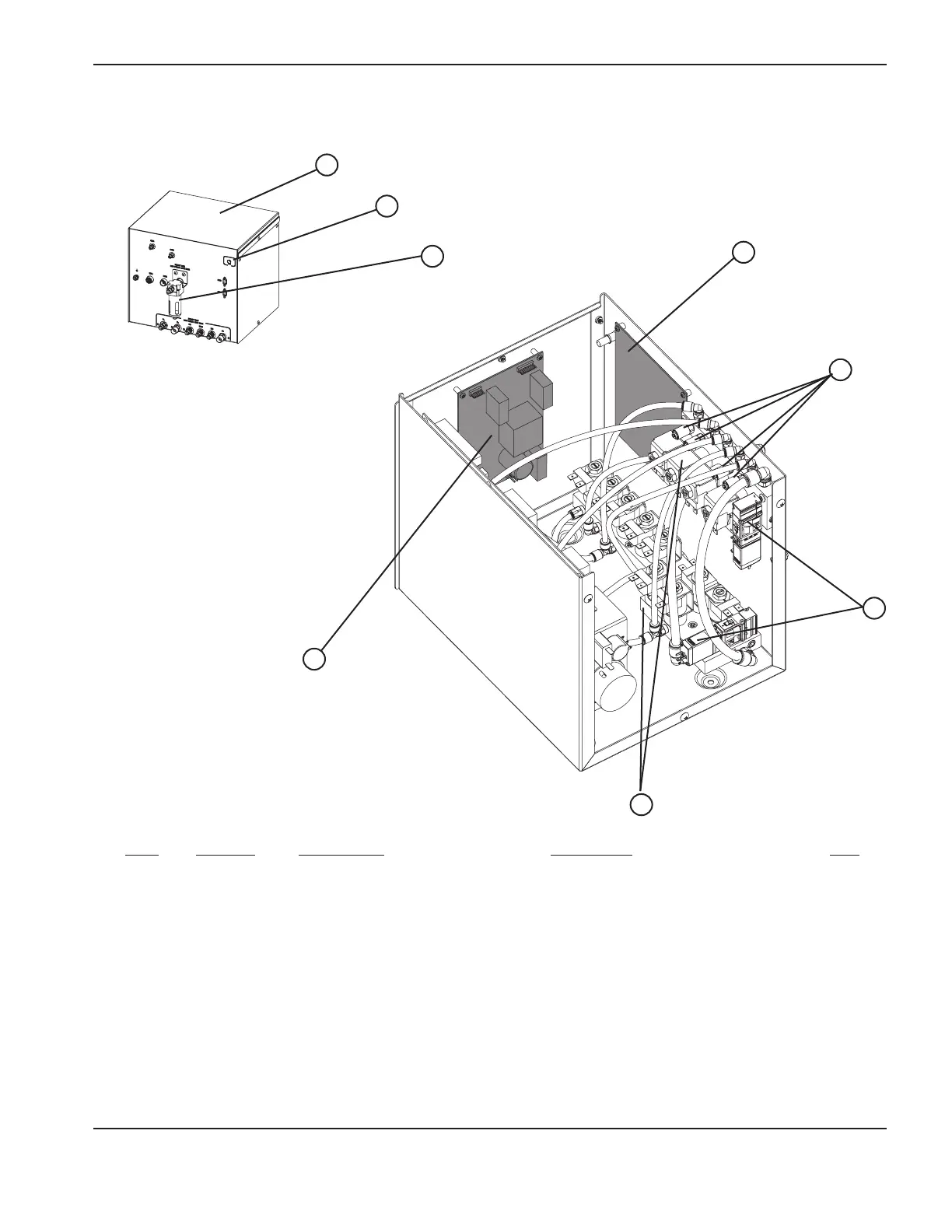

HPR400XD Auto Gas – 806160 6-11
Selection console
1
2
5
6
4
7
3
8
Part
Item Number Description Designator Qty.
1 078533 Selection console
2 129633 Green power lamp 1
3 011109 Filter assembly 1
011110 Filter element 1
4 228069 Kit: Control PCB PCB2 1
5 005263 Pressure sensor P1 – P4 4
123780 Pressure sensor wire harness P1 – P4 1
6 228984 Solenoid valve SV3 and SV10 2
7 006109 Solenoid valve SV1 and SV2, SV4–SV9, SV11–SV15 13
006112 Replacement solenoid coil
8 041897 Power distribution PCB PCB1 1
008756 Fuse: 5A, 250V, slow blow F1 1

Hypertherm HyPerformance Plasma HPR400 Specifications

General

Duty Cycle	100% at 400 A
Cutting Capacity	up to 50 mm (2 in)
Output Current	30-400 A
Input Voltage	200 – 480 V, 3-PH, 50/60 Hz
Gas Supply	Oxygen, Air, Nitrogen
