Hypertherm HyPerformance Plasma HPR400 User Manual

Maintenance
5-38 HPR400XD Auto Gas – 806160
Manual pump operation

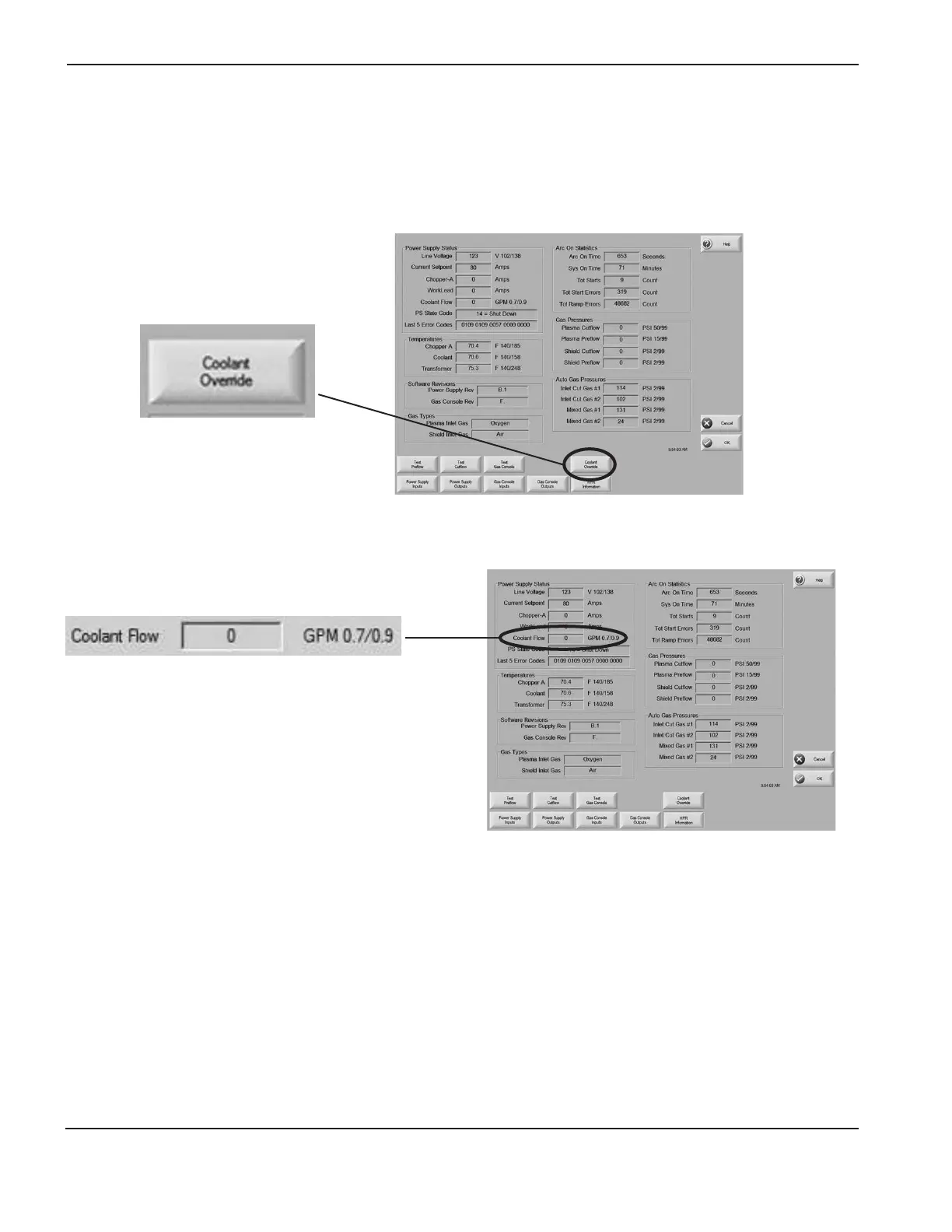

1. Go to the CNC screen that turns on the pump manually (refer to the operation instructions for the CNC being used).
If the selection console shows coolant flow error 093, the pump must be turned on manually within 8 seconds of
turning on the power supply, or the power will have to be turned off and then on again.
2. Turn ON the power. Turn ON the pump manually, and allow the coolant to flow for 60 seconds.
3. Write down the coolant flow rate on the CNC screen. The recorded flow rate will be used for comparison during
some of the tests. Coolant flow must be greater than 2.3 lpm (0.6 gpm) for the system to operate.
Note: A flow diagram can be found on schematic 013374, sheet 19 of 24

Hypertherm HyPerformance Plasma HPR400 Specifications

General

Duty Cycle	100% at 400 A
Cutting Capacity	up to 50 mm (2 in)
Output Current	30-400 A
Input Voltage	200 – 480 V, 3-PH, 50/60 Hz
Gas Supply	Oxygen, Air, Nitrogen
