InstallatIon
HPR400XD Auto Gas – 806160 3-39

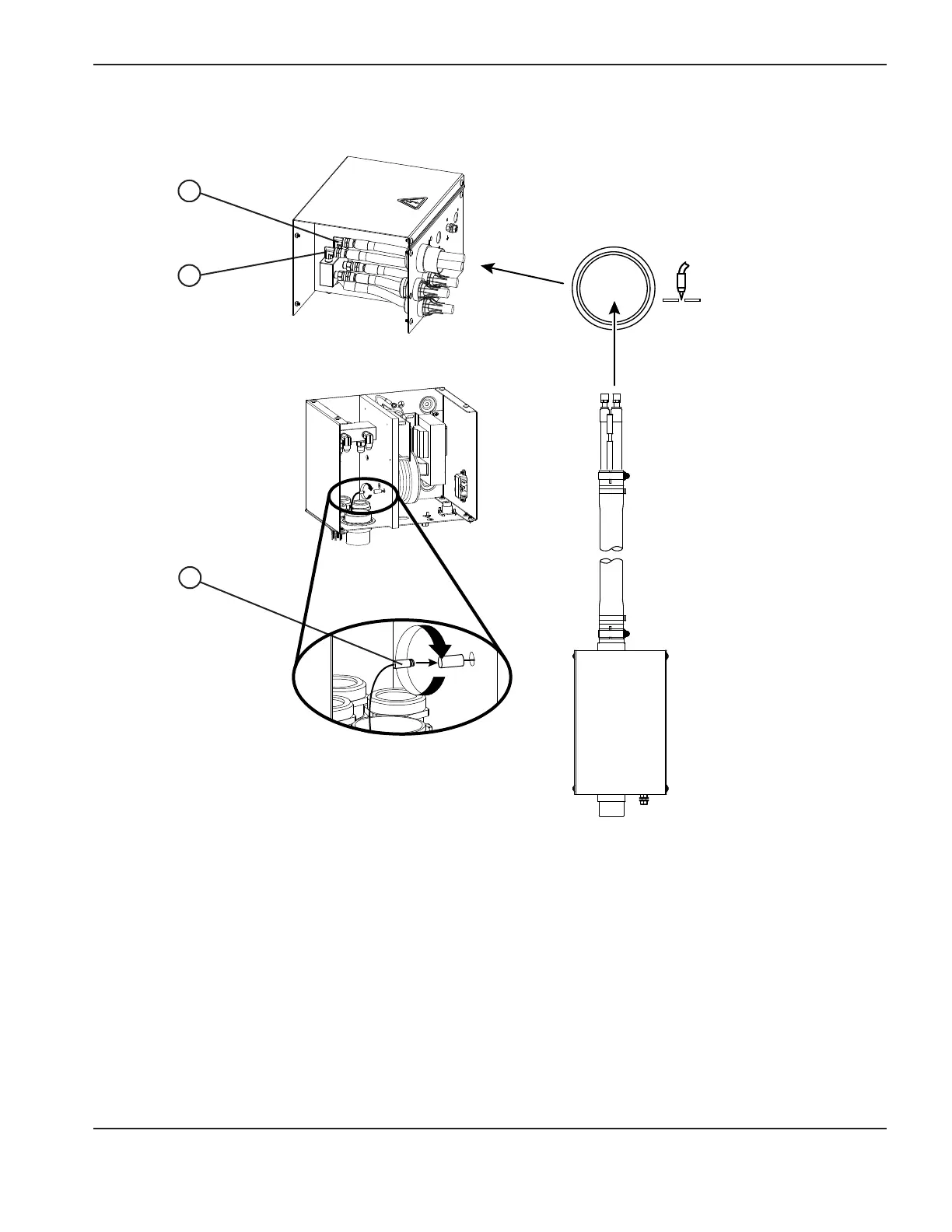

2. Connect the other end of the junction box lead to the ignition console.
1 Coolant supply hose (green) 3 Pilot arc lead (yellow)
2 Coolant return hose (red)
1
2
3
