Hypertherm HyPerformance Plasma HPR400 User Manual

Parts List

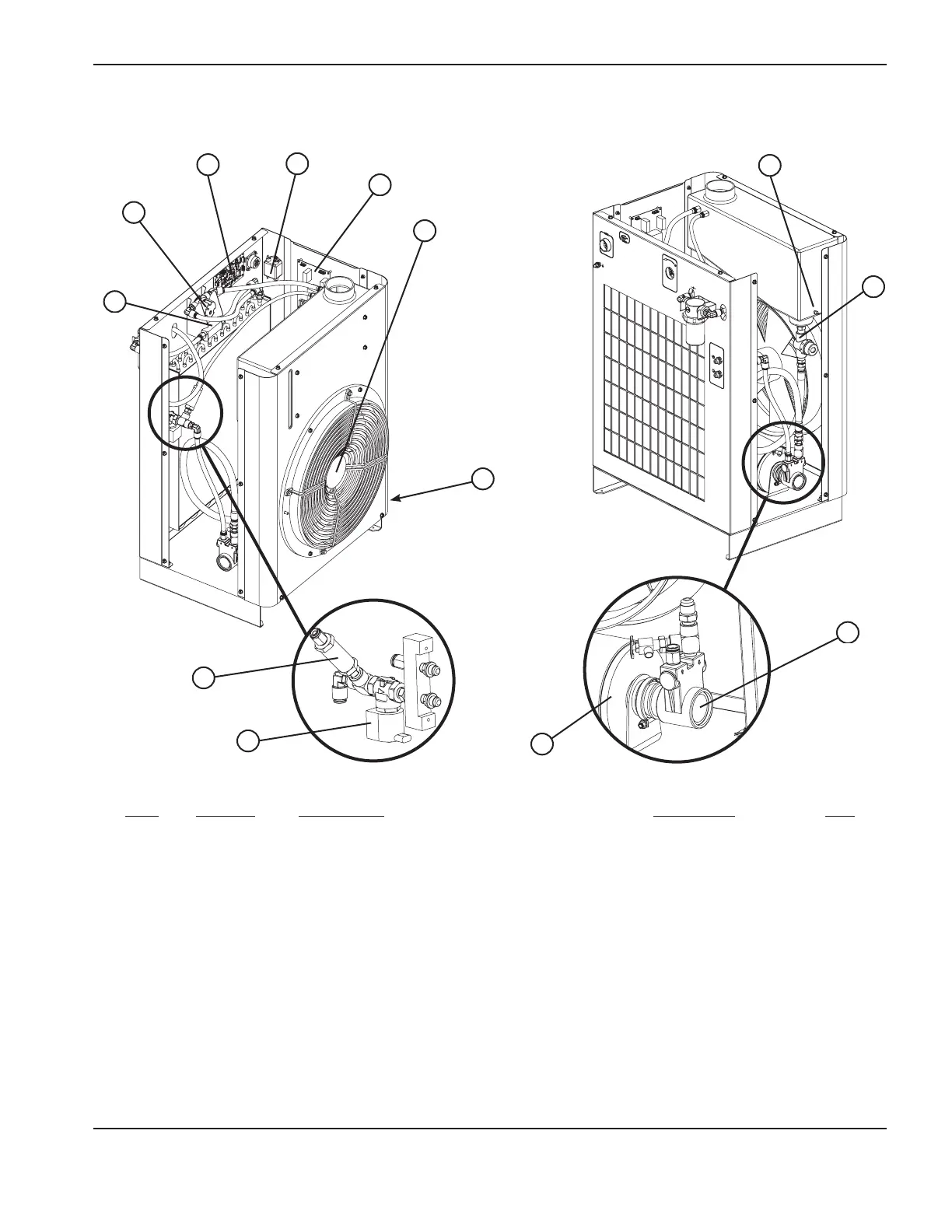

HPR400XD Auto Gas – 806160 6-7
Cooler
5
7
6
2
3
Part
Item Number Description Designator Qty.
1 006113 Check valve 1
2 229235 Flow sensor: 23 lpm (6 gpm) FS1 1
3 141033 PCB: Cooler sensor 1
4 009040 EMI filter: 250 VAC, 2 amp, 1 phase 1
5 041897 PCB: Console power distribution 1
008756 Fuse: 5 amp, 250 volt (slow-blow) F1 1
6 027658 Fan: 240 volt, 240 watt, 2910 cfm 1
7 229224 Temperature sensor TS1 1
8 027926 Filter assembly: 1/2”, NPT, low profile 1
9 228171 Kit: Pump with clamp 1
10 228230 Kit: Motor with clamp, 1/3 hp 1
11 229229 Solenoid valve 1
12 006132 Check valve (bypass valve): 1/4” NPT, 200 psi 1
13 109207 Capacitor (not visible) 1
031122 Pump to motor shaft coupler (not shown) 1
10
11
12
9
1
8
4
13

Hypertherm HyPerformance Plasma HPR400 Specifications

General

Duty Cycle	100% at 400 A
Cutting Capacity	up to 50 mm (2 in)
Output Current	30-400 A
Input Voltage	200 – 480 V, 3-PH, 50/60 Hz
Gas Supply	Oxygen, Air, Nitrogen
