12
(b) Precautions regarding wiring method
Use a twisted cable for connection to the 24-VDC external power supply.
Separate the controller cables from high-power lines such as a cable connecting to a power circuit. (Do
not bundle together the controller cables with high-power lines or place them in the same cable duct.)
When extending the supplied motor cable or encoder cable, consult IAI’s Technical Support.
(2) Noise sources and elimination
Among the numerous noise sources, solenoid valves, magnet switches and relays are of particular
concern when building a system. Noise from these sources can be eliminated by implementing the
measures specified below.

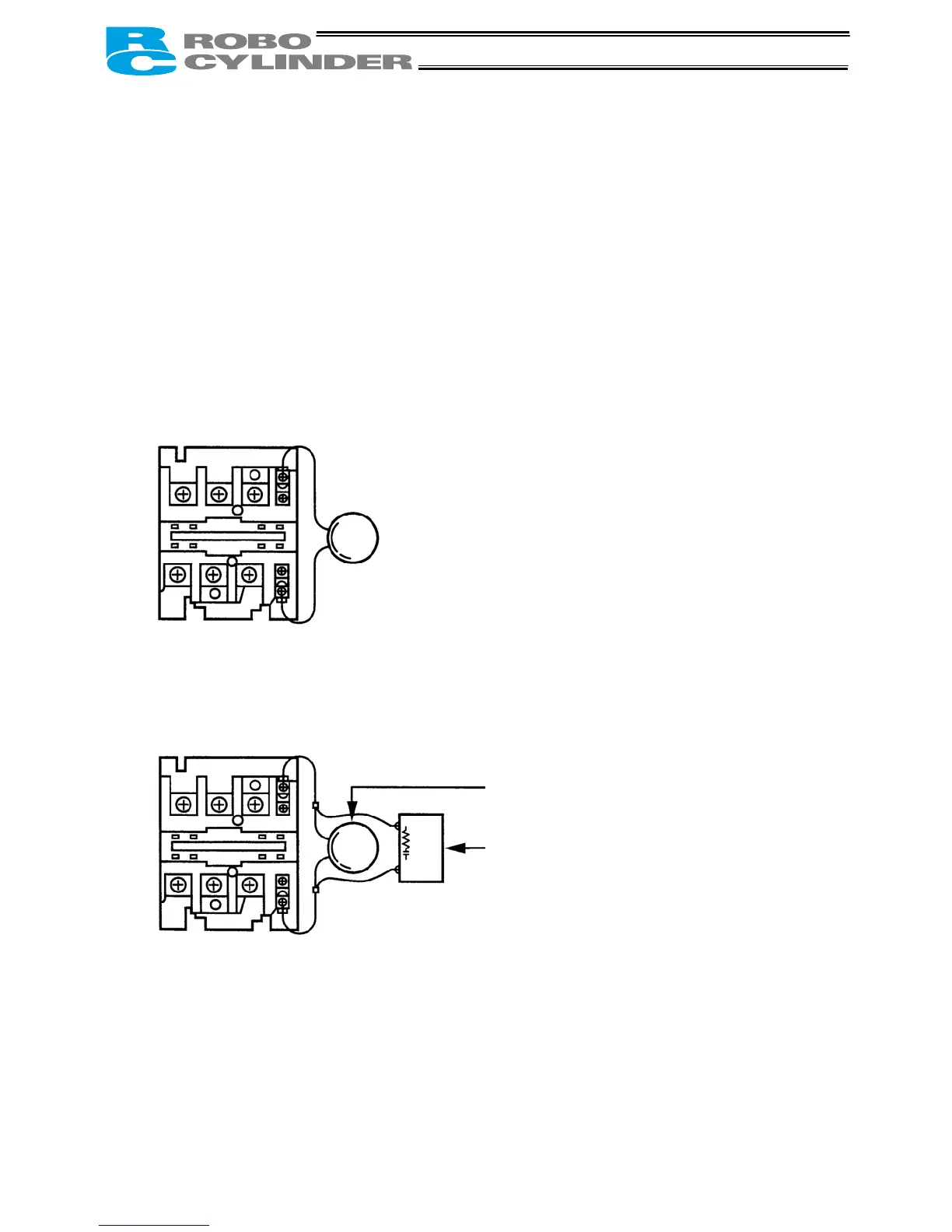

(a) AC solenoid valves, magnet switches and relays
Measure: Install a surge absorber in parallel with the coil.
The most effective method is to connect a surge absorber and a surge killer in parallel.
This way, noise will be eliminated in the entire range.
Å Point
Install a surge absorber to each coil over a minimum wiring length.
Installing a surge absorber to the terminal block or other part will
be less effective because of a longer distance from the coil.
Surge absorber
Surge killer (CR set)
To Next Page
