7.3 Home Return and Movement after Start (PIO Pattern = “0: [Conventional]”)
First, force the position complete signal to turn ON by referring to 7.1, “How to Start.”
If home return has not yet been executed immediately after the system start, issuing a start command by
specifying a position will cause the actuator to return to the home before moving to the specified position.
Example of use in operation) Home return is performed after the power ON, followed by positioning to the
position 150 mm from the home at a speed of 200 mm/sec.
Position-data table (Field(s) within thick line must be entered.)
No. Position Speed
Acceleration/
deceleration
Push Positioning band
Acceleration
only MAX
0 0 100 0.3 0 0.1 0
1 150 200 0.3 0 0.1 0
x
x
x
RCP2 controller
P
L
C
(5) (2)
(1)
(8)
(7) (3)
(6)
(9) (4)
PIO
Signal name
Start
Command position 1
Command position 2
Command position 4
Command position 8
*Pause
Reset
Servo ON
Completed position 1
Completed position 2
Completed position 4
Completed position 8
Position complete
Home return completion
Zone
*Alarm
Ready
Moving
Category
Input
Output
Reference flow
Power ON
Select/enter command position 1.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)

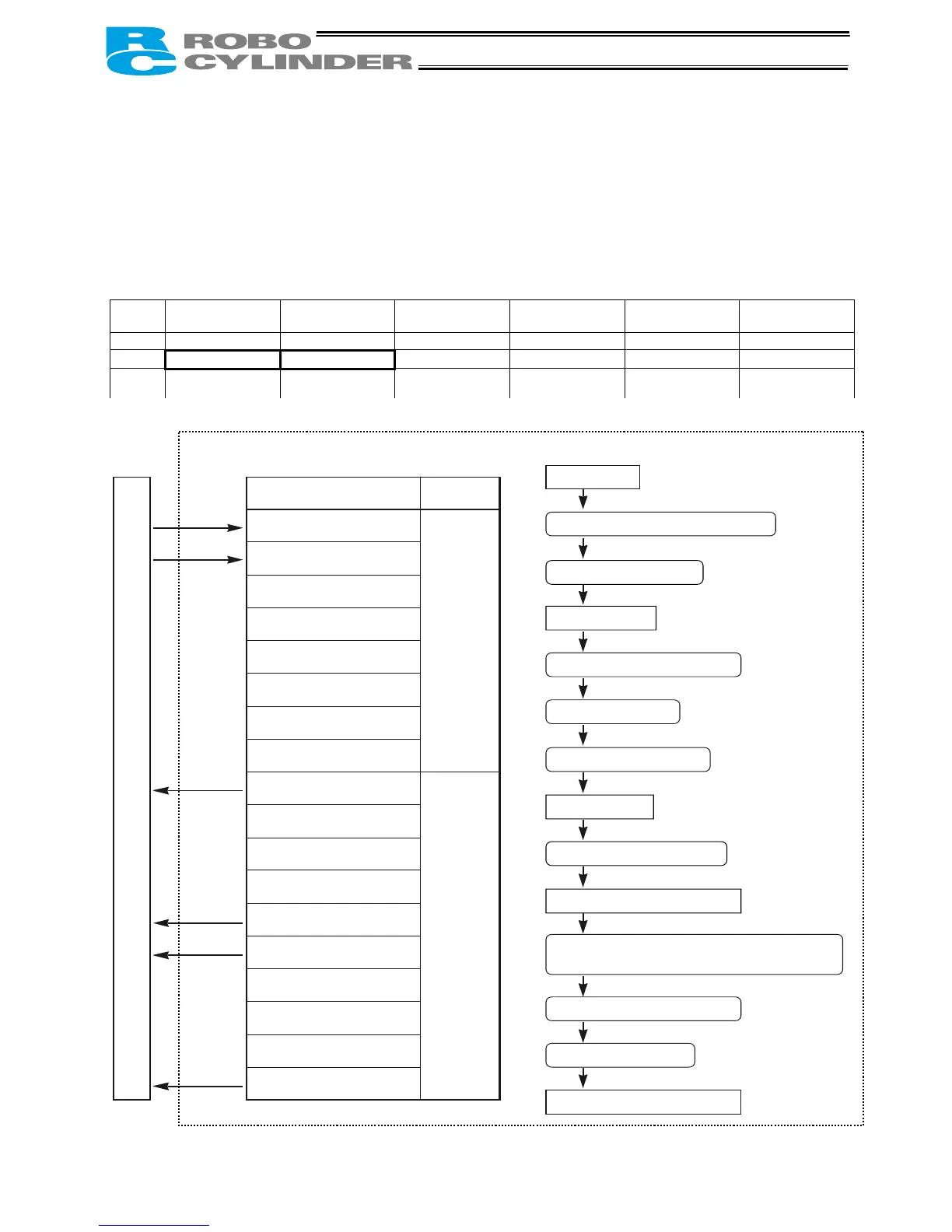

Start input ON
Home return starts
Position complete output OFF
Moving output ON
Start input OFF
Home return completes.
Home return completion output ON
Movement to position 1 starts.
Position complete output turns ON 0.1 mm
before position 1.
Completed position 1 is output.
Moving output OFF
Movement to position 1 completes.

IAI RCP2 Series Specifications

General

Control Output	Pulse Train
Power Supply Voltage	24 V DC
Storage Temperature	-10 to 60°C
Type	Controller
Control Method	Position Control
Communication Interface	RS-232C
Humidity	85% RH (non-condensing)
