40

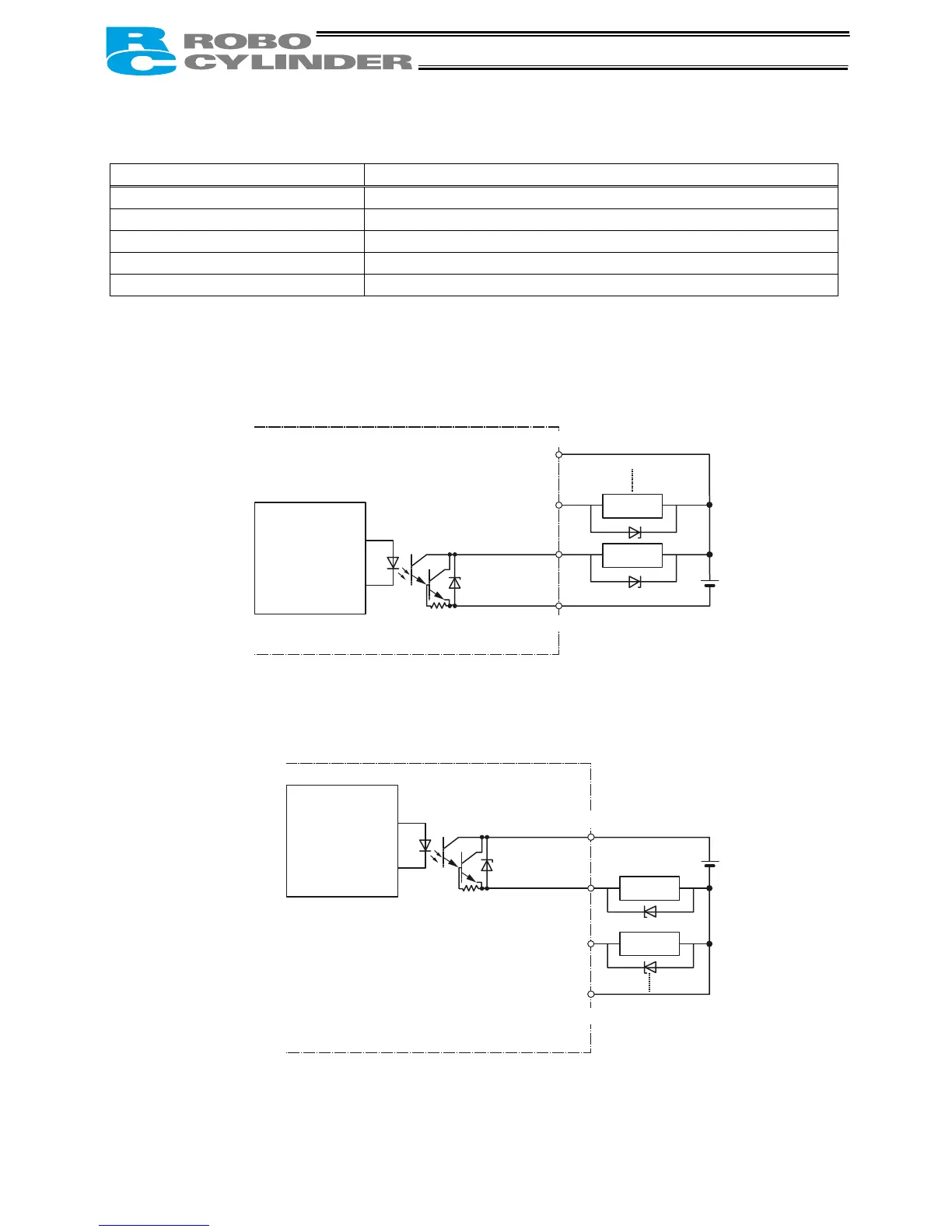

5.2.2 External Output Specifications
Item Specification
Number of input points 10 points
Rated load voltage 24 VDC
Maximum current 20 mA/point
Residual voltage 2V or less
Insulation method Photocoupler
Internal circuit configuration
[NPN specification]
[PNP specification]
N
P24V
N
P24V
Controller
External power
supply
+24V
Internal circuit
Each output
Load
Load
Controller
External power
supply
+24V
Internal circuit
Each output
Load
Load
