184
Chapter 5 Status Response Definition

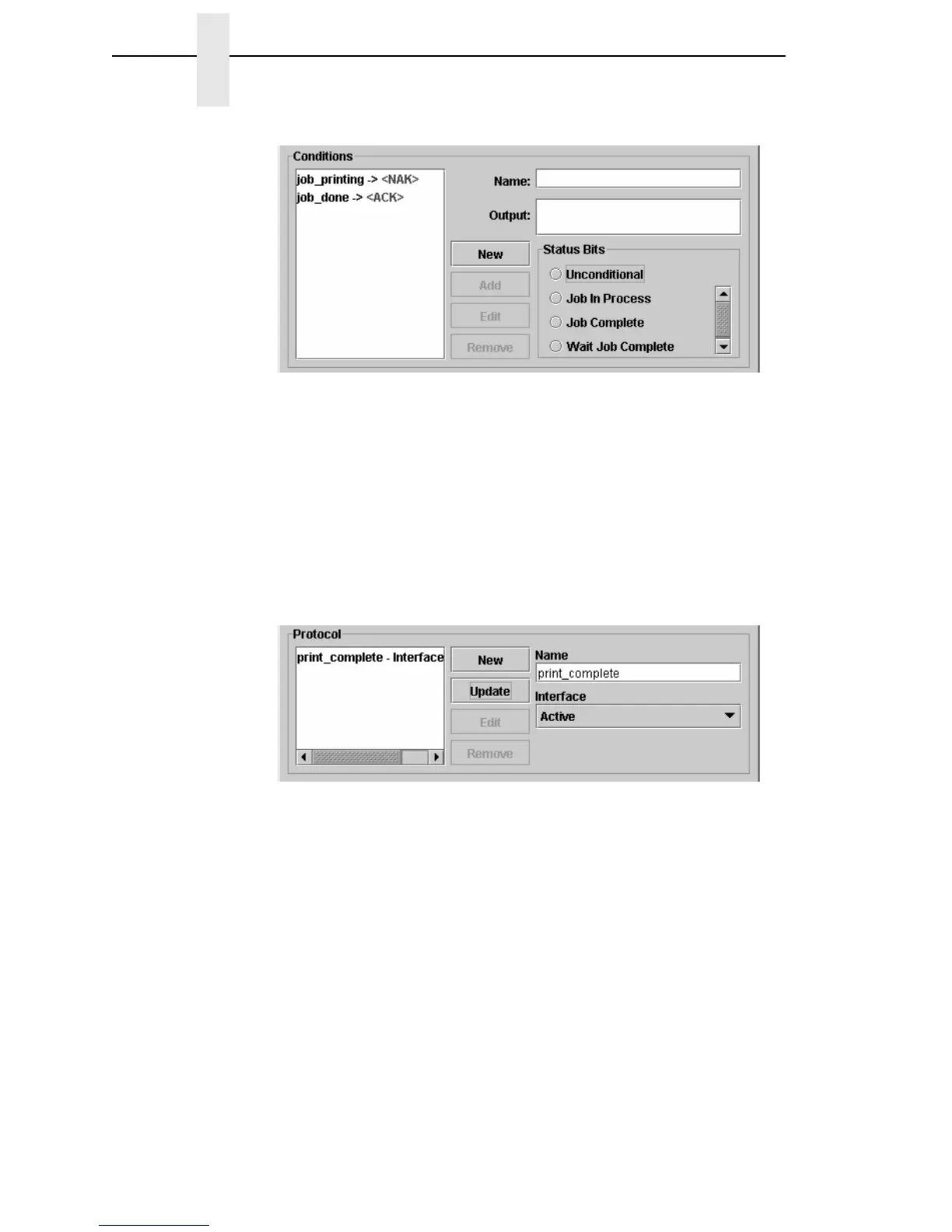

Figure 164. Adding Conditions
8. Click Add to add the entry to the list of protocol conditions. See
Figure 164.
9. Name this protocol that is comprised of the two conditions.
In the Name field (bottom half of window), type print_complete.
10. Select the interface to use for the status response.
Click the Interface down arrow, and select Active.
NOTE: The interface selected does not have to be the same interface the
host is using for a status request. The available interfaces are Active,
Serial, Parallel, and Network.
Figure 165. Adding Protocols
11. Click Add to add it to the list of protocols. See Figure 165.
12. Click OK to return to the CST manager.
NOTE: For the status reporting to work, the printer will have to be online.
Offline conditions, like all error situations, cannot be transmitted to the
host.
Now you will enter the input string that will trigger the protocol you just
created.
13. Click the Mode down arrow, and select Response.
14. In the Input field, press the down arrow key and type 05 (ENQ).
To Next Page
