Profiler View
103
Profiler View

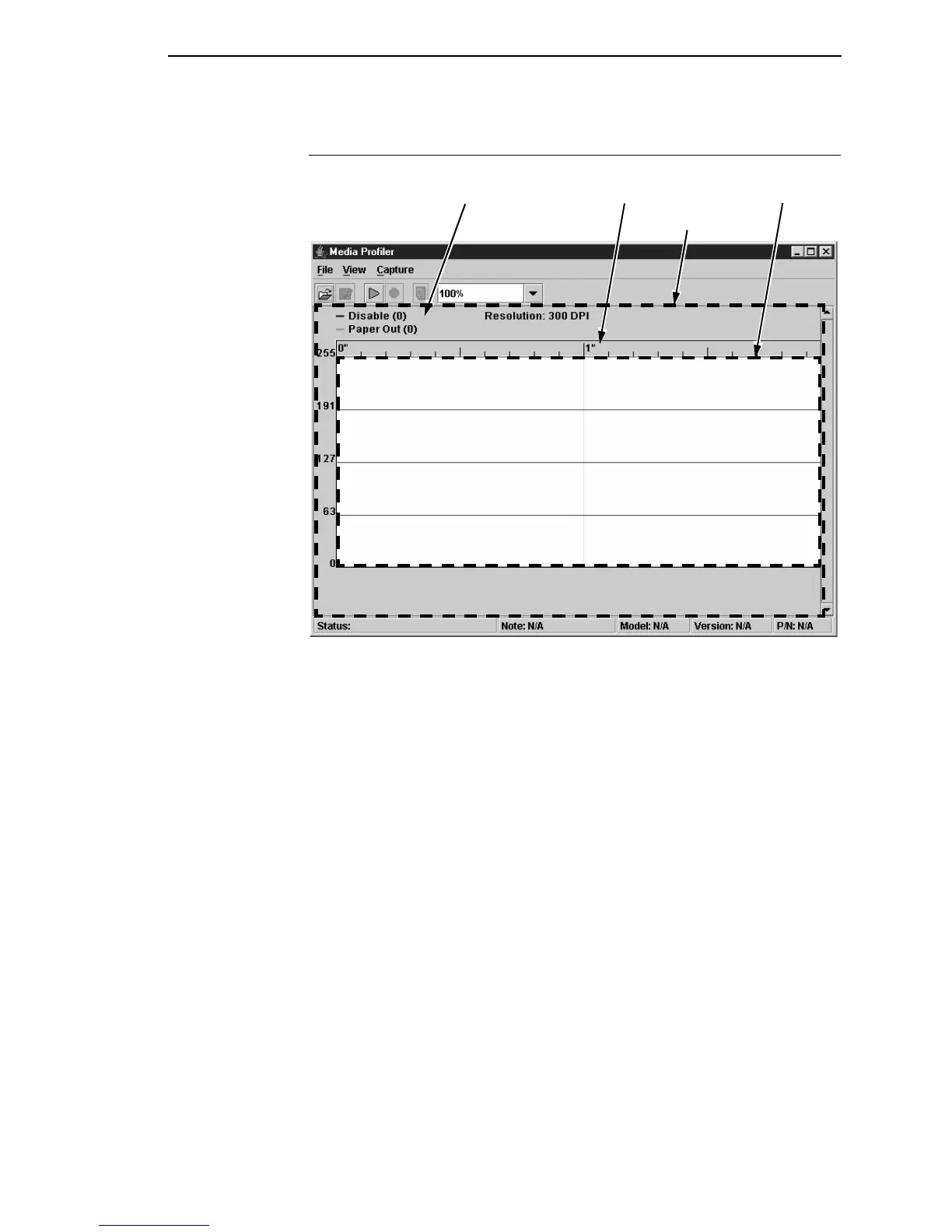

Figure 82. Profiler View
The center part of the Media Profiler window is the profiler view. The profiler
view is divided into three sections: the legend, ruler, and profile graphic.
See Figure 82.
Legend
The legend displays the current values for two thresholds: Sensor Type and
Paper Out. These values are set to zero by default since no threshold values
have been received. These values are updated when the capture starts.
Sensor Type can be one of the following: Disabled, Mark, Gap, Advanced
Gap, or Advanced Notch. By default it is set to Disabled. When dynamic
sensing is enabled on the printer, the value of Sensor Type is Dynamic.
The Ruler
The ruler displays the length of the captured profile in inches. The ruler has
small ticks every tenth of an inch, and a larger tick ever half inch. A resolution
of 300 DPI is used by default to determine the length. When the profile
capture starts the actual DPI will be retrieved from the printer and the ruler will
update to reflect the correct DPI.
Legend Ruler Profiler Graphic
