Define The Download Files
87
Define The Download Files
After you insert Download files, you must define them:
1. Double-click New Download File. The Define Download File dialog
box opens. See Figure 67.
2. Click Browse. The Open dialog box opens.

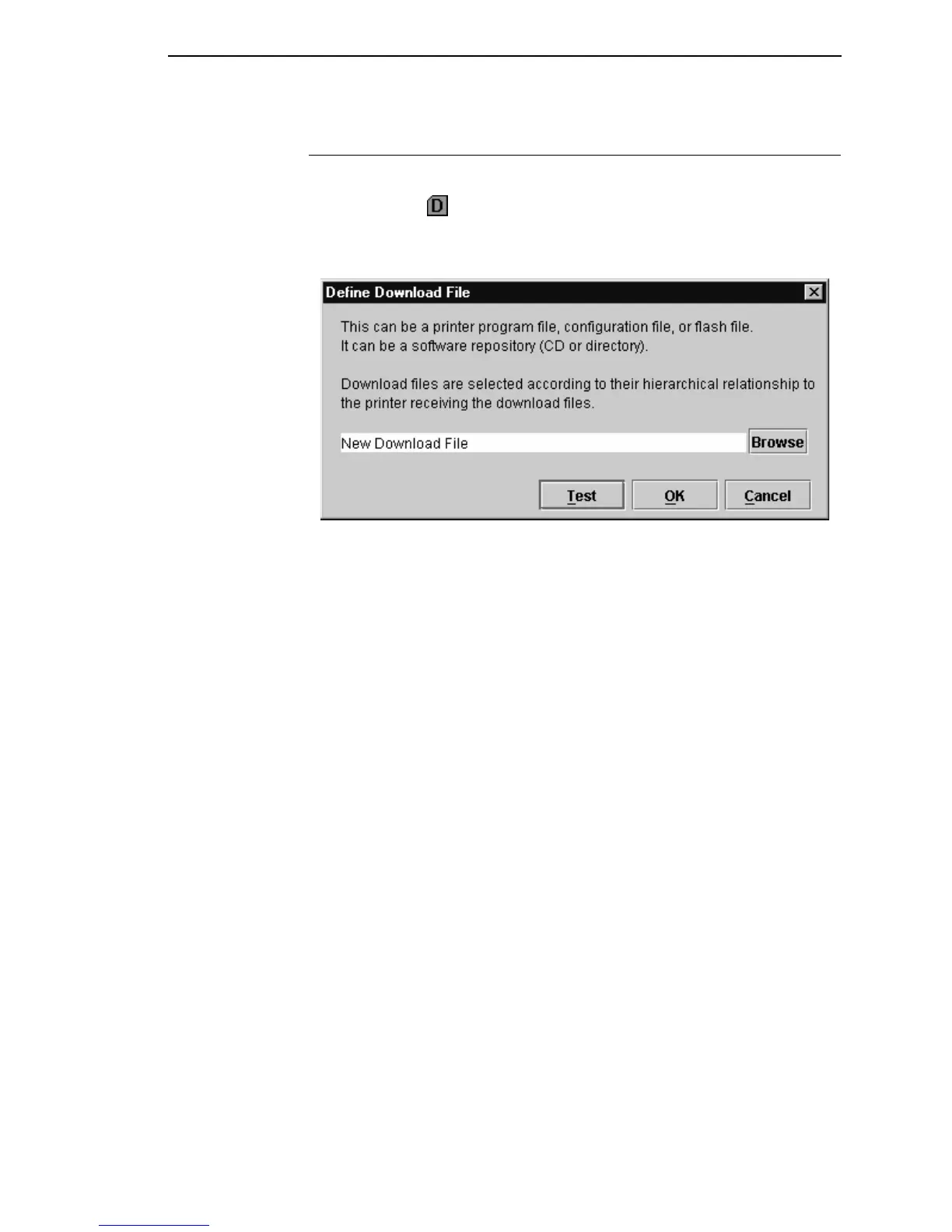

Figure 67. Define Download File
3. Navigate to a program (firmware), configuration, recovery file, or flash file,
select it, then click Open.
4. Since multiple file types can now be downloaded in one operation, a Test
button is provided to allow you to verify if the file type specified is
supported by the printer. Clicking the Test button causes the PMU to
evaluate the specified file and display the file type – this will help you
verify that you selected the correct file. Click OK if the file type returned is
correct, click Cancel to terminate, or click Browse to select another file.
5. When you are finished, click OK. The database displays the path and
name of the program, configuration, recovery, or flash file.
