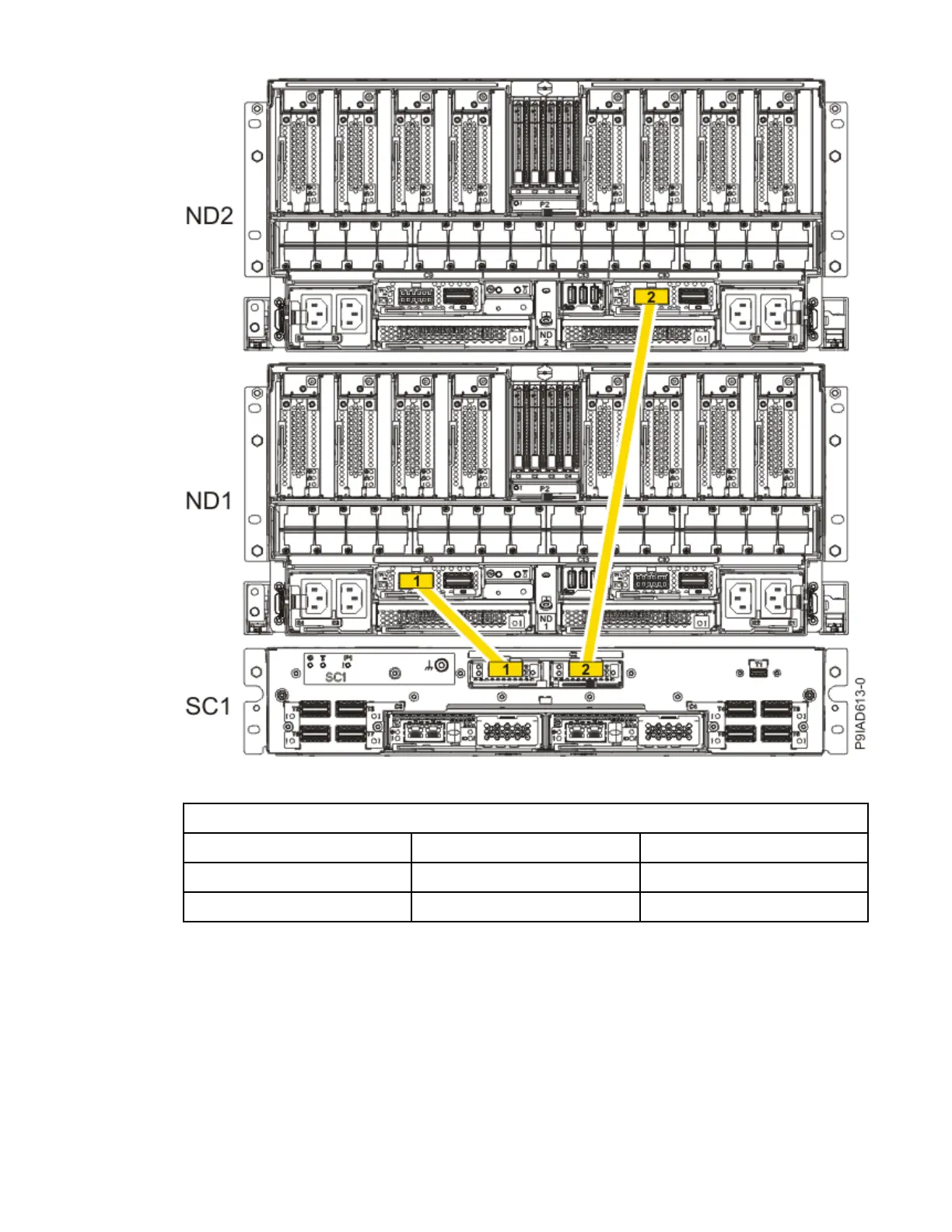

Figure 278. Two, Three, or Four Node Conîš³guration UPIC Cabling
Table 44. Two, Three, or Four Node
Conîš³guration UPIC Cabling
Cable From To
1 SC1: P1-C1-T1 ND1: P1-C9-T1
2 SC1: P1-C2-T1 ND2: P1-C10-T1
a) To replace the UPIC cable in the system node, complete the following steps:
1) Ensure that the white plastic lock is pulled back from the plug housing.
2) Plug the UPIC cable (A) into the previously identiîš³ed location in the system node by inserting
the cable into the connector until it locks into place, as shown in the following îš³gure.
326
Power Systems: Removing and replacing parts in the 9080-M9S system
