• If you have a single node system conguration, use Figure 277 on page 325 and Table 43 on page
325 to determine the point-to-point cabling for UPIC cables.

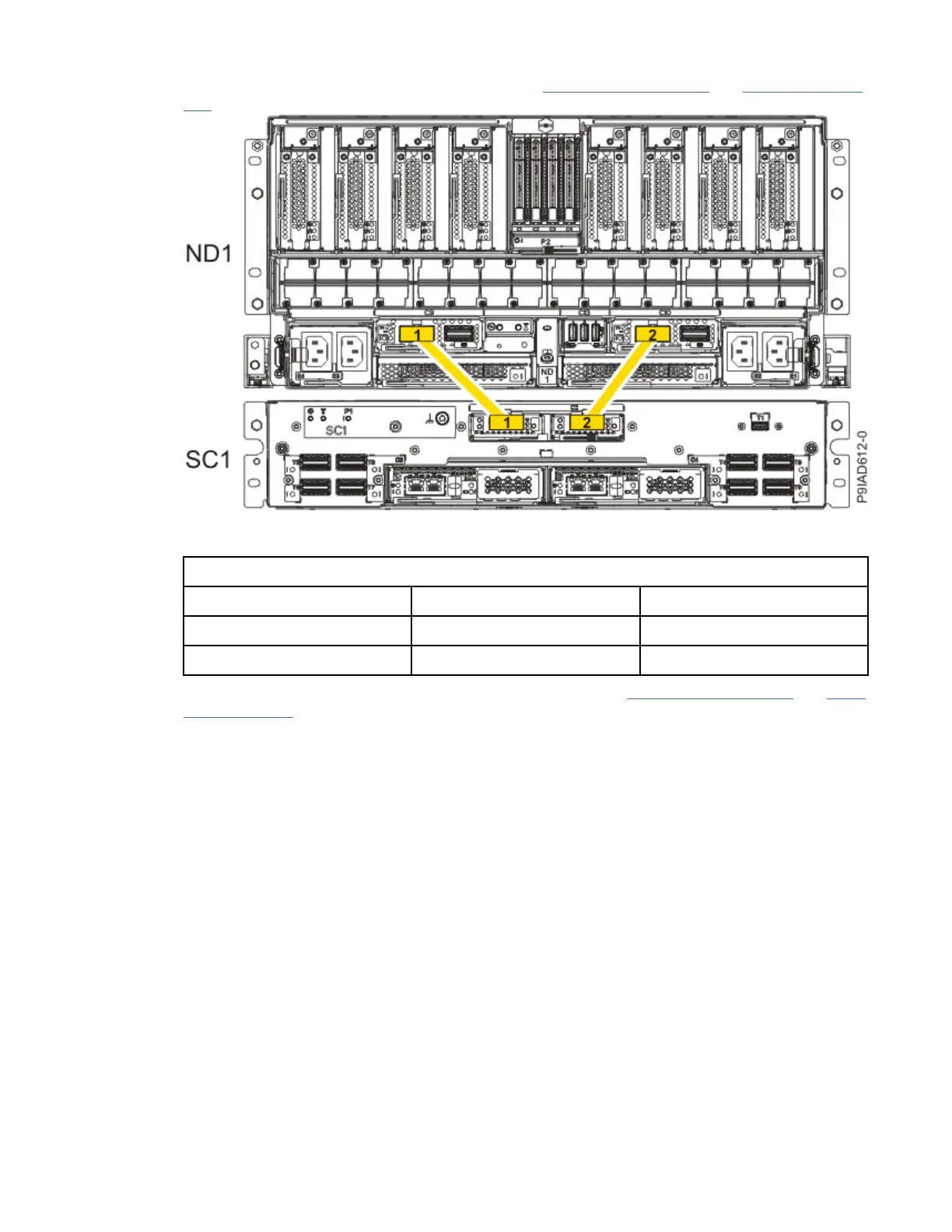

Figure 277. Single Node Conîš³guration UPIC Cabling
Table 43. Single Node
Conîš³guration UPIC Cabling
Cable number From To
1 SC1: P1-C1-T1 ND1: P1-C9-T1
2 SC1: P1-C2-T1 ND1: P1-C10-T1
• If you have a two, three, or four node system conguration, use Figure 278 on page 326 and Table
44 on page 326 to determine the point-to-point cabling for UPIC cables.
Miscellaneous VRMs
325
