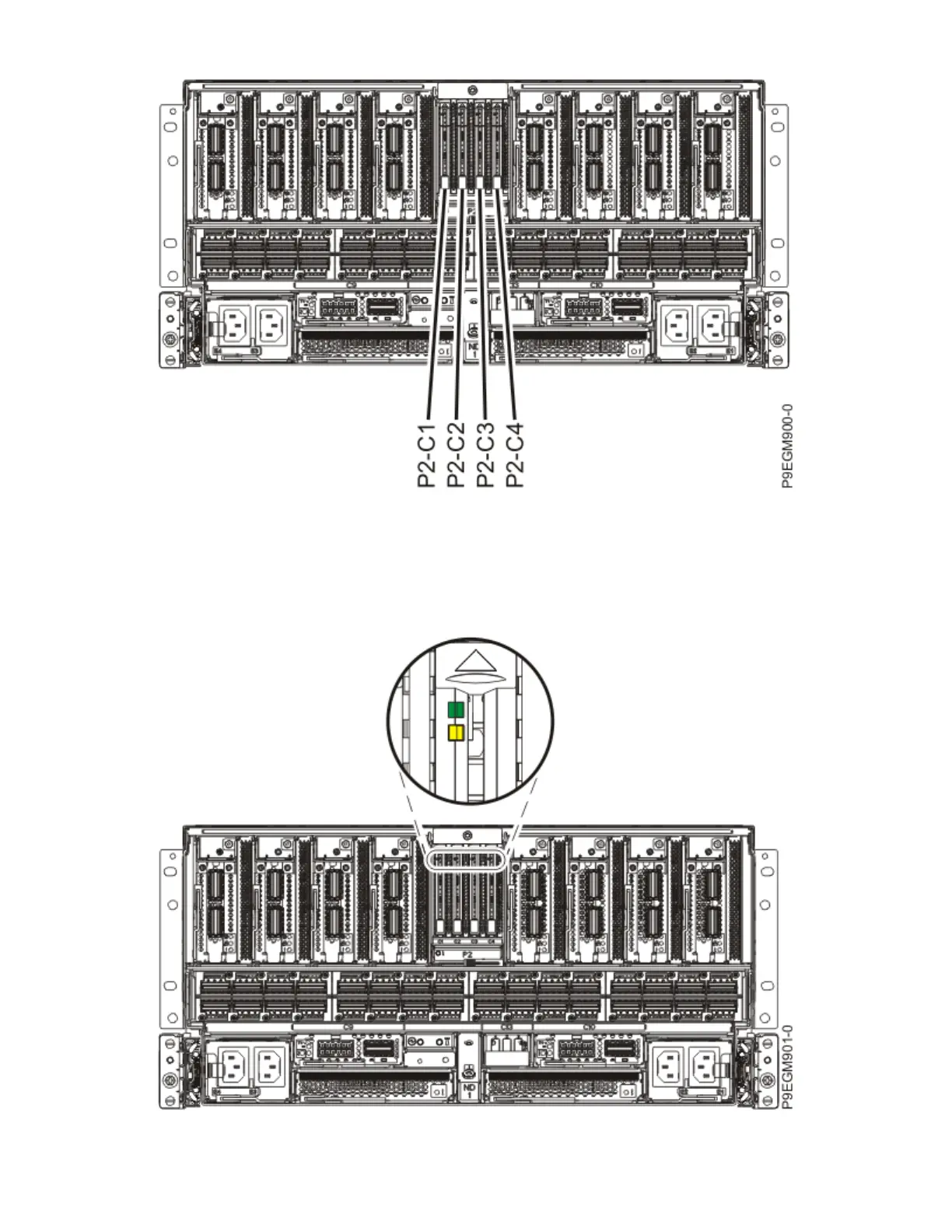

Figure 360. Location of the NVMe U.2 drives in the 9080-M9S system
3.
Review the NVMe U.2 drive LED locations.
The NVMe U.2 drive has two LEDs that indicate the following status:
•
A power/activity LED (green)
•
An error and identify function LED (amber).
Figure 361. Locations of the NVMe U.2 LEDs in the 9080-M9S system
418
Power Systems: Removing and replacing parts in the 9080-M9S system
423
425
Table of Contents
Section 1
3
Default Chapter
3
Table of Contents
3
Cables
7
Line Cord Conduit
7
Preparing the System
7
Removing a Line Cord Conduit
8
Replacing a Line Cord Conduit
12
Preparing the System for Operation
17
Service Processor (FSP) Cable
18
Preparing the System to Remove and Replace a Service Processor (FSP) Cable
18
Removing a Service Processor (FSP) Cable
22
Replacing a Service Processor (FSP) Cable
24
Preparing the System for Operation
27
SMP Cables
29
Preparing the System to Remove and Replace an SMP Cable
29
Removing an SMP Cable
32
Replacing an SMP Cable
34
Preparing the System for Operation
48
UPIC Cables
50
Preparing the System to Remove and Replace a UPIC Cable
50
Removing a UPIC Cable
53
Replacing a UPIC Cable
56
Preparing the System for Operation
61
USB Cable
62
Preparing the System to Remove and Replace a USB Cable
62
Removing a USB Cable
63
Replacing a USB Cable
65
Preparing the System for Operation
67
Clock and Control Card
71
Preparing the System to Remove and Replace a Clock and Control Card
71
Removing the Clock and Control Card from the 9080-M9S System
75
Replacing the Clock and Control Card in the 9080-M9S System
76
Preparing the System for Operation
77
Concurrent Maintenance Circuit Card
83
Removing the Concurrent Maintenance Circuit Card
83
Replacing the Concurrent Maintenance Circuit Card
84
Control Panel
87
Preparing the 9080-M9S System to Remove and Replace the Control Panel
87
Removing the Control Panel
87
Replacing the Control Panel
88
Preparing the System for Operation
90
Fans
93
System Control Unit
93
Preparing the 9080-M9S System Control Unit to Remove and Replace a Fan
93
Removing a Fan from the 9080-M9S System Control Unit
95
Replacing a Fan in the 9080-M9S System Control Unit
96
Preparing the 9080-M9S System Control Unit for Operation after Removing and Replacing a Fan
97
System Node
99
Preparing the 9080-M9S System Node to Remove and Replace a Fan
99
Removing a Fan from the 9080-M9S System Node
103
Replacing a Fan in the 9080-M9S System Node
104
Preparing the 9080-M9S System Node for Operation after Removing and Replacing a Fan
105
Memory Modules
109
Installing Memory Modules
109
Preparing the 9080-M9S System to Install Memory Modules
109
Installing Memory Modules in the 9080-M9S System
125
Preparing the 9080-M9S System for Operation after Installing a Memory Module
127
Removing and Replacing Memory Modules
155
Preparing the System to Remove and Replace a Memory Module
155
Removing a Memory Module from the 9080-M9S System
170
Replacing a Memory Module in the 9080-M9S System
171
Preparing the 9080-M9S System for Operation after Removing and Replacing a Memory Module
172
Permanently Removing Memory Modules
200
Preparing the 9080-M9S System to Permanently Remove Memory Modules
200
Permanently Removing Memory Modules from the 9080-M9S System
216
Preparing the 9080-M9S System for Operation after Permanently Removing a Memory Module
218
Memory Vrms
247
Preparing the System
247
Removing a Memory Voltage Regulator Module
263
Replacing a Memory Voltage Regulator Module
264
Preparing the System for Operation
265
Section 2
271
Default Chapter
272
Cable Type and Length from
272
1005 MM
273
Nd1-P1-T10
273
270 To Determine the Point-To-Point Cabling for SMP Cables
274
Nd1-P1-T15
274
Nd1-P1-T16
274
Nd1-P1-T17
274
Nd1-P1-T18
274
Nd1-P1-T25
274
Nd1-P1-T26
274
Nd2-P1-T15
274
Nd2-P1-T16
274
Nd2-P1-T17
274
Miscellaneous Vrms
295
Preparing the System
295
Removing a Miscellaneous a Voltage Regulator Module
311
Replacing a Miscellaneous a Voltage Regulator Module
312
Preparing the System for Operation
313
Preparing the System
341
Removing a Miscellaneous B Voltage Regulator Module
357
Replacing a Miscellaneous B Voltage Regulator Module
358
Preparing the System for Operation
359
Nvme Backplane
389
Preparing the System to Remove and Replace an Nvme Drive Backplane
389
Removing an Nvme Drive Backplane
394
Replacing an Nvme Drive Backplane
396
Preparing the System for Operation
398
Nvme Drives
405
Installing
405
Preparing the System
405
Installing an Nvme U.2 Drive
410
Preparing the System for Operation
411
Removing and Replacing
415
Preparing the System to Remove and Replace an Nvme U.2 Drive
415
Removing an Nvme U.2 Drive
418
Replacing an Nvme U.2 Drive
419
Preparing the System for Operation
420
Permanently Removing
423
Preparing the System to Permanently Remove an Nvme U.2 Drive
423
Permanently Removing an Nvme U.2 Drive from the System
428
Preparing the System for Operation
430
Pcie Adapters
435
Installing
435
Preparing the System
435
Installing an Adapter
442
Preparing the System for Operation
451
Removing and Replacing a Cassette
456
Preparing the System to Remove and Replace an Adapter Cassette
456
Removing a Pcie Adapter Cassette from the 9080-M9S System
459
Replacing a Pcie Adapter Cassette in the 9080-M9S System
468
Preparing the System for Operation after Removing and Replacing an Adapter Cassette
469
Rempving and Replacing an Adapter
472
Preparing the System to Remove and Replace an Adapter
472
Removing a Pcie Adapter from the 9080-M9S System
475
Replacing a Pcie Adapter in the 9080-M9S System
479
Preparing the System for Operation after Removing and Replacing an Adapter
483
Permanently Removing an Adapter
486
Preparing the System to Permanently Remove an Adapter
486
Permanently Removing a Pcie Adapter from the 9080-M9S System
489
Preparing the 9080-M9S System for Operation after Permanently Removing an Adapter
497
Power APSS and Trusted Platform Module Card
501
Removing the Power APSS and Trusted Platform Module Card
501
Replacing the Power APSS and Trusted Platform Module Card
502
Power Interface Card
505
Removing the Power Interface Card
505
Replacing the Power Interface Card
507
Power Supplies
511
Preparing the System
511
Removing a Power Supply
516
Replacing a Power Supply
518
Preparing the System for Operation
520
Processor VRM
525
Preparing the System
525
Removing a Processor Voltage Regulator Module
541
Replacing a Processor Voltage Regulator Module
542
Preparing the System for Operation
543
Service Processor Cards
573
System Control Unit
573
Preparing the System to Remove and Replace a Service Processor Card
573
Removing the Service Processor Card from the 9080-M9S System Control Unit
575
Replacing the Service Processor Card in the 9080-M9S System Control Unit
575
Preparing the 9080-M9S System Control Unit for Operation after Removing and Replacing a Service Processor Card
580
System Node
581
Preparing the System to Remove and Replace a Service Processor Interface Card
581
Removing the Service Processor Interface Card from the 9080-M9S System
585
Replacing the Service Processor Interface Card in the 9080-M9S System
586
Preparing the System for Operation
587
System Backplanes
593
System Control Unit
593
Removing the System Backplane
593
Replacing the System Backplane
594
System Node
595
Removing the System Backplane
595
Replacing the System Backplane
612
System Processor Module
635
Preparing the System to Remove and Replace a System Processor Module
635
Removing a System Processor Module from the 9080-M9S System
650
Replacing a System Processor Module in the 9080-M9S System
657
Preparing the 9080-M9S System for Operation after Removing and Replacing a System Processor Module
670
Time-Of-Day Battery
697
Preparing the 9080-M9S System to Remove and Replace a Time-Of-Day Battery
697
Removing the Time-Of-Day Battery
698
Replacing the Time-Of-Day Battery
700
Preparing the System for Operation
702
USB Card
705
Removing and Replacing
705
Preparing the System
705
Removing the USB Card from the 9080-M9S System
708
Replacing the USB Card in the 9080-M9S System
709
Preparing the System for Operation
710
Installing
712
Preparing the System
712
Installing the USB Card in the 9080-M9S System
713
Preparing the System for Operation
714
Permanently Removing
717
Preparing the System
717
Permanently Removing the USB Card from the 9080-M9S System
720
Preparing the System for Operation
721
VPD Card
723
Preparing the System
723
Removing the Vital Product Data Card
724
Replacing the Vital Product Data Card
725
Preparing the System Control Unit for Operation
726
