4. To prepare the system to permanently remove an NVMe drive when the system is powered off,
complete the following steps:
a) Activate the identify function. For instructions, see Identifying a part (www.ibm.com/support/
knowledgecenter/POWER9/p9haj/sal.htm).
b) Physically verify that the slot you identiîš³ed is where you want to permanently remove the NVMe
U.2 drive.
• Use the blue identify LED on the enclosure to locate the system. Ensure that the serial number of
the system matches the serial number to be serviced.
• Look for a flashing amber LED, which identies the slot that was selected by using the identify
function.
c) Stop the system. For instructions, see Stopping a system (www.ibm.com/support/
knowledgecenter/POWER9/p9haj/crustopsys.htm).
5. If you chose to complete this repair with the power off, label and disconnect both UPIC cables from
the system control unit.
UPIC cable locations are P1-C1-T1 and P1-C2-T1.
a. Remove the white plastic lock (A) from the plug housing.

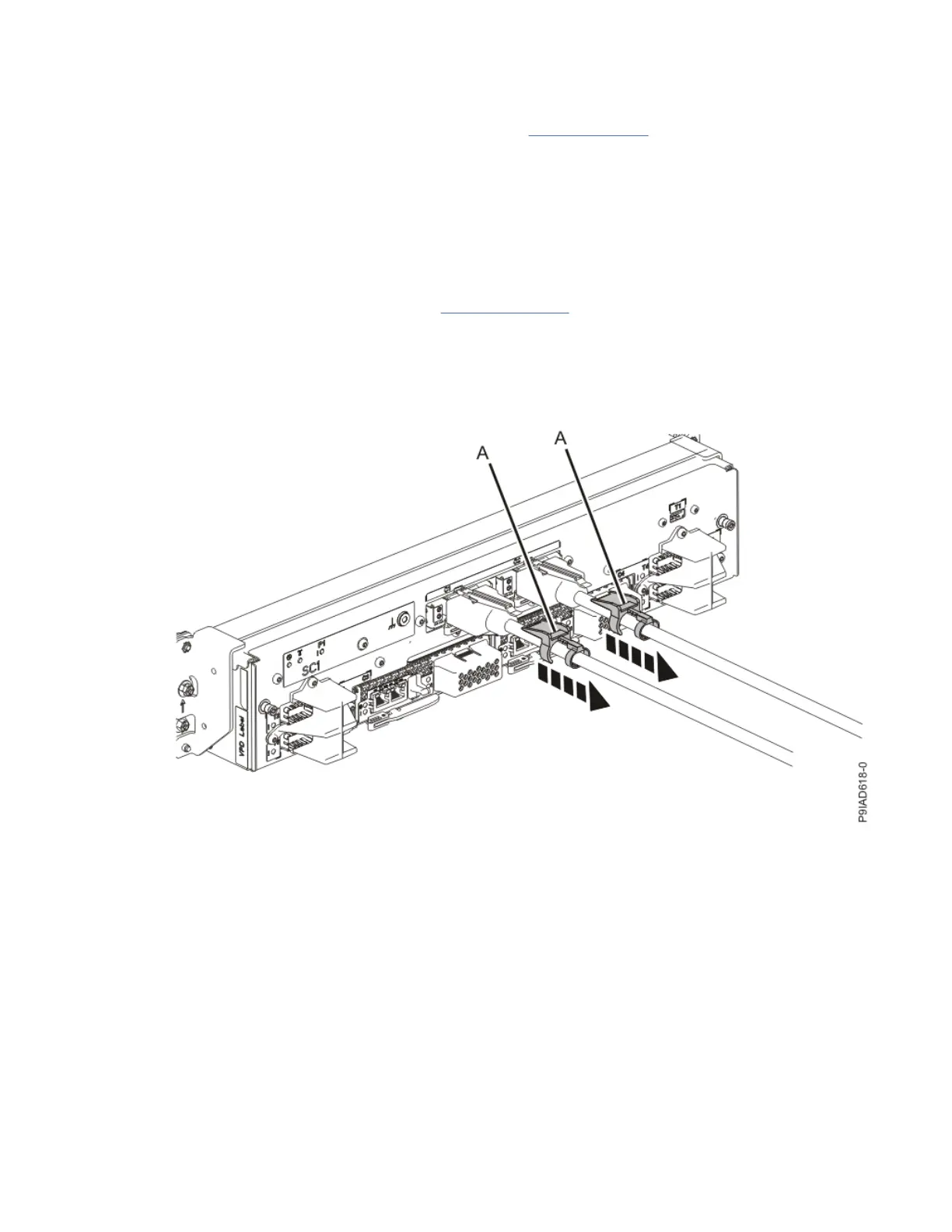

Figure 362. Removing the UPIC cable lock
b. Push down on the blue cable latch (B) and pull out the UPIC cable from the system control unit.
NVMe drives
419
