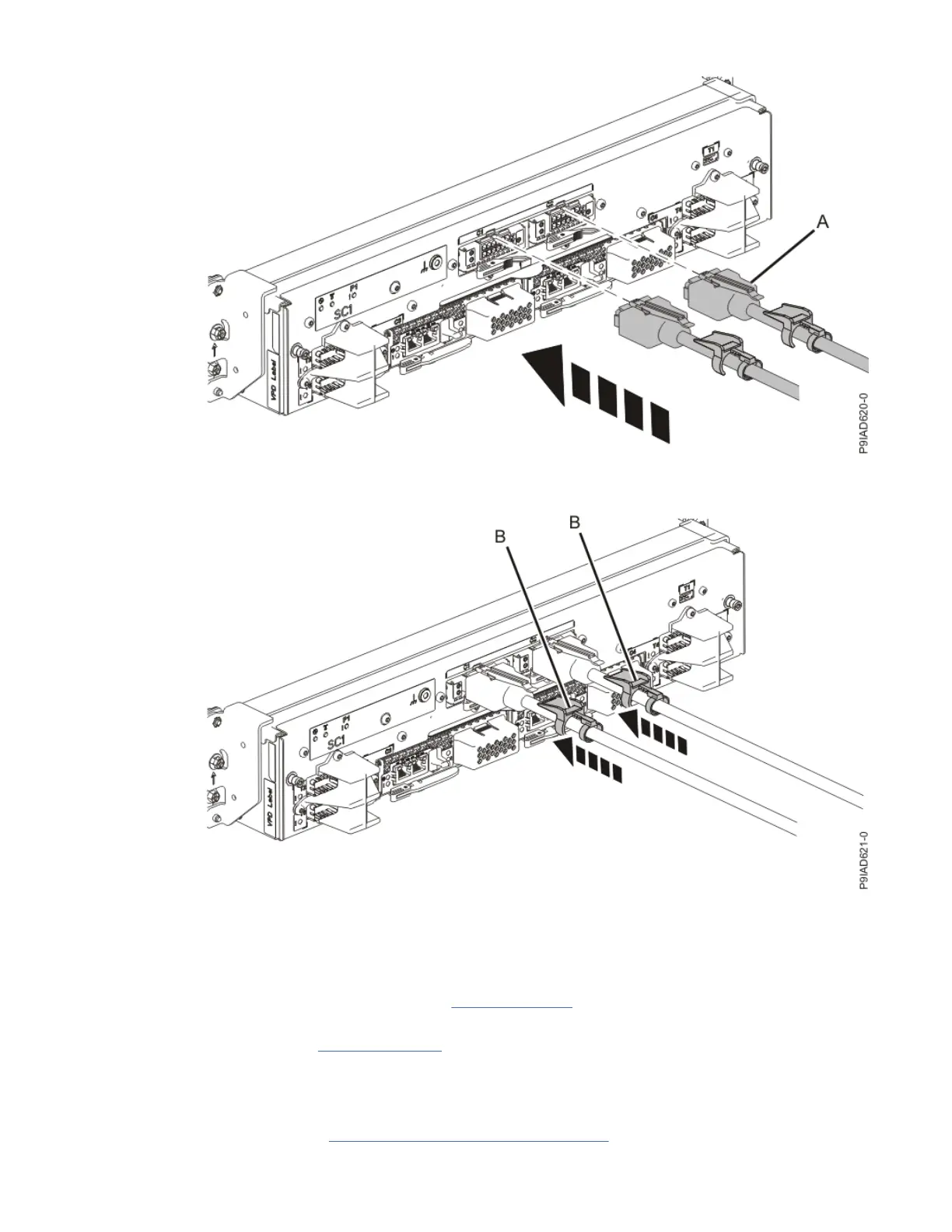

Figure 385. Replacing the UPIC cable into the system control unit
3) Push the white plastic lock (B) onto the plug housing.
Figure 386. Replacing the UPIC cable into the system control unit
4) Lightly pull on the UPIC cable from both attachment points to ensure it is locked into place.
Pull the cable connector; do not pull on the wire. The cables should be rmly attached to the
system.
b) Start the system. For instructions, see Starting a system (www.ibm.com/support/
knowledgecenter/POWER9/p9haj/crustartsys.htm).
c) Continue with step “18” on page 449.
12. If you are using the AIX operating system, you must congure the adapter by completing the
following steps:
a) Install the AIX device drivers for the installed adapter.
For instructions, see Installing the AIX device driver software.
448
Power Systems: Removing and replacing parts in the 9080-M9S system
