7914Admin_Logical.fm Draft Document for Review March 28, 2011 12:24 pm
242 IBM System Storage DS3500: Introduction and Implementation Guide
and is available to any host zoned to the DS3500 Storage Subsystem, so it is not the
recommended choice.

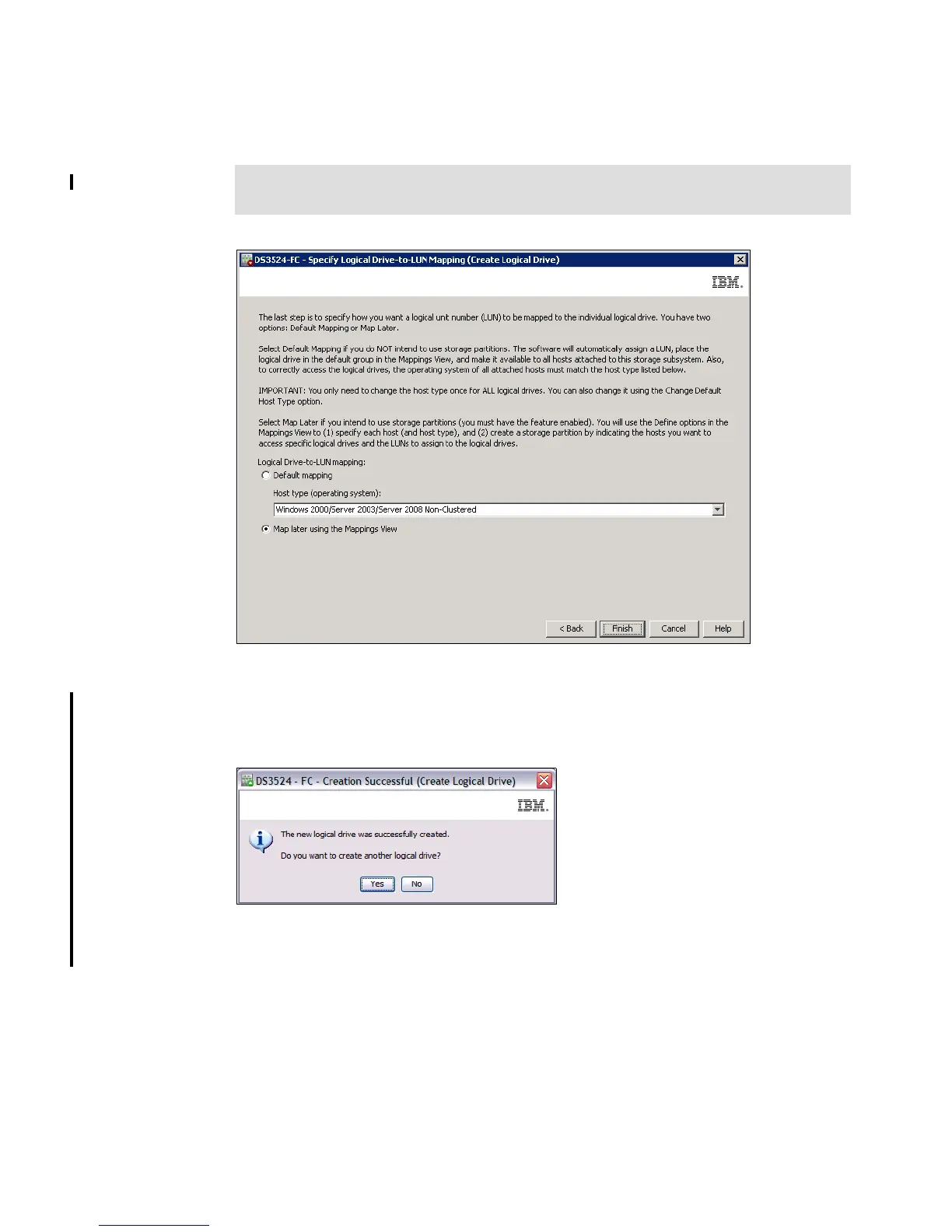

Figure 9-20 New Logical Drive mapping
6. Click Finish and the Creation Successful window opens as shown in Figure 9-21. You are
prompted with option to create another logical drive. Click No if you have finished creating
logical drives or want to continue at a later time.
Figure 9-21 Create logical drive - Creation Successful
7. The Completed window opens as shown in Figure 9-22 on page 243. Click OK to finish.
Important: Manually mapping logical drives to hosts prevents unwanted mapping and
is always the recommended choice.
