CAUTION:
Never remove the cover on a power supply or any part that has the following
label attached.
Hazardous voltage, current, and energy levels are present inside any component
that has this label attached. There are no serviceable parts inside these
components. If you suspect a with one of these parts, contact a service
technician.

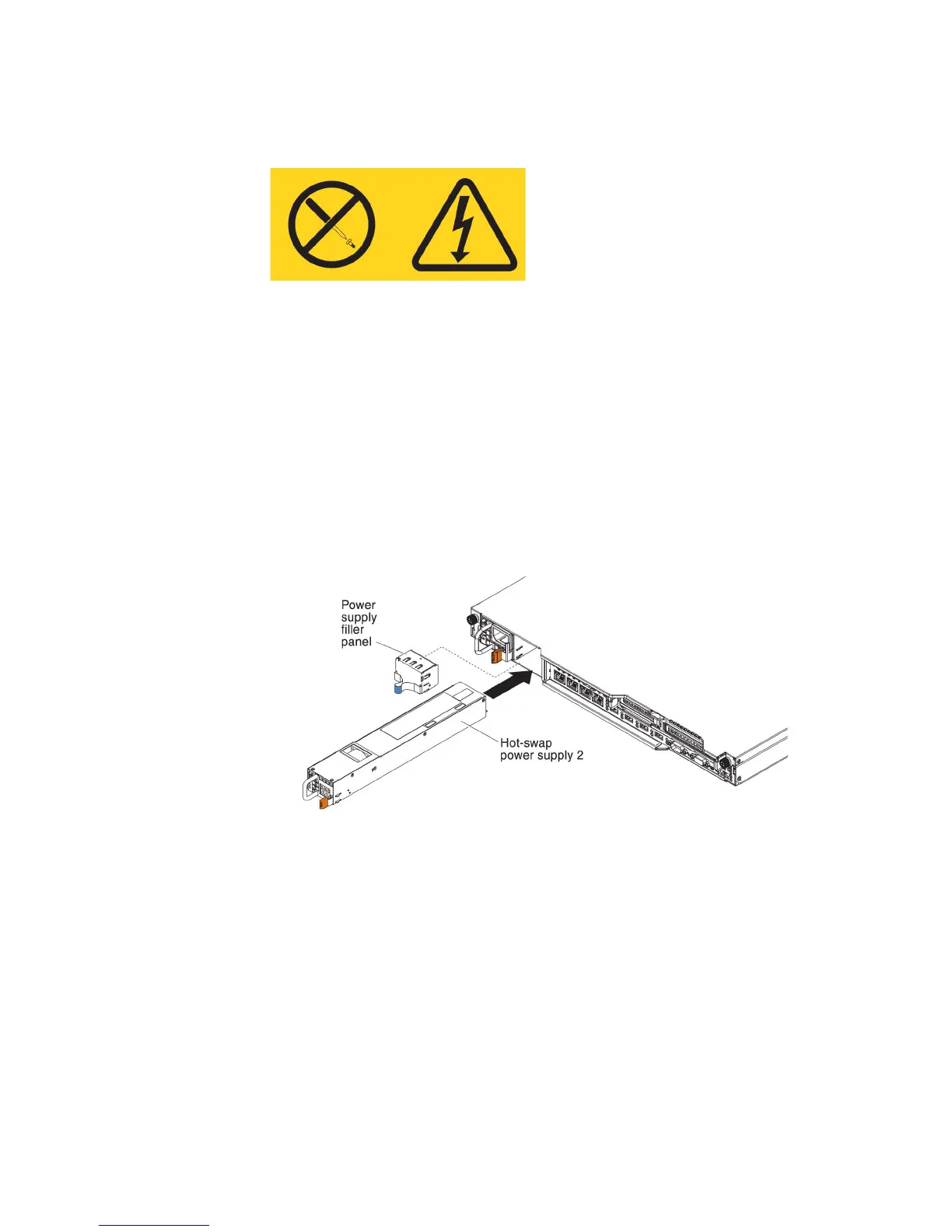

To install a hot-swap power supply, complete the following steps:
1. Read the safety information that begins on page Safety and “Installation
guidelines” on page 30.
2. Touch the static-protective package that contains the hot-swap power supply
to any unpainted metal surface on the server; then, remove the power supply
from the package and place it on a static-protective surface.
3. If you are installing a hot-swap power supply into an empty bay, remove the
power-supply filler panel from the power-supply bay.
4. Grasp the handle on the rear of the power supply with the gold contact ; then,
slide the power supply forward into the power-supply bay until it clicks.
Make sure that the power supply connects firmly into the power-supply
connector.
5. Route the power cord through the cable retainer clip on the rear of the server
so that it does not accidentally become unplugged.
6. Connect the power cord for the new power supply to the power-cord
connector on the power supply.
7. Connect the other end of the power cord to a properly grounded electrical
outlet.
8. Make sure that the ac power LED and the dc power LED on the power
supply are lit, indicating that the power supply is operating correctly. The two
green LEDs are to the right of the power-cord connector.
9. If you are replacing a power supply with one of a different wattage in the
server, apply the new power information label provided over the existing
power information label on the server. Power supplies in the server must be
Chapter 2. Installing optional devices 57
