b. Align the installation tool with the screws, as shown in the following
graphic, and lower the installation tool on the microprocessor. The
installation tool rests flush on the socket only when it is aligned correctly.
c. Using the following instructions for your installation tool to remove the
microprocessor.
v When using the installation tool, gently twist the handle of the
installation tool clockwise until it locks in the “H” or “L” position,
depending on the size of microprocessor, and then lift the
microprocessor out of the socket.
Installation tool
Alignment
pins
Microprocessor

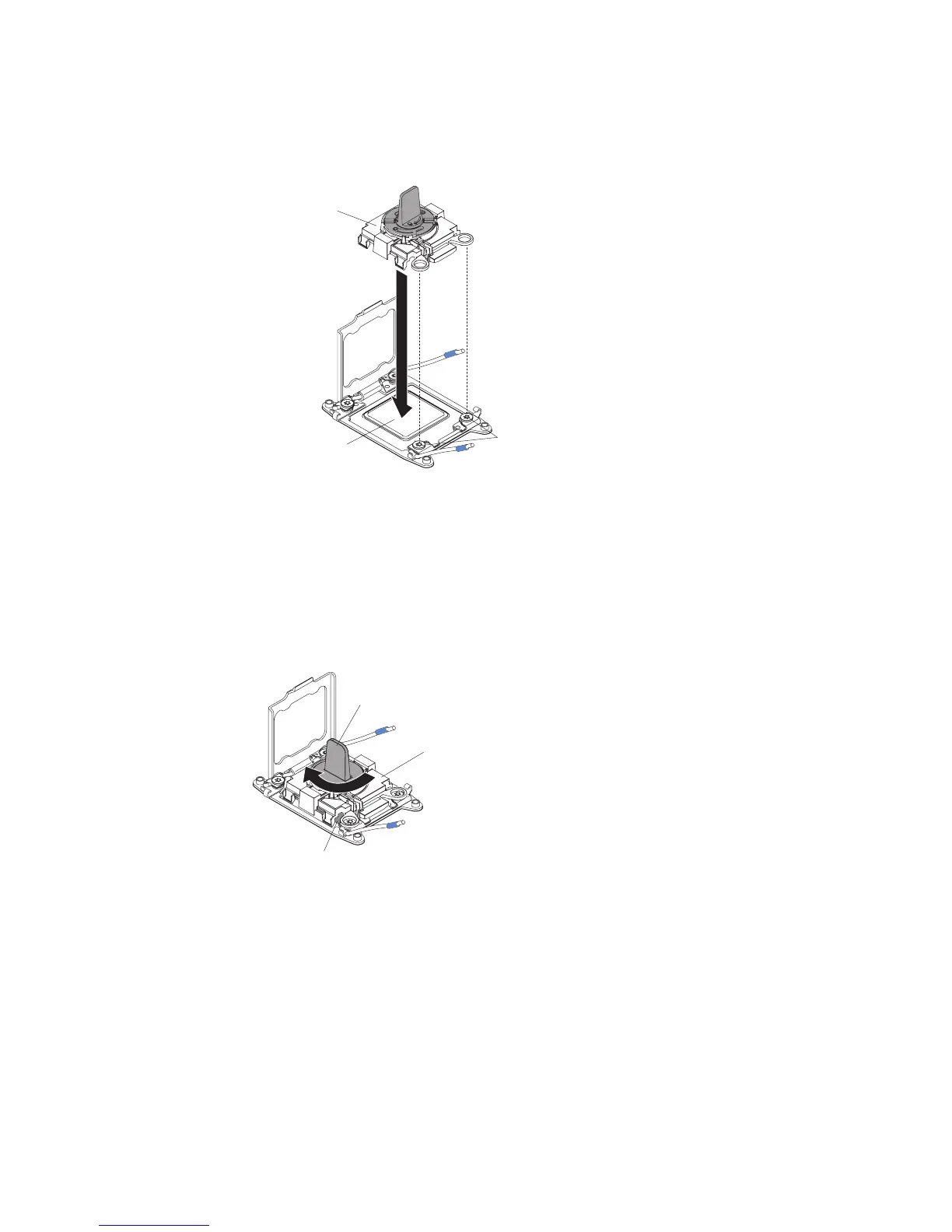

Figure 178. Installation tool alignment
Handle
Microprocessor
Installation tool
Figure 179. Installation tool handle adjustment
250 IBM System x3550 M5 Type 5463: Installation and Service Guide
