5. Turn the supply reel (4) clockwise, allowing the moistened tape to adhere to the hub as it winds

around the supply reel (inside the cartridge).

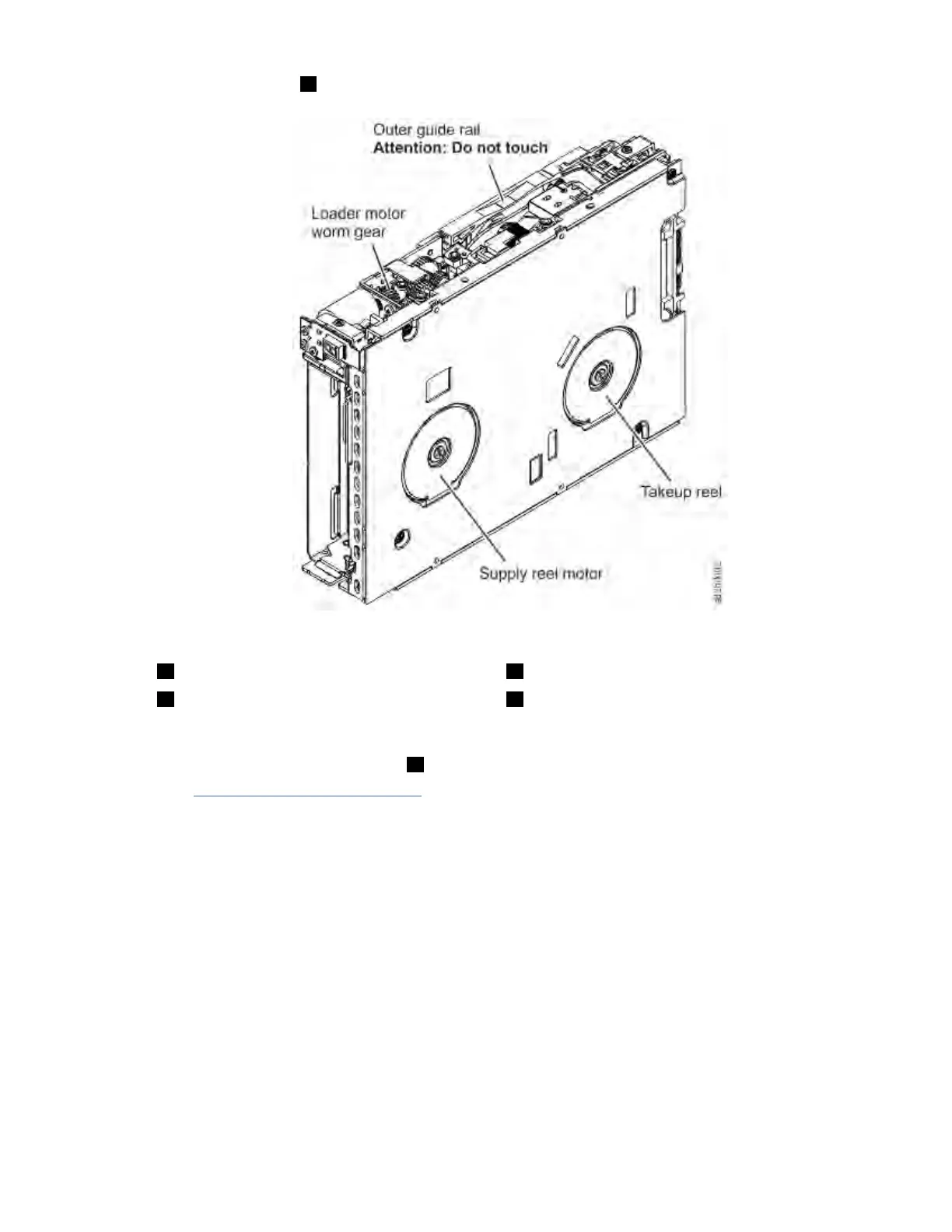

Figure 115. Rewinding tape into cartridge

1 Loader motor worm gear 3 Takeup reel motor

2 Outer guide rail (WARNING: Do

Not Touch)

4 Supply reel motor

6. Continue spooling into the cartridge until the tape is taut and remains within the flanges of the tape

guiding rollers. Turn the supply reel (4) 10 more turns. Ensure that you do not stretch the tape.

7. Go to “Ending procedure” on page 245.

IBM Condential

Appendix I. Manual cartridge removal procedure229
